Quick start

Main classes

The minimum requirement is to implement two classes, one for the service declaration and one for the implementation itself.

Hello world

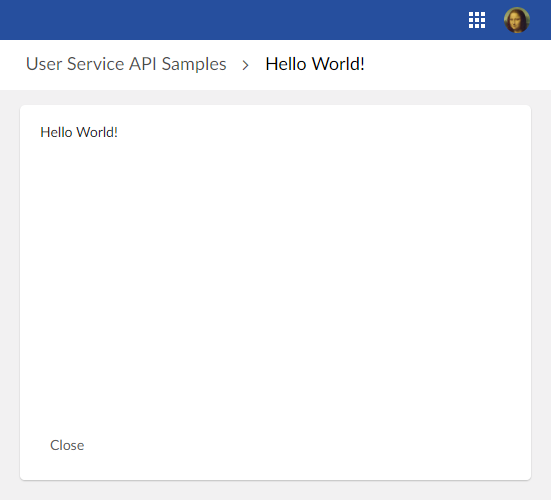

The sample is a dataset user service that simply displays a "hello" message, it can be launched from the action menu of a dataset:

/user_service_hello_world.png

The service implementation class must implement the interface UserService<DatasetEntitySelection>:

/**
 * This service displays hello world!
 */
public class HelloWordService implements UserService<DatasetEntitySelection>
{
    public HelloWordService()
    {
    }

    @Override
    public void setupDisplay(
        UserServiceSetupDisplayContext<DatasetEntitySelection> aContext,
        UserServiceDisplayConfigurator aConfigurator)
    {
        // Set bottom bar
        UIButtonSpecNavigation closeButton = aConfigurator.newCloseButton();
        closeButton.setDefaultButton(true);
        aConfigurator.setLeftButtons(closeButton);

        // Set content callback
        aConfigurator.setContent(this::writeHelloWorld);
    }

    private void writeHelloWorld(
        UserServicePaneContext aPaneContext,
        UserServicePaneWriter aWriter)
    {
        // Display Hello World!

        aWriter.add("<div ");
        aWriter.addSafeAttribute("class", UICSSClasses.CONTAINER_WITH_TEXT_PADDING);
        aWriter.add(">");
        aWriter.add("Hello World!");
        aWriter.add("</div>");
    }

    @Override
    public void setupObjectContext(
        UserServiceSetupObjectContext<DatasetEntitySelection> aContext,
        UserServiceObjectContextBuilder aBuilder)
    {
        // No context yet.
    }

    @Override
    public void validate(UserServiceValidateContext<DatasetEntitySelection> aContext)
    {
        // No custom validation is necessary.
    }

    @Override
    public UserServiceEventOutcome processEventOutcome(
        UserServiceProcessEventOutcomeContext<DatasetEntitySelection> aContext,
        UserServiceEventOutcome anEventOutcome)
    {
        // By default do not modify the outcome.
        return anEventOutcome;
    }
}

The declaration class must implement the interface UserServiceDeclaration.OnDataset:

/**
 * Declaration for service hello world!
 */
public class HelloWorldServiceDeclaration implements UserServiceDeclaration.OnDataset
{
    // The service key identifies the user service.
    private static final ServiceKey serviceKey = ServiceKey.forName("HelloWorld");

    public HelloWorldServiceDeclaration()
    {
    }

    @Override
    public ServiceKey getServiceKey()
    {
        return serviceKey;
    }

    @Override
    public UserService<DatasetEntitySelection> createUserService()
    {
        // Creates an instance of the user service.
        return new HelloWordService();
    }

    @Override
    public void defineActivation(ActivationContextOnDataset aContext)
    {
        // The service is activated for all datasets instanciated with
        // the associated data model (see next example).
    }

    @Override
    public void defineProperties(UserServicePropertiesDefinitionContext aContext)
    {
        // This label is displayed in menus that can execute the user service.
        aContext.setLabel("Hello World Service");
    }

    @Override
    public void declareWebComponent(WebComponentDeclarationContext aContext)
    {
    }
}

In this sample, the user service is registered by a data model. The data model needs to define a schema extension that implements the following code:

public class CustomSchemaExtensions implements SchemaExtensions
{
    @Override
    public void defineExtensions(SchemaExtensionsContext aContext)
    {
        // Register the service.
        aContext.registerUserService(new HelloWorldServiceDeclaration());
    }
}

For details on the declaration of schema extensions, see SchemaExtensions.
