Instrumentation Page
The Instrumentation page displays the instrumentation statistics of flows and triggers.
Select an instance ID from the instance ID list in the upper-left corner of the page. The instrumentation statistics of flows and triggers are displayed on the Flow tab and Triggers tab.

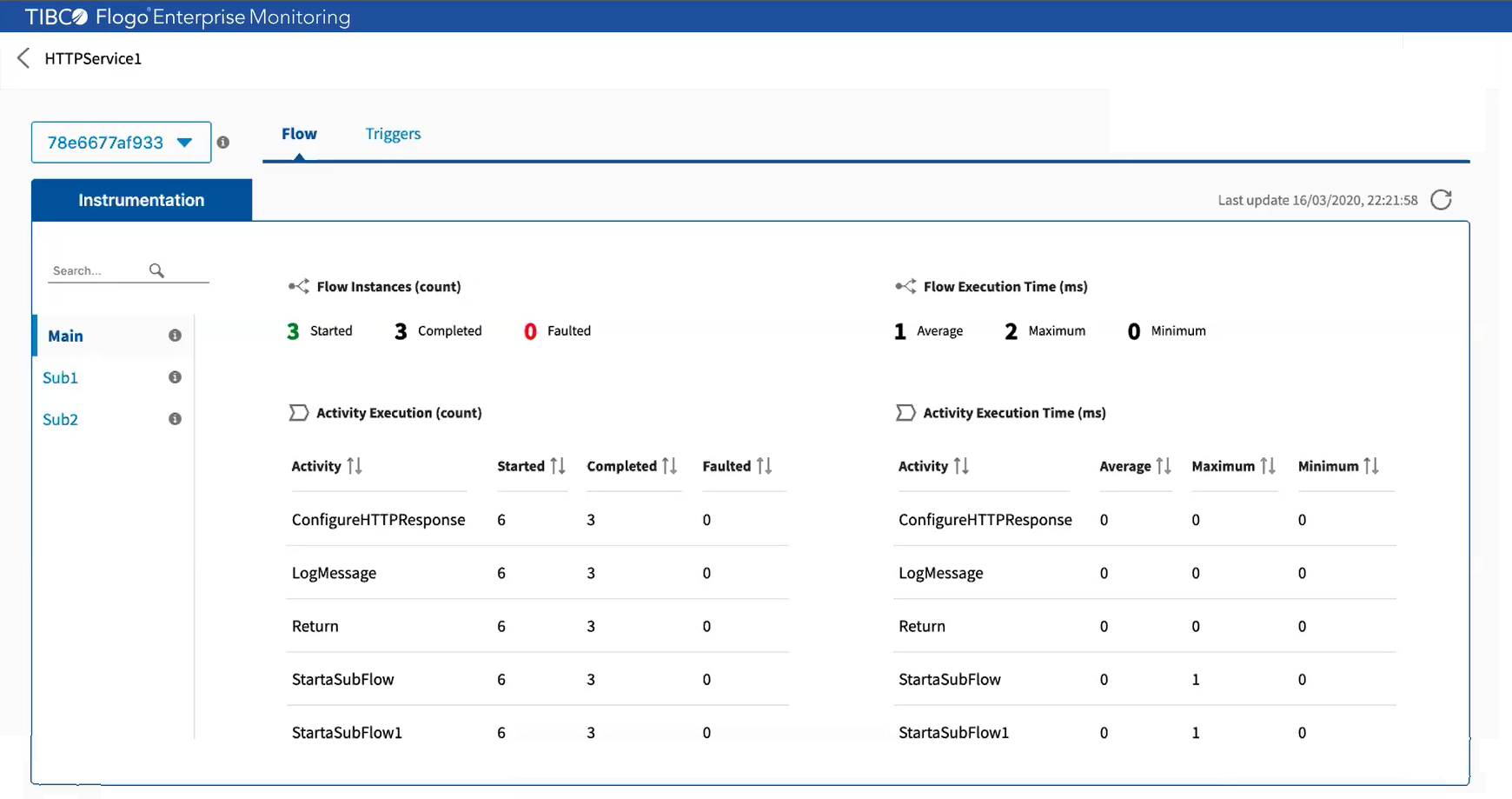

Flow Tab
Select a flow from the list on the left to see its details. You can also search for a flow in the list.
The following information is displayed in the work area on the right:
| Name | Description |
|---|---|
| Flow Instances (count) | |
| Started | Total number of flow instances started |
| Completed | Total number of flow instances completed |
| Faulted | Total number of flow instances failed |
| Flow Execution Time (in milliseconds) | |
| Average | Average execution time of the flow for successfully completed executions |
| Maximum | Maximum execution time for the flow |
| Minimum | Minimum execution time for the flow |
| Activity Execution (count) | |
| Activity | Name of activity |
| Started | Total number of times a given activity has started |
| Completed | Total number of times a given activity has completed |
| Faulted | Total number of times a given activity has failed |
| Activity Execution Time (in milliseconds) | |
| Activity | Name of activity |
| Average | Average execution time of a given activity for successfully completing executions |
| Maximum | Maximum execution time for a given activity |
| Minimum | Minimum execution time for a given activity |

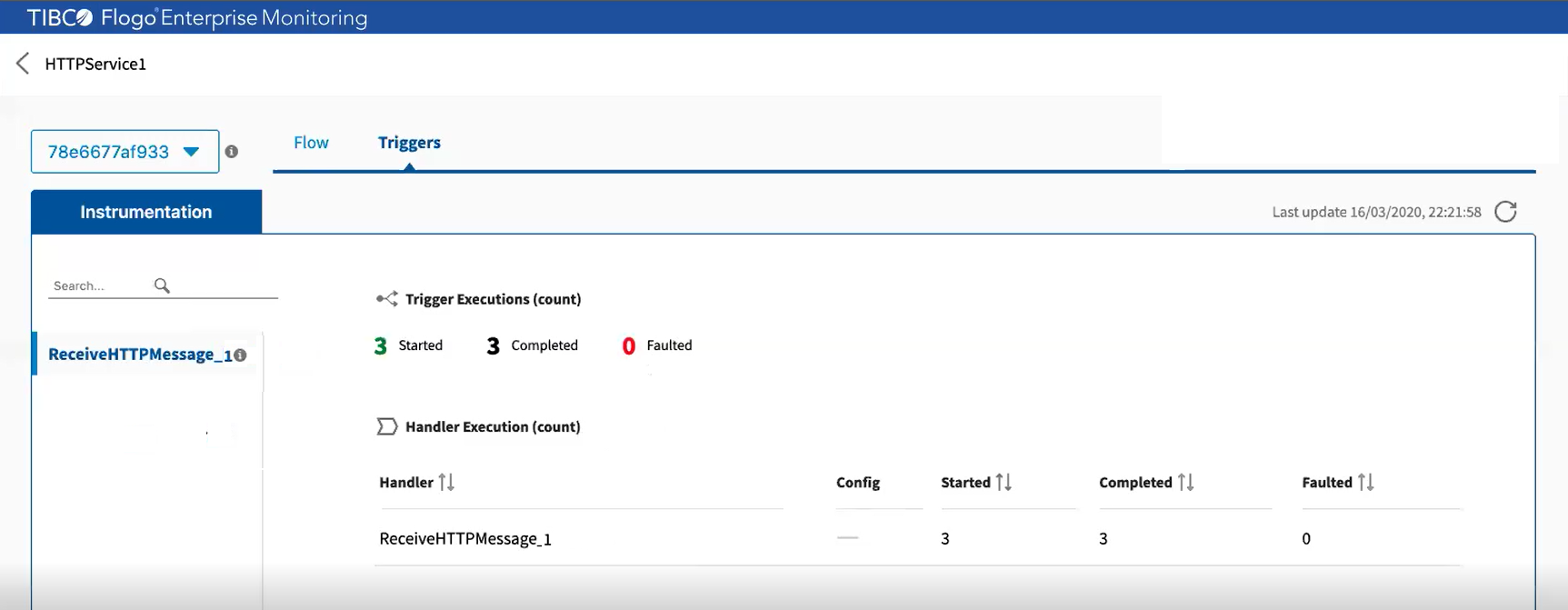

Triggers Tab
Select a trigger from the list on the left to see its details. You can also search for a trigger in the list.
The following information is displayed on the right:
| Name | Description |
|---|---|
| Trigger Executions (count) | |
| Started | Total number of trigger instances started |
| Completed | Total number of trigger instances completed |
| Faulted | Total number of trigger instances failed |
| Handler Execution (count) | |
| Handler | Name of the trigger handler |
| Config | Configuration of the trigger handler. For example:
method: POST path: /arrayfilter |
| Started | Total number of trigger handlers started |
| Completed | Total number of trigger handlers completed |
| Faulted | Total number of trigger handlers failed |
