OpenTelemetry Collector

Flogo supports integration with OpenTelemetry (OT) Collector. The goal of this collector is to create a standard software development kit for tracing, metrics, and logging which different vendors like Jaeger, Zipkin, Datadog, Prometheus adopt. You have the flexibility to switch vendors without changing the application logic with OpenTelemetry.

Note: To use this feature for TIBCO Control Plane deployments, ensure that the OpenTelemetry Collector is reachable from app containers.

Architecture

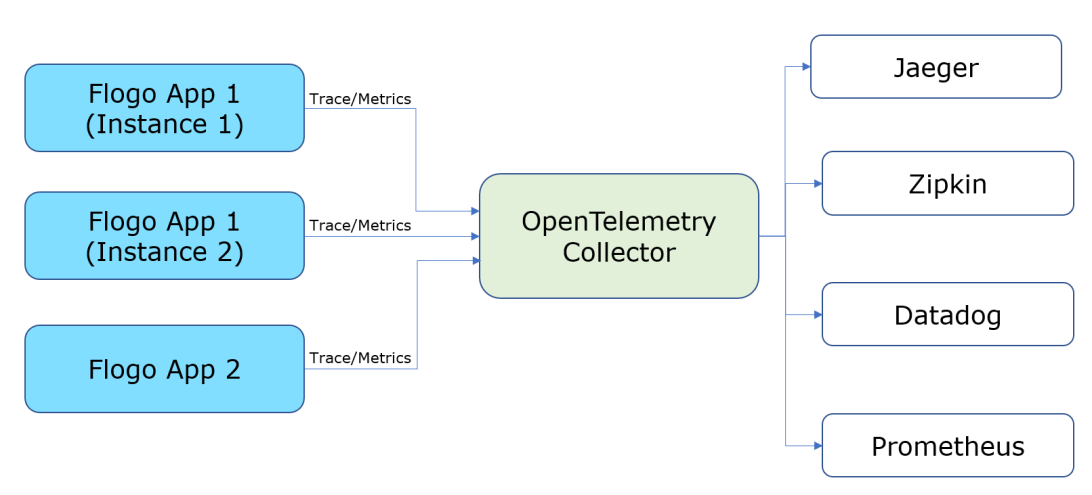

This is the schematic view of how the OT collector works:

Note: You can use the same architecture for distributed tracing as well. For more information, see Tracing Apps by Using OpenTelemetry Collector.

Configuration

The parameters listed below are required for the configuration of the OT collector:

Name Required Default Description
FLOGO_OTEL_METRICS Yes False Enable OpenTelemetry metrics for Flogo app
FLOGO_OTEL_METRICS_ATTRIBUTES No None Add one or more custom attributes to the metrics. For example, FLOGO_OTEL_METRICS_ATTRIBUTES="deployment_type=flogo"
FLOGO_OTEL_OTLP_ENDPOINT Yes None OpenTelemetry protocol (OTLP) receiver endpoint configured for OpenTelemetry Collector.
For gRPC protocol, set <host>:<otlp_grpc_port>
For HTTP protocol, set https://<host>:<otlp_http_port>
FLOGO_OTEL_OTLP_HEADERS No None Set one or more custom gRPC/HTTP headers in the request to the collector.
For example, FLOGO_OTEL_OTLP_HEADERS="Authorization=Bearer <token>,API_KEY=<api_key_value>".
FLOGO_OTEL_TLS_SERVER_CERT No None Set a PEM encoded Server/CA certificate when TLS is enabled for the OTLP receiver. You can configure a path to the certificate or use a base64 encoded certificate value. A file path must be prefixed with "file://". e.g. FLOGO_OTEL_TLS_SERVER_CERT="file:///Users/opentelemetry/certs/cert.pem" or FLOGO_OTEL_TLS_SERVER_CERT=<base64_encoded_server_certificate>.
When this certificate is not set, an unsecure connection is established with the collector.

Monitor Flogo apps metrics using OpenTelemetry

You can see the number of flows and activities ran in the app as per the below metrics:

Metrics Label Description
flogo_activity_executions_total - Total number of times the activity is started, completed, or failed.
  app_name Name of application
  app_version Version of application
  flow_name Name of flow
  activity_name Name of activity
  activity_type Type of activity
  state State of activity - Started, Completed, or Failed
  host_name Name of the host or app instance ID
flogo_flow_executions_total - Total number of times the flow is started, completed, or failed.
  app_name Name of application
  app_version Version of application
  flow_name Name of flow
  state

State of flow - Started, Completed, or Failed
  host_name Name of the host or app instance ID
flogo_activity_execution_duration_msec - Total time (in ms) taken by an Activity for successful completion or failure.
  activity_name Name of activity
  activity_type Type of activity
  app_name Name of application
  app_version Version of application
  flow_name Name of flow
  host_name Name of the host or app instance ID
  state

State of flow - Started, Completed, or Failed
flogo_flow_execution_duration_msec - Total time (in ms) taken by the flow for successful completion or failure.
  app_name Name of application
  app_version Version of application
  flow_name Name of flow
  host_name Name of the host or app instance ID
  state

State of flow - Started, Completed, or Failed

Example

Prometheus

FLOGO_OTEL_METRICS=true FLOGO_OTEL_OTLP_ENDPOINT="localhost:4317" FLOGO_OTEL_METRICS_ATTRIBUTES="deployment=local,product=flogo" ./<app-executable>
