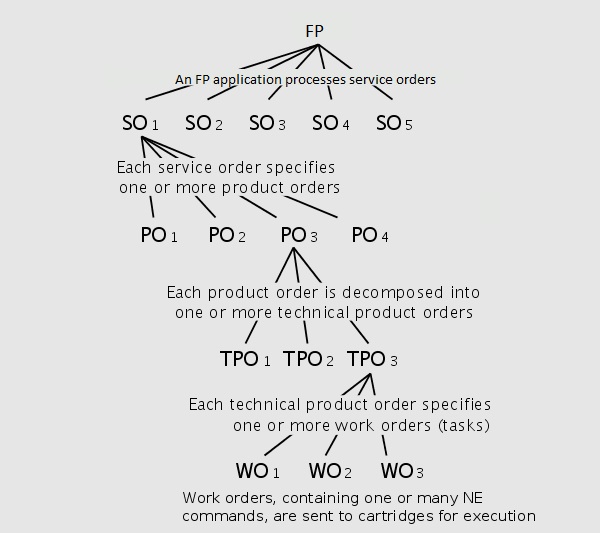

A Fulfillment Provisioning application processes orders at several levels as shown in the figure, Figure 4. Each service order flowing through the application includes one or more product orders. Each product order is decomposed into one or more technical product orders. Each technical product order comprises one or more work orders described work orders. These work orders are passed to cartridges for execution.

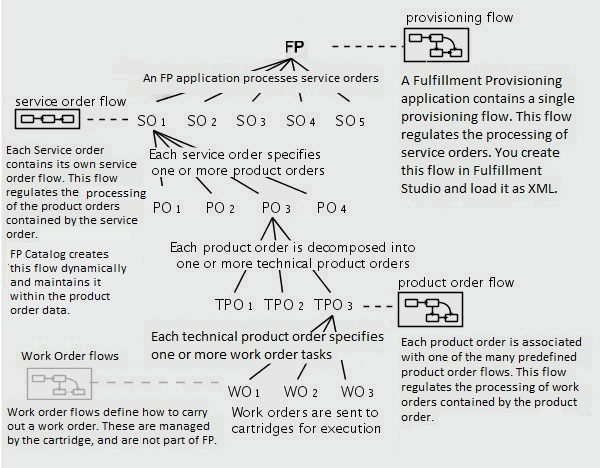

At various levels of the hierarchy shown in the figure, Figure 5 there is a flow that processes orders within that level. The figure shows how these flows are associated with each level of Fulfillment Provisioning.
