Maintaining Cartridges

You can push a cartridge in and out of the maintenance state using the following steps.

1. From the menu, click Administration > Node Management.
   A list of nodes are displayed in the Nodes & Network panel.
2. Select a node and click the Cartridges tab.
   A list of cartridges is displayed.

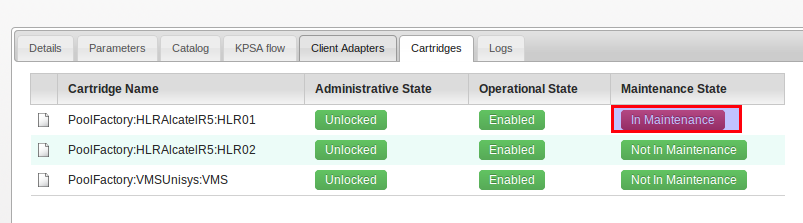

3. To place a cartridge in maintenance, click In Maintenance.
   The cartridge is now pushed to the maintenance state. For more information on effects of pushing a cartridge into the maintenance state, refer to the startMaintenance Cart section. The In Maintenance button toggles between the In Maintenance state and the Not in Maintenance state.






4. To verify whether the cartridge was successfully pushed to the maintenance state, click Logs.
   A log of activities is displayed. The status of the recent activity is displayed in the log.
5. To place a cartridge no in the maintenance state, click Not In Maintenance. for details, refer to the stopMaintenanceCart section.
