Create

Create makes one-to-many new entities in TIBCO Fulfillment Subscriber Inventory. For items only, you can also use this operation to create orders, associated characteristics, and relationships, as well as linking to other items; this is item specific, and cannot be done for parties. Referential integrity is assured for item to item relationships.

This operation also provides the option of locking the newly created entity using a defined lock key.

Users must have one of the following permissions for the respective action (create item or party) to call this operation:
  • PERM_CREATE_ITEM
  • PERM_CREATE_PARTY
The following table describes performance implications of using this operation:
Activity Impact Description
Creating multiple entities in a single operation call Low The more entities that are created in a single call, the longer the operation will take to complete. Creating multiple entities in a single call will still be less time than creating each entity individually when using separate operation calls.
Creating items with large numbers of characteristics, orders, and relationships Medium The more characteristics, orders, and relationships that are created with an item will result in longer processing time.

Create Request

This message is sent by the client application to the TIBCO Fulfillment Subscriber Inventory system.

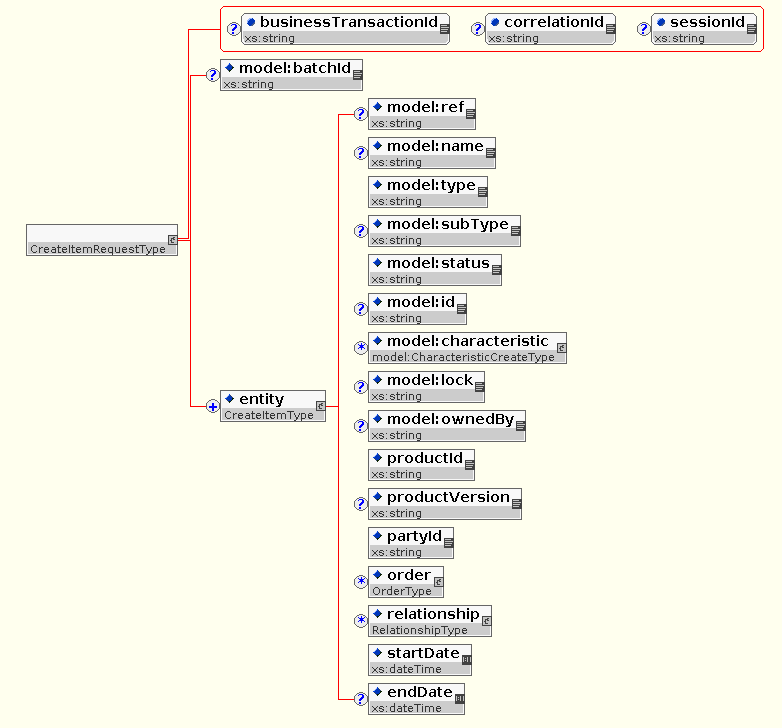

Create Item Request Payload

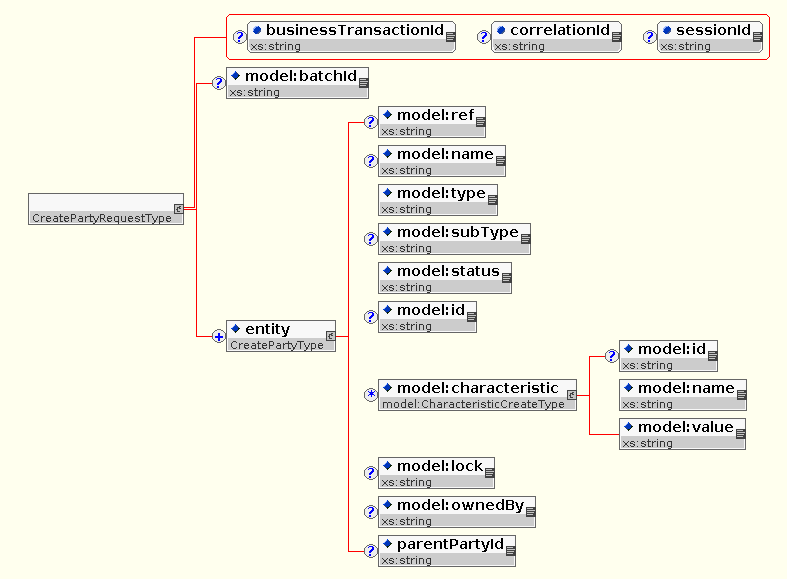

Create Party Request Payload
Element Type Cardinality Description
batchId String Optional This is the batch this item creation belongs to.
entity CreateItemType Mandatory This is the item create type and the list of entities to create.
entity/ref String Optional This is the reference of the entity being created.
entity/name String Optional This is the name of the entity being created.
entity/type String Mandatory This is the type of entity being created.
entity/subType String Optional This the sub type of entity being created.
entity/status String Mandatory This is the status of the entity being created.
entity/id String Optional This is the unique identifier for the entity to be created.

If entityId was specified in the request or was created successfully, this is populated.

If entityId was omitted from the request and the entity was not successfully created, this is not returned.

entity/characteristic CharacteristicCreateType Optional This defines the characteristics of the entity being created, such as ID, name, and value.
entity/lock String Optional This is the key of the immediate lock to apply to the created entity.
entity/ownedBy String Optional This defines who owns the entity. This is defaulted to the current user if it is omitted.
characteristic/id String Optional This is the identifier of the characteristic within the entity. If this is empty, an identifier is created.
characteristic/name String Mandatory This is the name of the characteristic.
characteristic/value String Mandatory This is the value of the characteristic.
Create Request Body Details for Item Only
Element Type Cardinality Description
entity/productid String Optional This is the ID of the product represented by the item.
entity/productVersion String Optional This is the product version number of the product being created.
entity/partyId String Optional This item field represents the party the item belongs to. It may or may not represent a valid party ID.
entity/order OrderType Optional This is the order or orders related to this item. See the Create Sub Elements topic for details on the order sub elements.
entity/relationship RelationshipType Optional This is the relationship for the item (no referential integrity). See the Create Sub Elements topic for details on the relationship sub elements.
entity/startDate dateTime Mandatory This is the start date for the entity being created.
entity/endDate dateTime Optional This is the end date for the entity being created.
.

Create Response

This message is sent by the TIBCO Fulfillment Subscriber Inventory system to the requesting application to return the results of the operation invocation.

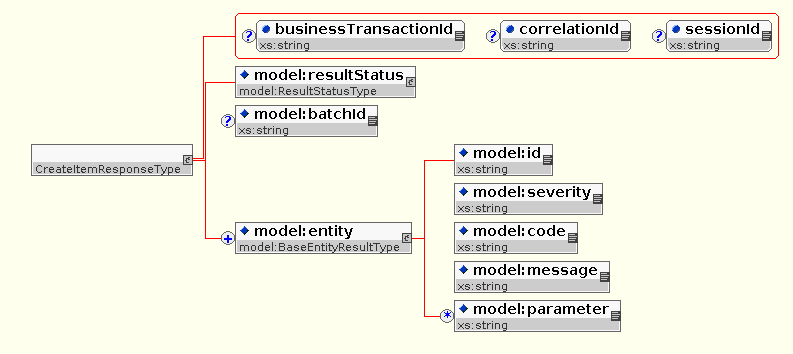

Create Item Response Payload

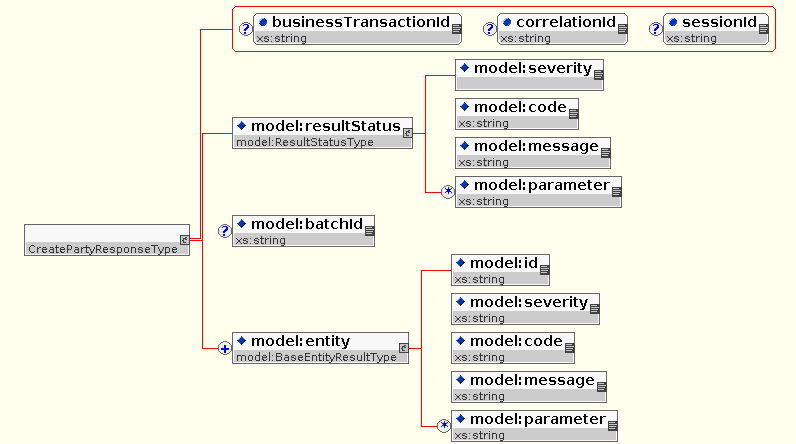

Create Party Response Payload
Create Response Body Details for Item and Party
Element Type Cardinality Description
resultStatus ResultStatusType Mandatory This is the result status type and the operation invocation status.
batchId String Optional This is the unique identifier for the batch that the request was included into. This will only be returned if it is included on the request.
entity BaseEntityResultType Optional This is the entity type returning the individual result status.

If none of the entities could be created due to a system error, this set is empty.

If any of the entities could be created, there is one entity for each requested create entity.

entity/id String Optional This is the unique identifier for the created entity.

If entityId was specified in the request or was created successfully, this is be populated.

If entityId was omitted from the request and the entity was not successfully created, this is not returned.

entity/parentPartyId String Optional This is the ID of the parent party of this party. May or may not be the ID of an existing party.
