Java Unified API

Requirements

Please see the readme.txt file that accompanies Instream for Instream requirements information.

Persons with knowledge of Java and Instream can also help.

Running the Java Demo

  1. Go to Instream’s API\AllProductsAPISampleJava or API\JavaSample directory and compile the .java files by running Build.bat or Build.sh. These two files are present:

    JavaApIDemo.class
    yourMsgClass.class

  1. Run the demonstration by running RunJavaSample.bat or RunJavaSample.sh. This file contains several examples.

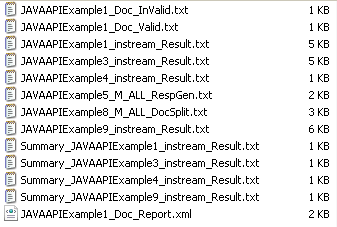

  2. Go to the Output directory of Instream to see the files created:

Paths and Environment Variables

Path include the Bin directory of Instream in your path.

classpath include the Instream Java directory.

-classpath "%InStreamRoot%\Java\instreamapi.jar."

To set up the environment variable classpath, see this example in RunJavaSample.bat:

java -classpath ".;%InStreamRoot%\Java\instreamapi.jar" JavaApIDemo

Within the quotation marks, the location of JavaAPIDemo.class is identified as “.” – in other words, the current directory from which the batch file is being run.

‚     The separator (;) is followed by the path and filename of the TIBCO Foresight jar file.

ƒ     It then gives the name of the class file being run.

Environment Variable - If you are using an Instream API, use the FS_INSTREAMUIDDIR environment variable to point to a directory where you have write permission.

Files

Instream’s API\AllProductsAPISampleJava or API\JavaSample directory

JavaApIDemo.java

Source code that you can edit and then compile into a .class file.

Build.bat

Batch file that compiles JavaApIDemo.java into JavaApIDemo.class and yourMsgClass.java into yourMsgClass.class.

RunJavaSample.bat

Batch file that sets up and executes JavaApIDemo.class, which creates validation, Docsplitter, and Response Generator output in the Output directory of Instream. See Automatically Choosing a Guideline and APF for details.

yourMsgClass.java

Example of how to read a detailed and summary record from memory and then notify Instream that validation should continue.

Instream’s Java directory

instreamapi.jar

TIBCO Foresight jar file for the unified Java API.

Instream’s Java\docs\com\foresight\jInStreamAPI directory

jNHVInStream.html

Additional documentation for jNHVInStream class.

The other directories under the API directory of Instream are for the C++, C#, and VB APIs.

If you plan to change the sample code, copy the project to a different directory. Sample files are reinstalled with each release.

Class jNHVInStream

Import the TIBCO Foresight Java interface at the beginning of your program, like this:

import com.foresight.jinstreamapi.*;

Call or Member Description
avoidENV

For “document-only” validation - when the data does not have ISA or GS enveloping, or when the enveloping is to be ignored. Lists the segment, element, and composite separators.

It must appear BEFORE avoidENV.

Separators can be in any of these formats:

Integer example: 29,30,31

hexadecimal example: 0x1E,0x1F,0x1D

character example: ~!*

avoidENV=”NONE”

Example:

instObj.separator="~*:";

instObj.avoidENV=true;

DocumentType

Specifies that the data is XML. Otherwise, a value of “X12” is assumed – which includes all types of EDI that can be validated by Instream.

(XML is Windows only)

Example:

instObj.DocumentType = "XML";

DS_EdiOutputOpt

Specifies that the Docsplitter valid and invalid files are to be output to memory. The only setting is:

OUTPUTBYMEMORY

OUTPUTBYFILE

Example:

instObj.DS_EdiOutputOpt=instObj.OUTPUTBYMEMORY;

DS_Options

Docsplitter options controlling contents of the report, or disabling the report; one of these:

DS_ReportValidOnly

DS_ReportInvalidOnly

DS_ReportBoth DS_ReportDisable

DS_ReportInvalidFile

Gives the path and filename of the Docsplitter invalid EDI file.

DS_ReportValidFile

Gives the path and filename of the Docsplitter valid EDI file.

Example:

instObj.DS_Options=instObj.DS_ReportBoth

instObj.DS_Options = instObj.DS_ReportDisable

instObj.DS_ReportInvalidFile=OUTPUTDIR+"My_InValid.txt";

instObj.DS_ReportValidFile=OUTPUTDIR+"My_Valid.txt";

DS_profile Path and filename to a Docsplitter INI file.

Example:

public String DS_profile = "NONE";

DS_ReportDebugOpt

TIBCO Foresight internal use only

0 turns off debug Docsplitter messages

1 turns on debug Docsplitter messages

Example:

instObj.DS_ReportDebugOpt=1

DS_ReportFile

(file output only)

Gives the path and filename of the Docsplitter report. It will contain XML if the filename ends with .xml. It will be a delimited report if the filename ends with .csv.

Example:

instObj.DS_ReportFile=OUTPUTDIR+"My_Report.xml";

DS_reportdebug Set to y or n to turn Docsplitter debug messages on or off.
DS_TradingPartnerAutomation

Path and filename of a trading partner automation setup (.csv) file that will select a Docsplitter INI file (see TIB_fsp-instream_<n.n>_tpa.pdf).

If the Docsplitter INI file contains content splitting information, you will also need to call Doc_getNextInValidDocument() or Doc_getNextValidDocument()) to get all Docsplitter output files.

See example 10 in JavaApIDemo.java.

Example:

instObj.DS_TradingPartnerAutomation = INPUTDIR + "SampleTPA_DS_RG.csv";

updatemessage

This contains information about each split created during content-based Docsplitting:

type shows whether the split contained valid or invalid data: 1 for valid, or 2 for invalid
data the data in a split
index the index of that split – a counter showing which split it is

Example:

Assume that Docsplitter split input data into three parts:

ISA-IEA - valid

ISA-IEA - valid

ISA-IEA - invalid

You will get three UpdateMessages:

1, data in first ISA-IEA, 1(the last value shows this is the 1st valid split)

1, data in second ISA-IEA, 2 (the last value shows this is the 2nd valid split)

2, data in third ISA-IEA, 1(the last value shows this is the 1st invalid split)

Doc_getNextInValidDocument() Doc_getNextValidDocument()) Gets all valid and invalid files created by content-based splitting.

Example:

String _tstring = instObj.Doc_getNextValidDocument();

DS_InValidEdiOutputStr (memory output only) Memory buffer for the Docsplitter invalid EDI output.

Example:

f.write(instObj.DS_InValidEdiOutputStr.getBytes("UTF8"));

DS_ReportFormat

(Required for memory output; not used for file output)

Specifies the format of the Docsplitter report, one of these:

XMLFormat (default)

DelimitedFormat

XMLGenericFormat

The XML format slows performance more than the CSV format.

Example:

instObj.DS_ReportFormat=instObj.XMLFormat;

DS_ReportOutputOpt

Required for Docsplitter

Specifies that the Docsplitter report is to be output to memory or file.

Settings can be:

OUTPUTBYFILE

OUTPUTBYMEMORY

Example:

instObj.DS_ReportOutputOpt=instObj.OUTPUTBYMEMORY;

DS_ReportOutputStr

(memory output only)

Memory buffer for the Docsplitter report.

Example:

if(instObj.DS_ReportOutputStr.length() > 0){

f.write(instObj.DS_ReportOutputStr.getBytes("UTF8"));

DX_EDIInputSourceOption

Sets Dataswapper EDI input to memory or file; used when Docsplitter is being used in the mode that calls Instream.

Currently, Dataswapper can output to file, but not to memory.

It can input from memory if it calls Instream, but not if it accepts validation detail results as input.

This can be set to:

INPUTBYMEMORY

INPUTBYFILE

Example:

myInStream.DX_EDIInputSourceOption=myInStream.INPUTBYMEMORY;

DX_EDIOutputFile Points to Dataswapper’s EDI output file.

Example:

myInStream.DX_EDIOutputFile=”c:\abc.txt”;

DX_EDIOutputOption

Sets Dataswapper’s EDI output option.

This can be set to:

OUTPUTBYMEMORY

Example:

instObj.DX_EDIOutputOption =instObj.OUTPUTBYMEMORY;

getDX_output Requests Dataswapper’s EDI output be returned in memory.

Example:

(instObj.getDX_output());

getDXReport Requests Dataswapper’s report output be returned in memory.

Example:

(instObj.getDXReport());

DX_Profile Points to Dataswapper’s setup file.

Example:

myInStream.DX_Profile=”c:\Dswap.ini”;

DX_ReportFile Points to Dataswapper’s report output file.

Example:

myInStream.DX_ReportFile=”c:\abc.rpt”;

flag

Describes whether the input and output is by memory or file. Set this flag before you call fshvi().

INPUTBYFILE - The inputFile parameter contains a file name.

OUTPUTBYFILE - The outputFile parameter contains a file name.

INPUTBYMEMORY – (Instream validation only) the input EDI data is located in memory. The inputMemBuf parameter must also be set to point to the input buffer as described below.

OUTPUTBYMEMORY - (Instream validation only) The detail and summary output are to go to memory. In addition to setting this option, the routines updatedataDetail and updatedataSummary must be overridden to perform the actual update to memory.

Example:

instObj.flag = instObj.INPUTBYFILE | instObj.OUTPUTBYFILE

One input and one output flag may be combined via an "or", as in:

flag=(INPUTBYMEMORY | OUTPUTBYFILE);

RG_TradingPartnerAutomation

Path and filename of a trading partner automation setup (.csv) file that will select a Docsplitter INI file (see TIB_fsp-instream_<n.n>_tpa.pdf).

If the Docsplitter INI file contains content splitting information, you will also need to call Doc_getNextInValidDocument() or Doc_getNextValidDocument()) to get all Docsplitter output files.

See example 12 in JavaApIDemo.java

Example:

instObj.RG_TradingPartnerAutomation=INPUTDIR + "SampleTPA_DS_RG.csv";

FSDOCUMENTONLY

This says that the EDI has no enveloping, or its enveloping should be ignored. It will be processed with the ISA and GS definitions specified in:

envlopISA

envGS

FSDOCUMENTONLY, envlopISA, and envGS must all be present if you want the enveloping to be processed this way.

Another method for document-only processing is to use avoidENV and separator (see page Java Unified API).

static String envlopISA="ISA*00* *00* *01*9012345720000 *01*9088877320000 *020108*1042*U*00200*000000001*0*T*:!";

static String envGS="GS*HP*901234572000*908887732000*20020108*1615*1*X*004010X091!";

instObj.flag |= instObj.FSDOCUMENTONLY;

FSINSTREAMINI

By default, the Instream Java API will read MAINDIR from registry ([HKEY_LOCAL_MACHINE, "SOFTWARE\\Foresight\\Instream"]) as Instream’s root directory.

It then reads $dir.ini from MAINDIR\bin.

But, you also can use the environment variable "FSINSTREAMINI" to overwrite the root directory.

Ensure FSINSTREAMINI points to the folder where the $dir.ini (or fsdir.ini) file is located (see example).

(Windows only)

Example:

set FSINSTREAMINI=F:\TIBCO\instream\<n.n>\bin

fsInStream Java native interface that calls jHVInStream.dll.

Example:

public int fsInStream(java.lang.String inputFile,

java.lang.String outputErrorFile,

java.lang.String guideline,

java.lang.String errorLevelFile,

java.lang.String proFileOptions,

java.lang.String inputMemBuf, int flag)

fshvi

The procedure that actually runs validation, Docsplitter, Response Generator and/or Docsplitter, based on the settings in HVINSTREAM_PROCEDURE (below).

Return codes are listed in the user manual for each program (e.g. TIBCO Foresight® Instream® Response Generator etc.).

If a code is returned indicating an error, the function getErrorMessage can be used to get a detailed description of the error.

Example:

if(instObj.fshvi()!=100){ System.out.println(instObj.getErrorMessage()); }else{ …….

fs997Report

fs999Report

fs824Report

fs277ReportfsContrlReport (EDIFACT only)

fsTA1Report

fsTextReport

(memory output only)

If set to true, these create the specific types of Response Generator output in memory.

The names of the Response Generator memory buffers are set with OutputBufxxx (see page Java Unified API).

Example:

instObj.fs824Report=true;

instObj.fsTA1Report=false;

Since fs824Report is set to true, this example creates 824 output in memory.

It does not create TA1 output.

FSUSINGFSERVER TIBCO Foresight internal use only.
getVersion Returns the version of Instream being used. Example: 9.2.0


Example:

String getVersion();

jNHVInStream instObj = new yourMsgClass();

instObj.fshvi()

System.out.println("HVInStream Version = "+instObj.getVersion());

InStream_partnerautomation

Sets the TPA path for validation.

See example 12 in JavaApIDemo.java.

If TPA fails due to a missing GS01 or GS08, Instream creates a TA1 file. If an output file name was specified, the TA1 file is named accordingly (e.g., filename.txt.TA1).

If memory output is specified, use the OutputBufTA1 call to access the information.

Example:

instObj.InStream_partnerautomation="../../bin/SampleTPA_DS_RG.csv";

HVINSTREAM_PROCEDURE

Specifies whether fshvi will run Instream validation, Docsplitter, Response Generator and/or Dataswapper

INSTREAM_ONLY

Run Instream validation only

INSTREAM_SPLITTER

Run Instream validation and then Docsplitter

SPLITTER_ONLY

Run Docsplitter only

INSTREAM_RESPGEN

Run Instream validation and then Response Generator

RESPGEN_ONLY

Run Response Generator only

DATASUBSTITUTE_ONLY

Run Dataswapper only

INSTREAM_ DATASUBSTITUTE

Run Instream validation and then Dataswapper

FSHV_ALL

Run Instream validation, Docsplitter, Response Generator and Dataswapper

void_init

Reset all variables to the default settings.

StopValidationWhenENVHasError

Specifies if processing should continue (set to false) or stop (set to true) if an ENV (ISA/GS UNB/UNG) error is encountered. The error is reported in the DTL output in either case.

Example:

instObj.HVINSTREAM_PROCEDURE=instObj.;

instObj.HVINSTREAM_PROCEDURE=instObj. INSTREAM_ONLY;

instObj.HVINSTREAM_PROCEDURE=instObj. INSTREAM_SPLITTER;

instObj.HVINSTREAM_PROCEDURE=instObj. SPLITTER_ONLY;

instObj.HVINSTREAM_PROCEDURE=instObj. INSTREAM_RESPGEN;

instObj.HVINSTREAM_PROCEDURE=instObj. RESPGEN_ONLY;

instObj.HVINSTREAM_PROCEDURE=instObj. DATASUBSTITUTE_ONLY;

instObj.HVINSTREAM_PROCEDURE=instObj. INSTREAM_ DATASUBSTITUTE;

instObj.HVINSTREAM_PROCEDURE=instObj. FSHV_ALL;

or

instObj.HVINSTREAM_PROCEDURE=instObj.;

instObj.HVINSTREAM_PROCEDURE=instObj.void_init;

instObj.HVINSTREAM_PROCEDURE=instObj.StopValidationWhenENVHasError=true;

getErrorMessage Returns the text of the last error encountered by Instream validation.

Example:

if(instObj.fshvi()!=100){

System.out.println(instObj.getErrorMessage());

getETYPE_type

Returns count of errors of a particular type:

TypeZeroCount

SyntaxCount

TypeTwoCount

SituationCount

CodeSetCount

ProductCount

PayerCount

PartnerCount

Example:

System.out.println(instObj.getETYPE_CodeSetCount());

getSVRTY_severity

(File-based output only)

Returns count of errors of a particular severity:

IgnoreCount

InfoCount

WarningCount

ErrorCount

FatalCount

User1Count

User2Count

Example:

System.out.println(instObj.getSVRTY_ErrorCount());

guideline

Gives the name of the guideline to be used for validation or input into another program such as Docsplitter. If omitted, Instream uses the first guideline encountered that matches the data’s Version/Release Identifier code (Segment GS Element 08).

If you are using Docsplitter, be sure it is a GuidelinePlus or is based on a GuidelinePlus (one that starts with PD).

Example:

instObj.guideline="PDSA835";

myInStream.guideline="PDSA835";

GuidelineBuffer

Used to pass a guideline directly in memory.

GuidelineBuffer is an input parameter pointing to a memory buffer (byte[] array) where the guideline can be found. This member can also be used to set up or change the guideline in the UpdateAnalysis routine as described in Automatically Choosing a Guideline and APF

Example:

instObj.GuidelineBuffer = new byte[guidelineLength];

inputFile

When using INPUTBYFILE, this gives the full path and name of the EDI data file that will be validated.

When using INPUTBYMEMORY, this gives a name or title for the data to be output in the Start Message.

Example:

instObj.inputFile=INPUTDIR+"My_Demo.txt";

inputMemBuf Input parameter pointing to memory buffer where input EDI data is to be found. This parameter is required when INPUTBYMEMORY is specified in the flag parameter, and ignored otherwise.

Example:

instObj.inputMemBuf = new String(b,0,n);

inputMemBufbyteArray Input parameter pointing to a byte[] array memory buffer where input EDI data is to be found. Either this parameter or the inputMemBuf parameter is required when INPUTBYMEMORY is specified in the 'flag' parameter, and ignored otherwise.

Example:

instObj.inputMemBufbyteArray = new byte[dataLength];

InStreamOutputXmlFormat

Set to “true” if you want an XML-format validation report.

Set to “false” if you want a delimited format validation report.

origFileInfo Specifies the month, day, year, hour, minute, second, size, and path of the original EDI file.

Example:

instObj.origFileInfo="02/14/05 14:55:19 2032 C:/HVInStream/DemoData/835-DEMO1.TXT";

OutputBuf997

OutputBuf999

OutputBuf277

OutputBuf824

OutputBufTA1

OutputBufCus

Get997Report

Get999Report

GetContrlReport (EDIFACT only)

(Response Generator memory output only)

These are the buffer names for the Response Generator output.

Example:

f.write(instObj.OutputBuf824.getBytes("UTF8"));

f.write(instObj.OutputBufTA1.getBytes("UTF8"));

OutputXmlFormat TIBCO Foresight Internal use only
profileOptions

Gives the name of the validation profile file.

Defaults to $FSDEFLT.APF.

Example:

instObj.profileOptions="users.apf";

PROFILEUPDATED TIBCO Foresight internal use only
respGenOutputFlag

Specifies that Response Generator output goes to memory or to a file:

OUTPUTBYMEMORY

OUTPUTBYFILE

Example:

instObj.respGenOutputFlag=instObj.OUTPUTBYMEMORY;

RG_Contrl Directs RG_Contrl output to memory or to a file.

File output :

instObj.RG_Contrl = OUTPUTDIR +

"JAVAAPIExample1_RespGen_Control.txt"; Memory Output :

Memory Output :

instObj.fsContrlReport = true;

String msg = instObj.GetContrlReport();

RG_Options Response Generator options, which can include any options mentioned in TIBCO Foresight® Instream® Response Generator, except -TPA.

Example:

instObj.RG_Options="-ge -y"

This example specifies that group enveloping is to be included in the response documents and that Response Generator can overwrite files if they already exist.

Note: When specifying Response Generator options via the API, leave no space between the option and its value. For example, use -er3 instead of -er 3. Spaces may cause the API response generator call to fail.

RG_Rep277

RG_Rep824

RG_Rep997

RG_Rep999

RG_TA1

Gives the name of the EDI file(s) to be created by Response Generator.

Example:

instObj.RG_Rep997=OUTPUTDIR+"My_Demo_997.txt"

instObj.RG_Rep277 = OUTPUTDIR + "JAVAAPIExample1_RespGen_277.txt";

instObj.RG_Rep999 = OUTPUTDIR + "JAVAAPIExample1_RespGen_999.txt";

instObj.RG_TA1 = OUTPUTDIR + "JAVAAPIExample1_RespGen_TA1.txt";

RG_repText

RG_Reptemp

RG_repText gives the name of a custom text report to be created by Response Generator.

RG_Reptemp gives the name of the template that controls the format of the custom text report.

If you use one of these, use both.

Example:

instObj.RG_repText=OUTPUTDIR+"RG_text_rpt.txt";

instObj.RG_Reptemp=INPUTDIR+"Template.txt";

separator

For “document-only” validation - when the data does not have ISA or GS enveloping, or when the enveloping is to be ignored. Lists the segment, element, and composite separators. It must appear BEFORE avoidENV.

Separators can be in any of these formats:

Integer example: 29,30,31

hexadecimal example: 0x1E,0x1F,0x1D

character example: ~!* avoidENV=”NONE”

TIBCO Foresight internal use only

This specifies that validation is to ignore ISA and GS enveloping and use the separators provided with separator.

Another method for document-only processing is to use FSDOCUMENTONLY (see page Java Unified API).

Example:

instObj.separator="~*:";

instObj.avoidENV=true;

updatedataDetail

This procedure writes detailed validation output to memory when the OUTPUTBYMEMORY flag is set. This is done one record at a time.

You must override this routine to perform the actual output as desired. The default version of this routine just sends the detailed message to standard output.

You can then have your application evaluate the record and either terminate validation or continue validation.

If you want to terminate validation, return the constant STOPHVINSTREAM (or 500).

If you want to continue validation, return the constant CONTHVINSTREAM (or 510).

Example:

public int updatedataDetail(String detail){

System.out.print(detail);

return(CONTHVINSTREAM); }

updatedataSummary

This procedure writes summary validation output to memory when the OUTPUTBYMEMORY flag is set. This is done each time a transaction set ends in the detail output.

You must override this routine to perform the actual output as desired. The default version of this routine just sends the detail message to standard output.

You can then have your application evaluate the output and either terminate validation or continue validation.

If you want to terminate validation, return the constant STOPHVINSTREAM (or 500).

If you want to continue validation, return the constant CONTHVINSTREAM (or 510).

Example:

public int updatedataSummary(String summary){

return (CONTHVINSTREAM);

}

updateMessage

This procedure is responsible for writing Document Splitter and Data Exchange values output to memory.

Where type = <n>

1 - Memory output, value1 = DocSplitter Valid document, value2 = Content name for Content-Based splitting.

2 - Memory output, value1 = DocSplitter InValid document, value2=Content name for Content-Based splitting.

3 - Memory output, value1 = DocSplitter Report, value2 = Not used.

4 - Memory output, value1 = Data exchange output, value2 = Not used.

5 - Memory output, value1 = Data exchange Report, value2 = Not used.

6 - File output, value1 = Content-Based splitting valid document name, value2 = Not used.

7 - File output, value1 = Content-Based splitting invalid document name, value2 = Not used.

Example:

int updateMessage(int type,

java.lang.String value1,

java.lang.String value2)

userMessage

Inserts your free-form text in a validation detail file GEN record with number 15078.

Example GEN record (assume your text was "Sock 2"):

GEN 015078 1 0Sock 2

This is for your own use. TIBCO Foresight® Transaction Insight® can display it.

UseUpdateAnalysis

This lets the calling program pick the guideline and validation profile. You will need to do two things to set this up:

  1. Set the UseUpdateAnalysis flag to true before calling fshvi.

  2. Modify the calling program to select a guideline. Please see UseUpdateAnalysis below for details.

Example:

instObj.UseUpdateAnalysis = true;

Automatically Choosing a Guideline and APF

This feature lets you choose a guideline, and optionally a profile, based on the contents of the data.

UseUpdateAnalysis

For an example, please see yourMsgClass.java in TIBCO Foresight’s API\AllProductsAPISampleJava directory.

X12 - values in ISA or GS

To make the guideline and profile decision for X12 data, based on values in the ISA or GS:

  1. Do not specify a guideline.

  2. Set the UseUpdateAnalysis flag to true.

  3. At each GS, the calling program will receive UpdateAnalysis with the <interchange> and <FunctionalGroup> data shown below.

    The <Version> tag will contain the X12 version.

  4. The calling program sends back this.guideline and this.profileOptions variables:

    this.guideline = "B41A837I";
         retVal |= this.STANDARDUPDATED;

         /*** Set apf file to use *****/
         this.profileOptions = "XXXX.apf";
         retVal |= this.PROFILEUPDATED;
    Note: It is also possible to use the GuidelineBuffer parameter to pass a pointer to a byte array containing a guideline in memory instead of passing a guideline filename in the guideline parameter. In this case, set the .STANDARDUPDATEDINMEMORY flag instead of the .STANDARDUPDATED flag.

Flat File, XML and X12 transaction set data

To make the guideline and profile decision for XML or flat file data, or for X12 data in the transaction set rather than in the enveloping:

  1. Use guideline to specify a content-based guideline (see TIB_fsp-instream_<n.n>_tpa.pdf). This will contain an IdentifierLookup business rule and a DSR mark to show locations where a guideline or profile switch may occur.

  2. Set the UseUpdateAnalysis flag to true.

  3. During validation, at each DSR location, the calling program will receive UpdateAnalysis containing the <Variables> element information shown below. The <Interchange> and <FunctionalGroup> elements will be empty.

    The <Version> tag will contain Flat  or  XML .

  1. The calling program sends back this.guideline and this.profileOptions variables:

    this.guideline = "B41A837I";
    retVal |= this.STANDARDUPDATED;
    this.profileOptions = "XXXX.apf";
    retVal |= this.PROFILEUPDATED;
    Note: It is also possible to use the GuidelineBuffer parameter to pass a pointer to a byte array containing a guideline in memory instead of passing a guideline filename in the guideline parameter. In this case, set the .STANDARDUPDATEDINMEMORY flag instead of the .STANDARDUPDATED flag.

Example XML sent to calling program by UpdateAnalysis

  <?xml version="1.0" encoding="UTF-8"?>
        <Info>
        <Interchange>
        <SenderQualifier>01</SenderQualifier>
        <Sender>9012345720000</Sender>
        <ReceiverQualifier>01</ReceiverQualifier>
        <Receiver>9088877320000</Receiver>
        <Date>020111</Date>
        <Time>1212</Time>
        <CtlNo>000000001</CtlNo>
        </Interchange>
        <FunctionalGroup>
        <ID>HC</ID>
        <Sender>901234572000</Sender>
        <Receiver>908887732000</Receiver>
        <Date>20020111</Date>
        <Time>1615</Time>
        <CtlNo>1</CtlNo>
        <Version>004010X096A1</Version>
        </FunctionalGroup>
        </Info>
        <Variables>
        <variable index="1" segment="CS" element="5">Topcat Co.</variable>
        <variable index="2" segment="" element=""></variable>
        </Variables>
        </Info>

Binary Segment Handling

UpdateAnalysis is also called when Instream validation encounters a binary segment and the ValidateBinarySegs option, found in the APF file, is not set to 0 (zero). For more information refer to TIB_fsp-instream_n.n.n_APF.pdf.

When the Guideline and APF cannot be Identified

With userMessage, you can handle several trading partner automation conditions where the guideline and APF cannot be identified from the values in the enveloping.

The userMessage provides an error number that Instream uses to:

RunJavaSample.bat Annotation

This file sets up paths and runs JavaApIDemo.class.

From File

Explanation

set

InStreamRoot=C:\Program Files\HIPAA Validator InStream

InStreamRoot points to a high-level Instream directory.

set

InputDir=%InStreamRoot%\DemoData

set

OutputDir=%InStreamRoot%\Output

InputDir and OutputDir are directories under InStreamRoot.

rem Instream Bin directory must be in path in order for Java to find jHVInStream.dll

rem If it is not at the path, we add it here

echo>__tmp__ %PATH%
find>nul: /I "%InStreamRoot%\Bin" __tmp__
if ERRORLEVEL 1 set PATH=%PATH%;%InStreamRoot%\Bin
del>nul: __tmp__

If Instream’s Bin directory is not in the path, it is located and added to the path.

@echo Using Java to run 835-DEMO1.TXT data through Instream...

java -classpath ".;%InStreamRoot%\Java\instreamapi.jar" JavaApIDemo

The dot just after the opening quotation mark says the path to JavaApIDemo.class is the same directory as the batch file. The semi-colon after it is a separator.

Run JavaApiDemo.class. To do this, you:

  • Identify the name and location of TIBCO Foresight’s jar file. It’s in InStream’s Java directory:

    %InStreamRoot%\Java\instreamapi.jar

  • Identify the name and location of our input file (JavaApIDemo.class). It is in the same directory as the batch file you run to execute the program (RunJavaSample.bat).

@echo.

@echo Finished - Results can be found in %OutputDir%

pause

Displays a message about where to find output.
