Header

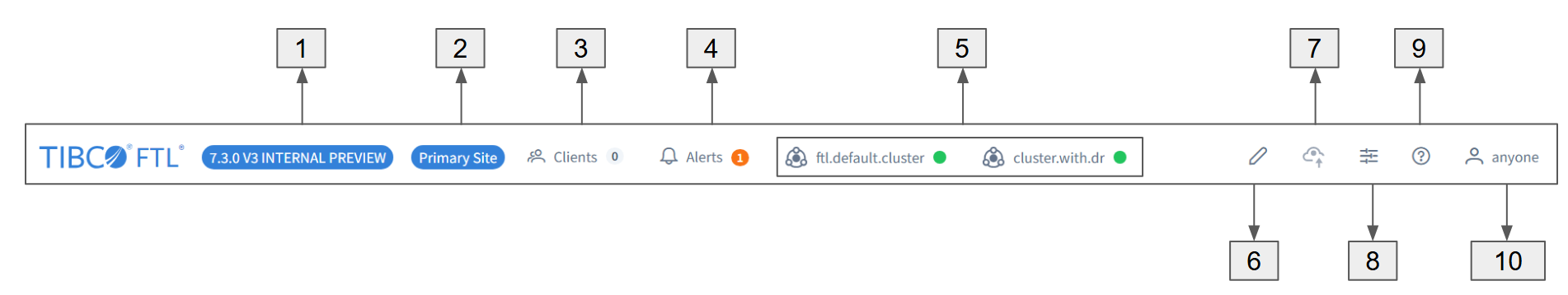

The following image shows the header of the UI and its various components:

Here are the details about these components:

• 1 indicates the version of TIBCO FTL that the FTL server is using.

• 2 indicates the FTL server operation mode. For more information, see Monitoring for Disaster Recovery.

• 3 shows client status' at a glance in a dropdown menu.

• 4 Shows a quick overview of alerts for the FTL server in a dropdown menu. Alerts include system alerts, such as activation warnings, and configuration validation errors.

• 5 shows persistence cluster and server status information at a glance in dropdown menus.

• 6 toggles edit mode on and off.

• 7 is the deployment button. It is only enabled when you are in edit mode. You must deploy configuration changes made in edit mode in order for them to take effect.

• 8 is the menu with options to upload and download configurations, toggle viewing Internal FTL objects from the UI, and switch between Destinations and Peer-to-Peer UI views.

• 9 is the menu with links to product and REST API documentation.

• 10 provides an option to sign out of the product UI.
