Chapter 1 Introduction : TIBCO Hawk HTTP Adapter Index Page

TIBCO Hawk HTTP Adapter Index Page

The format of the starting URL for TIBCO Hawk HTTP Adapter is shown below.

http://web_server:port/http/

If the starting URL for your configuration contains special characters, follow the standard encoding rule for URLs.

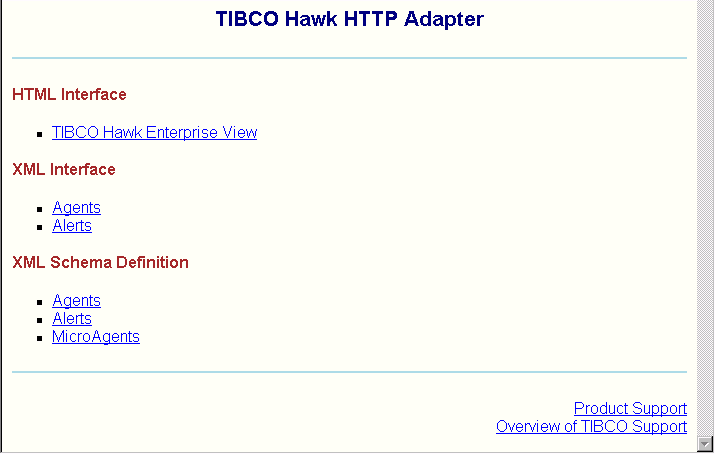

The TIBCO Hawk HTTP Adapter index page is shown below. From this page you can do the following:

•

Start the sample HTML application, described in Chapter 4, Using the Sample HTML Interface.

•

Invoke the Agents URL and Alerts URL. (The MicroAgents URL and Invoke URL have required parameters and cannot be invoked from this page.) The relative URLs are described in Chapter 3, Using the XML Interface.

•

View the Agents.xsd, Alerts.xsd, and MicroAgents.xsd schema definitions. These are described in XSLT/XPATH Stylesheets and included for reference in Appendix B, Sample Files.

This page also contains links to the TIBCO Support Web site and an overview of TIBCO Support Services.
