Chapter 3 Configuration Object API : Configuration Object API Class Structure

Configuration Object API Class Structure

This section contains UML diagrams showing the structure of the Configuration Object API.

•

Key to the UML diagrams

•

Configuration Object API Classes

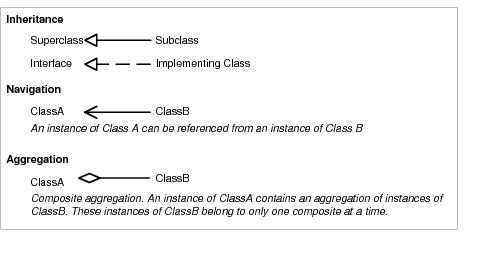

Key to the UML diagrams

These class diagrams use a subset of UML notation. Here is a brief key:

Classes and their methods are shown in rectangles:

Some methods and argument names are omitted for clarity. A third part, between the class name and methods, may be used for class variables. Underlined members are static.

Comments are shown in a rectangle with a turned down corner. A dotted line shows what the comment applies to.

Associations

Associations are indicated with lines:

Configuration Object API Classes

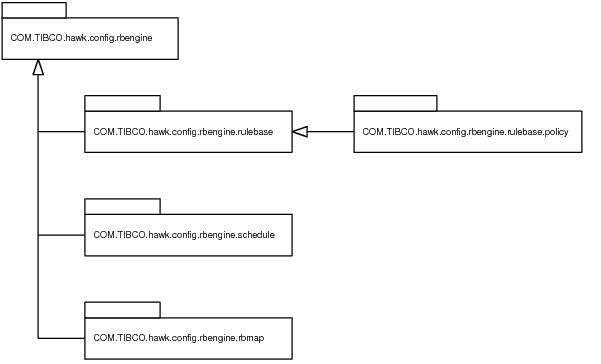

Figure 1 Package Level

Figure 2 Base Classes Extended by Rulebase, Schedule, and Rulebase Map Classes

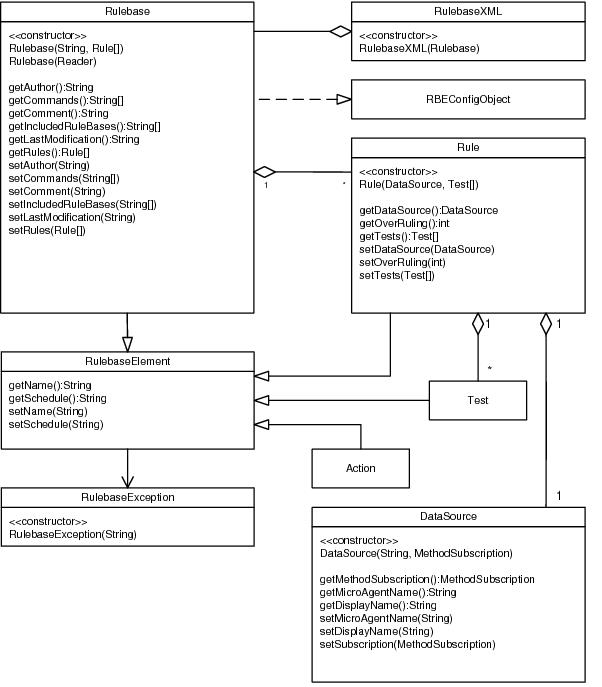

Figure 3 Rulebase, Rule, and DataSource-related Classes

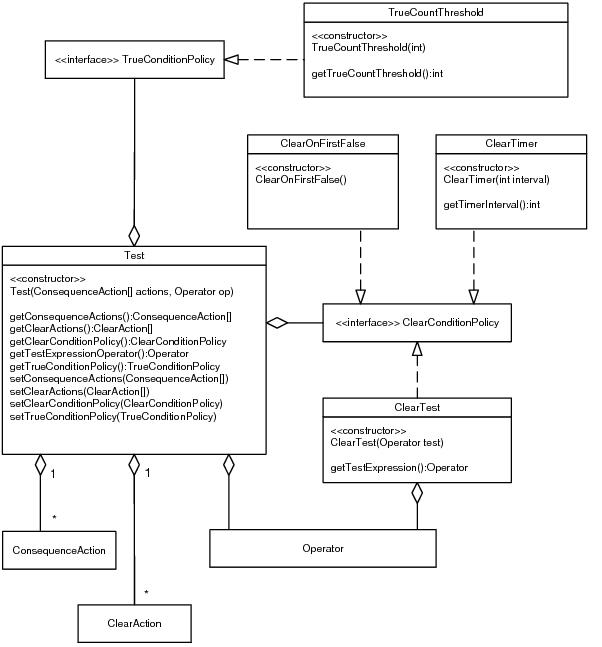

Figure 4 Test-Related Classes

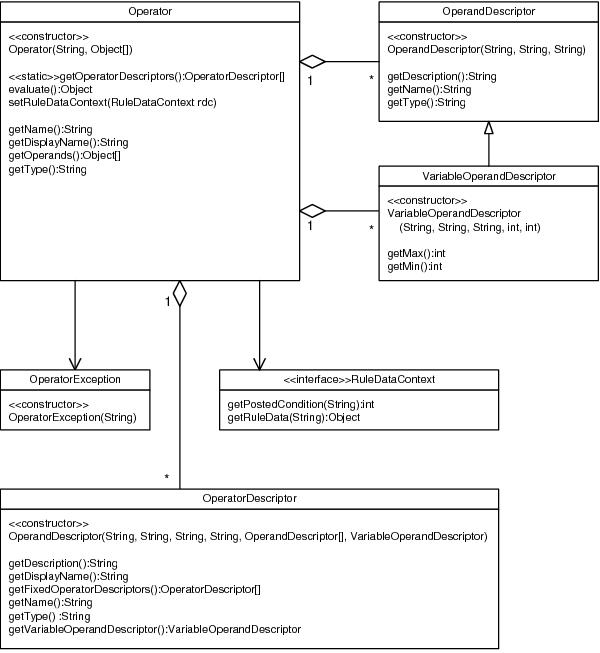

Figure 5 Operator-Related Classes

Figure 6 Action-Related Classes

Figure 7 Schedules-Related Classes

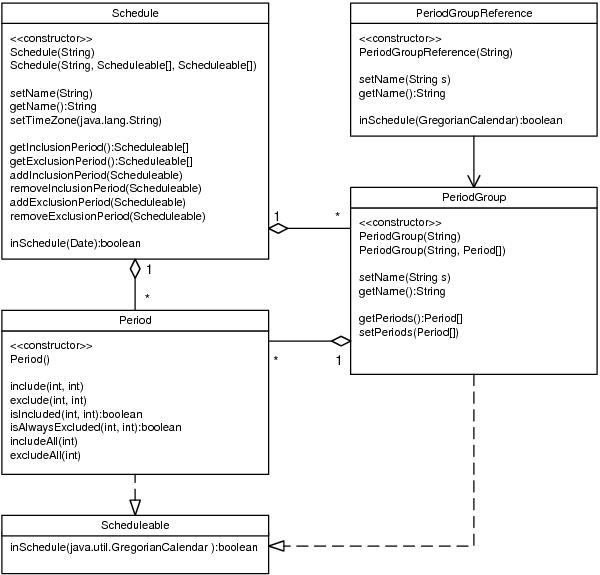

Figure 8 Schedule-Related Classes

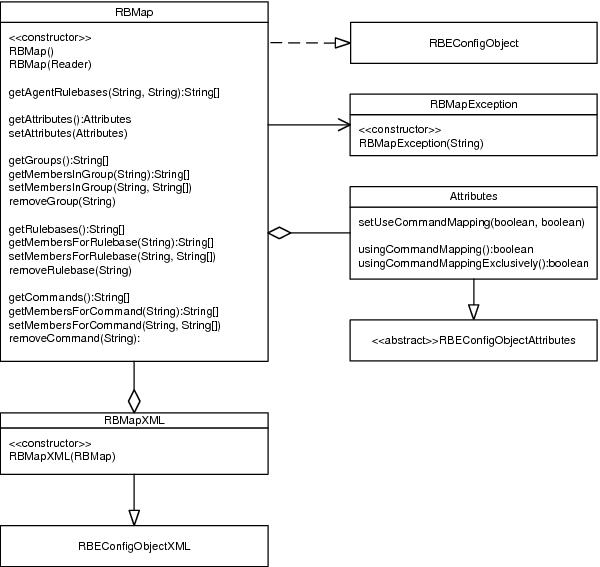

Figure 9 Rulebase Map-Related Classes
