TIBCO Hawk Console API Class Structure

This section contains UML diagrams showing the structure of the following two packages:

COM.TIBCO.hawk.hawkeye: classes used to monitor agents

COM.TIBCO.hawk.talon: classes used to manage agents

•	Key to the UML Diagrams

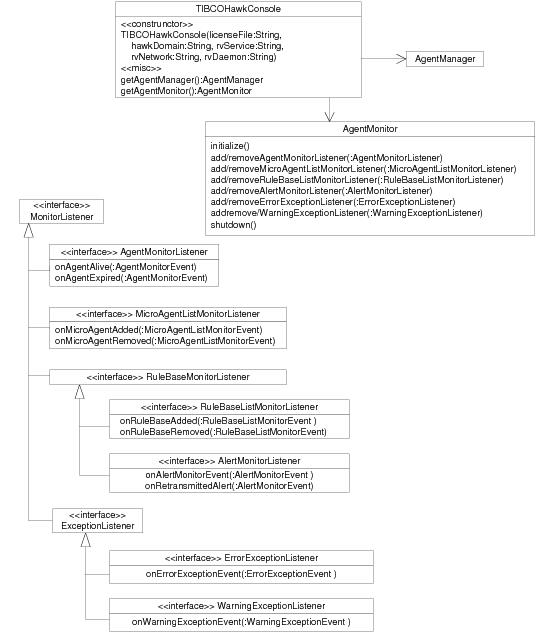

•	Agent Monitoring Classes (Hawkeye)

•	Agent Management Classes

Key to the UML Diagrams

These class diagrams use a subset of UML notation. Here is a brief key:

Classes and their methods are shown in rectangles:

Some methods and argument names are omitted for clarity. A third part, between the class name and methods, may be used for class variables. Underlined members are static.

Comments are shown in a rectangle with a turned down corner. A dotted line shows what the comment applies to.

Associations

Associations are indicated with lines:

Agent Monitoring Classes (Hawkeye)

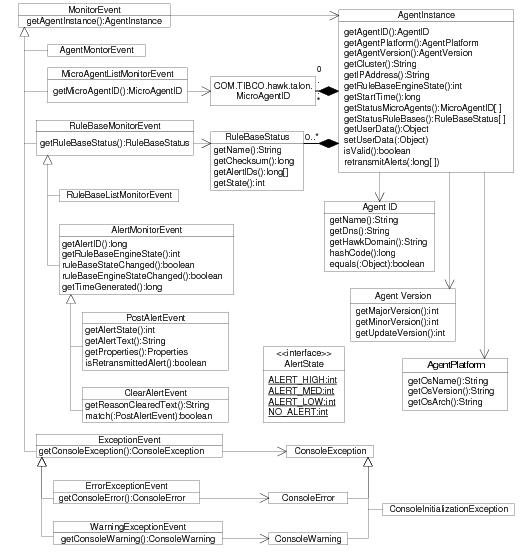

Agent Monitoring Classes (Cont)

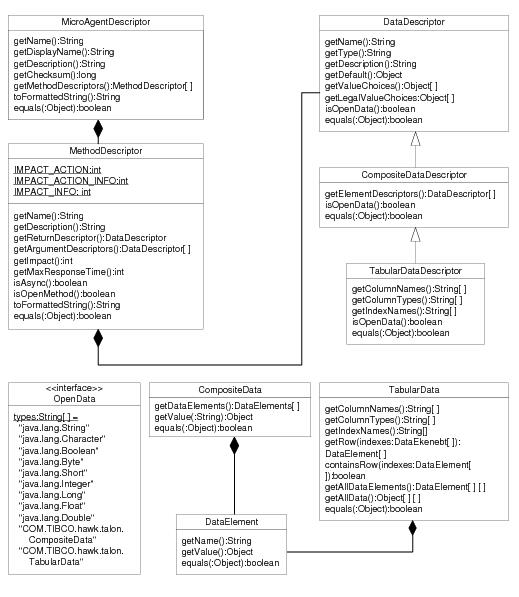

Agent Management Classes

Agent Management Classes (Cont)
