Architecture

The following diagram gives an overview of TIBCO Hawk system architecture.

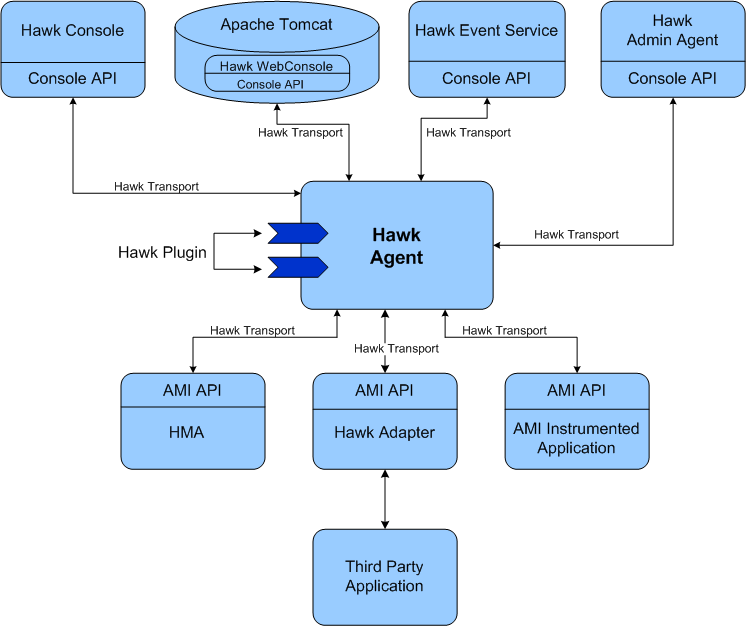

Figure 2: TIBCO Hawk System Architecture

TIBCO Hawk consists of the following components:

TIBCO Hawk Agent
TIBCO Hawk MicroAgent (HMA)
TIBCO Hawk Console
TIBCO Hawk Admin Agent
TIBCO Hawk Application Management Interface (AMI)
TIBCO Hawk Console API
TIBCO Hawk Plug-in
TIBCO Hawk Adapter
TIBCO Hawk Event Service
TIBCO Hawk Message Transport
