Externally Updating Field Data in a Case

An external process can interact with an iProcess procedure by updating field values in a case that is already running. For example, you might want to update a field in a case with a new interest rate or update the values of several CDQP parameters.

	This functionality is sometimes referred to as Process Variables in this guide.

To update your case data, you have to:

use the swutil EVENT -p command with an abox file that contains the new field values. Detailed information about using swutil EVENT can be found in “Events” in TIBCO iProcess swutil and swbatch Reference Guide.

There are a number of ways in which you can control how and where a field is updated. For example, you can change the value of a field in a sub-case without changing the value of the field in the parent case or you can specify a new value that will be passed to a specific case started from a dynamic sub-procedure call.

The following sections describe how case data is updated and the different ways you can control how the case data is updated:

For every case of a procedure, work items for each addressee are given a working copy of the values of all assigned fields in a case from the central case data (stored in the case_data database table). This working copy of data is known as pack data (stored in the pack_data database table). The pack data is modified by users or programs working on the work item(s) so if any fields are changed, they are changed in the pack data first and then copied to the case data when the work item is released.

When updating case data, only the field values specified in the abox file are updated in the case. All other field values in the case are unchanged. This allows you to use swutil EVENT to selectively update field values in work items. (By comparison, a swutil RESEND completely recreates a work item, overwriting all local pack_data in the work item. The RESEND command updates all fields in all outstanding steps to the values in the case data so any changes made in steps that are Kept (not Released) are lost.)

By using different formats for the new field values in the abox file, you can have more control over which fields you update. For example, you can update a specific field in a particular sub-case or change the input parameter to a sub-case - see Explicitly Updating Fields in Sub-Procedures.

	Delayed release EAI steps will not have data updated, as there is no mechanism to transfer the updated data to the external system.

This section describes how new field values supplied in an abox file using swutil EVENT -p are propagated through a case.

By default, if a new field value is supplied in an abox file, the new value is propagated through the parent case and down to any sub-cases via the appropriate field mappings defined by the step that initiated the sub-case. The case_data and pack_data database tables are updated for both the parent case and all affected sub-cases.

However, there are a few exceptions to this:

•

If the input parameter is set from an expression or script and a field value in the expression or script is being updated, the new value is not passed to the sub-case. This is because the expression or script is not re-evaluated. You can overcome this by explicitly changing field values in the sub-case - see Explicitly Updating Fields in Sub-Procedures.

•

Because Graft steps do not have input parameters, there is no automatic propagation of changed field values down to the sub-cases of a Graft step. However, you can modify sub-case fields in the same way you explicitly update fields in sub-procedures - see Explicitly Updating Fields in Sub-Procedures.

iProcess assigns an index automatically to each sub-case that is grafted to the Graft step. This means you need to manually check that the correct index is used when supplying new case data - for example, by using the getSubArrayIdx function in TIBCO iProcess Objects. See TIBCO iProcess Objects Programmer’s Guide for more information.

•

If you use Dynamic sub-procedure calls, new field values are propagated to the sub-cases because the array element index is used to pass the correct field values to the appropriate sub-case(s). However, if a single instance field is passed, the field value is passed to all the sub-cases.

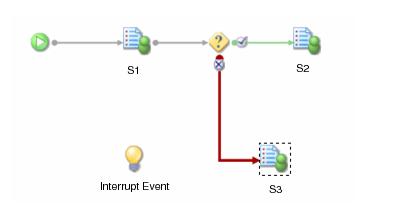

To update case data in your procedure, you need to define an Event step in the procedure with no actions (i.e. no links from the right or the bottom of the Event object). This Event is not part of the procedural flow, i.e. it is not an action from any other step.

An external process can then issue a swutil EVENT -p command, specifying the name of the event step and an abox file containing the new field values. The field values supplied in the abox file are applied to the fields for this case of the procedure.

See "swutil EVENT" in TIBCO iProcess swutil and swbatch Reference Guide for detailed information about the syntax for using SWDIR\bin\swutil.

See abox Files for more information about the format of an abox file. There are various ways you can control what fields are updated in the case by specifying a different field format in the abox file.

The following examples demonstrate how you can use SWDIR\bin\swutil with an abox file to update a field in a main procedure (Example 1) and in a sub-procedure (Example 2):

For the procedure called CARPOOL, case number 100, event step called EVENTUPDATE where you want to modify the value in the INTRATE field from 5 to 4.5, enter the following:

where the abox1 file contains the following entry:

The new value of 4.5 is automatically propagated down to any sub-cases in case number 100 that use this field.

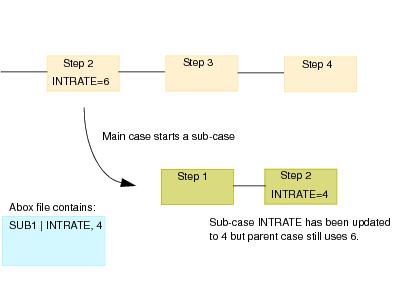

If you want to change a specific field value called INTRATE in a sub-case with a sub-procedure call step name of SUB1 without changing the calling field value (in the parent case), enter the following in the abox file:

See abox Files for more information about the format of abox files and See TIBCO iProcess swutil and swbatch Reference Guide for the complete command line syntax for swutil EVENT.

There are three ways in which you can update a sub-procedure field using Process Variables. Each method is listed below in the order of precedence (highest first).

This means that if a new field value is updated in a parent case and also explicitly in a sub-case, the new value defined for the sub-case takes precedence over the automatically propagated value.

Because of the different ways sub-procedures can be called there are slight differences in how updated fields are propagated to the sub-cases or how you explicitly change a sub-case field. The following table shows the sub-procedure call types and which methods can be used to update fields in the sub-cases:.

Sub-Procedure Type	Automatically Propagate Parent Fields to Sub-Cases	Explicitly Update a Sub-Case Field	Explicitly Update a Sub-Case Input Parameter
Static	Yes	Yes	Yes
Dynamic	Yes	Yes	Yes
Graft	No	Yes	No

The following sections describe specific information related to the way process variables work with each sub-procedure type.

•

You can explicitly change a sub-case input parameter without changing the field value in the parent case. This can only be done when I/O parameters have been defined for the sub-procedure. You map the new field value to the appropriate $IPTn value.

•

If a field for a sub-case is explicitly specified in an abox file and a sub-case is not already outstanding for that step, the sub-case is started automatically.

•

Array fields are used to pass values from the main procedure to the required sub-procedures. You can change one element in an array field and this is propagated to the relevant sub-case (using the array element index).

•

You can explicitly change a sub-case input parameter. This can only be done when I/O parameters have been defined for the sub-procedure. You map the new field value to the appropriate $IPTn value.

•

When explicitly changing a value in a sub-case and no outstanding sub-case for that index exists, the sub-case is started automatically and the new value is propagated down to it.

See abox Files for more information about the syntax you need to use in the abox file to update case data in these sub-procedure types.

There are a number of important points to note when using Process Variables:

•

If a field value that is used as a CDQP parameter is specified in the abox file, the new value is used to display, sort and filter in the Work Queue Manager the next time the work queue is refreshed.

•

If the user has changed a field specified in the abox file and then kept the work item, that change is lost. The original modified value is overwritten by the value specified in the abox file.

•

If a work item is open when the event updates its pack_data, when the user tries to keep or release the work item they will receive an error message informing them that the work item has been updated elsewhere since they opened the work item. The keep or release operation is cancelled and any changes to field values made by the user are lost. Updates to field values made by the event are applied. (The user can then re-open the work item and make their changes again.)
