Running Substation ES REST-Recipe Sample

This section explains how to run the Substation ES recipe REST samples for ActiveMatrix BusinessWorks.

Procedure

  1. Select run bwapplication
  2. When processes are up and running, do the following:

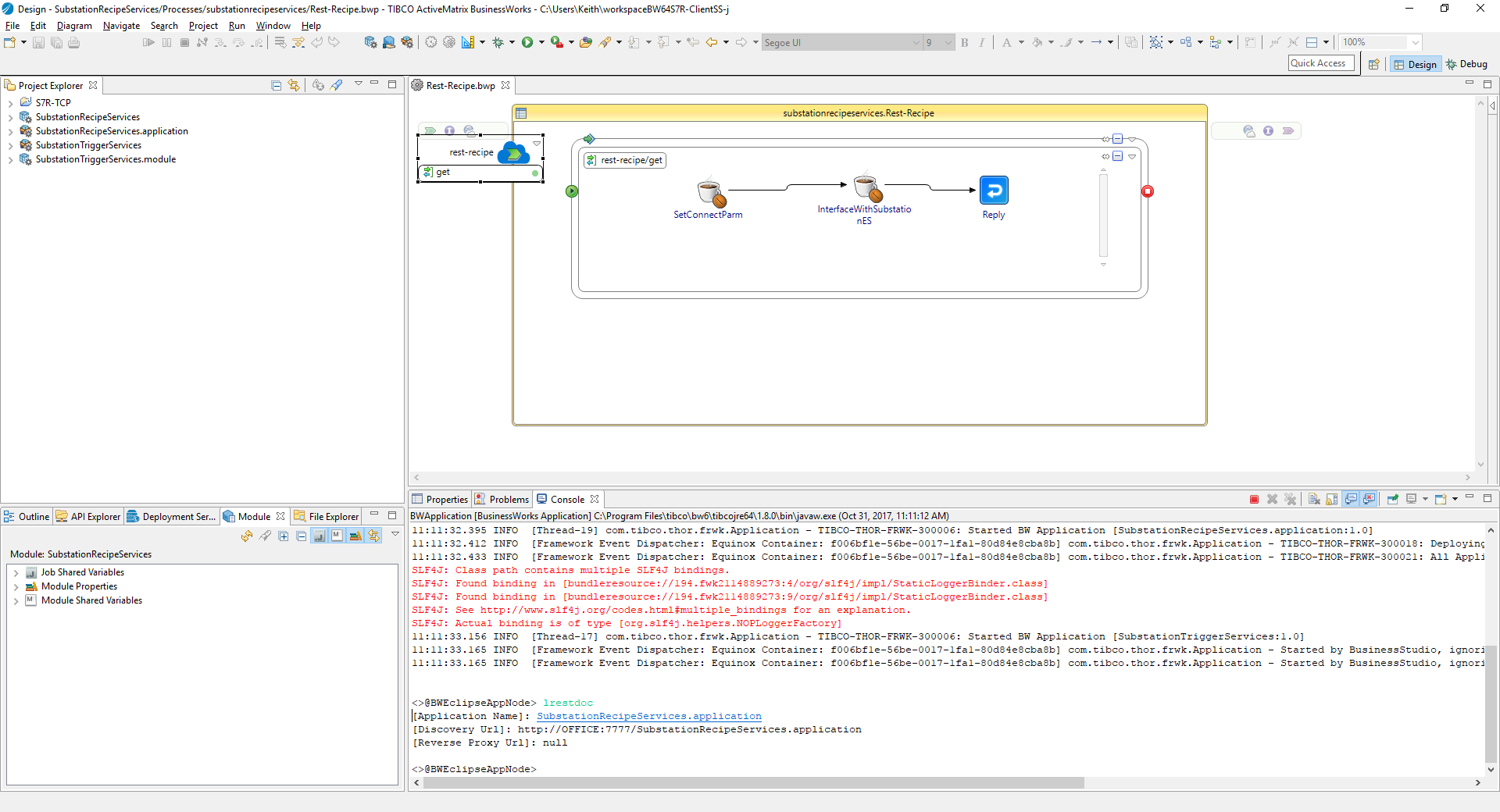

    1. On the console for the bw engine, click on area and then hit enter.
    2. A prompt should appear “<>@BWEclipseAppNode>”
    3. Type "lrestdoc" and hit enter
      BW runtime will display the “Discovery Url”

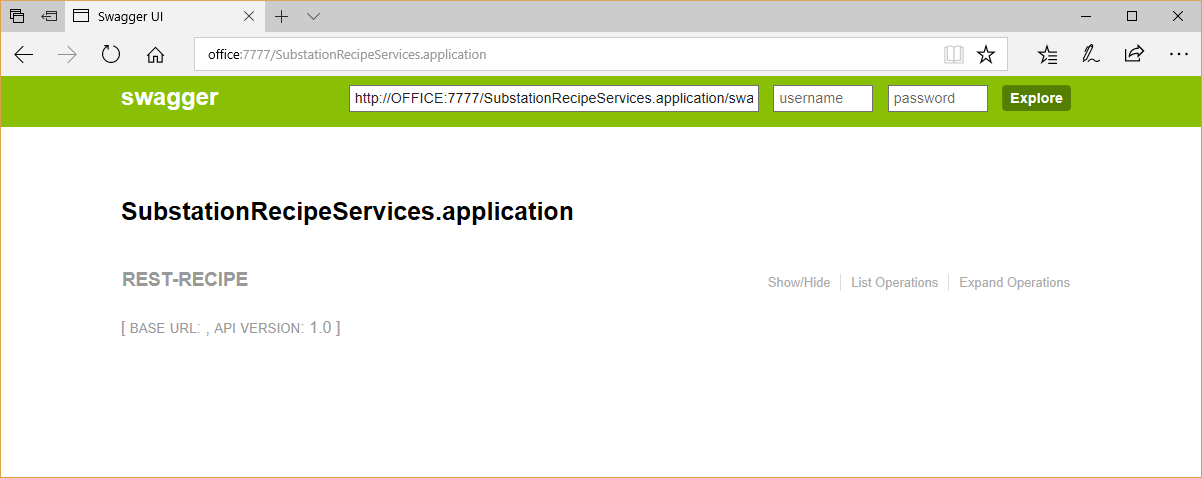

    4. Open this URL into a browser (use chrome or firefox)

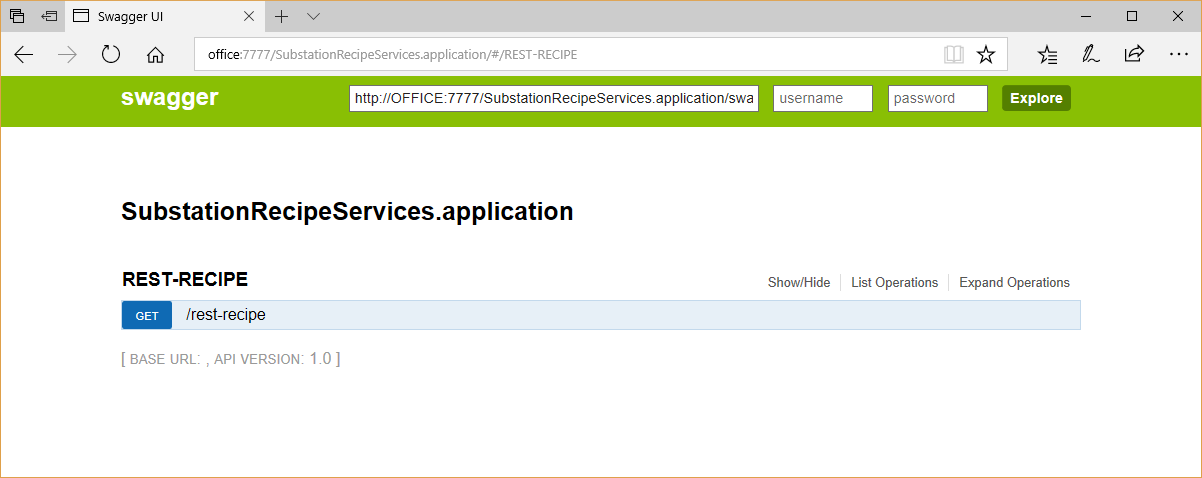

  3. Click REST-RECIPE.

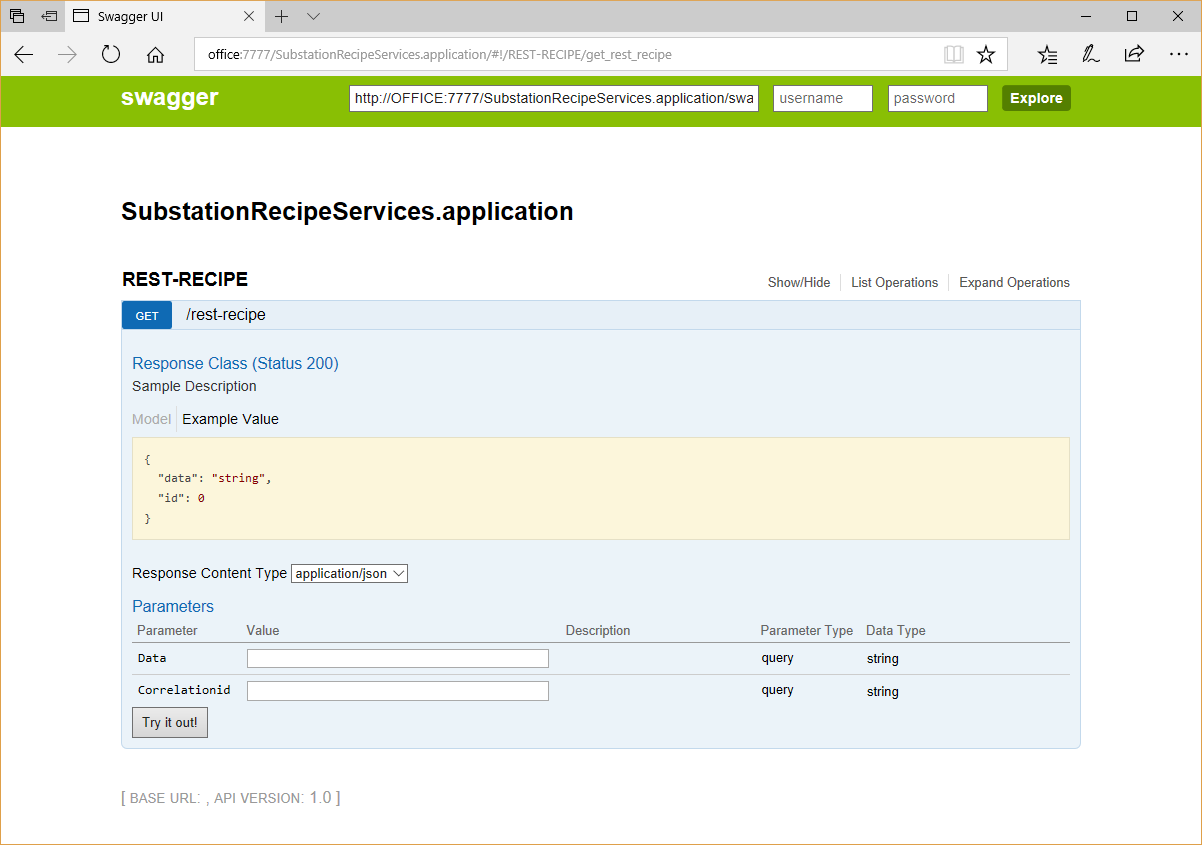

  4. Click Get.

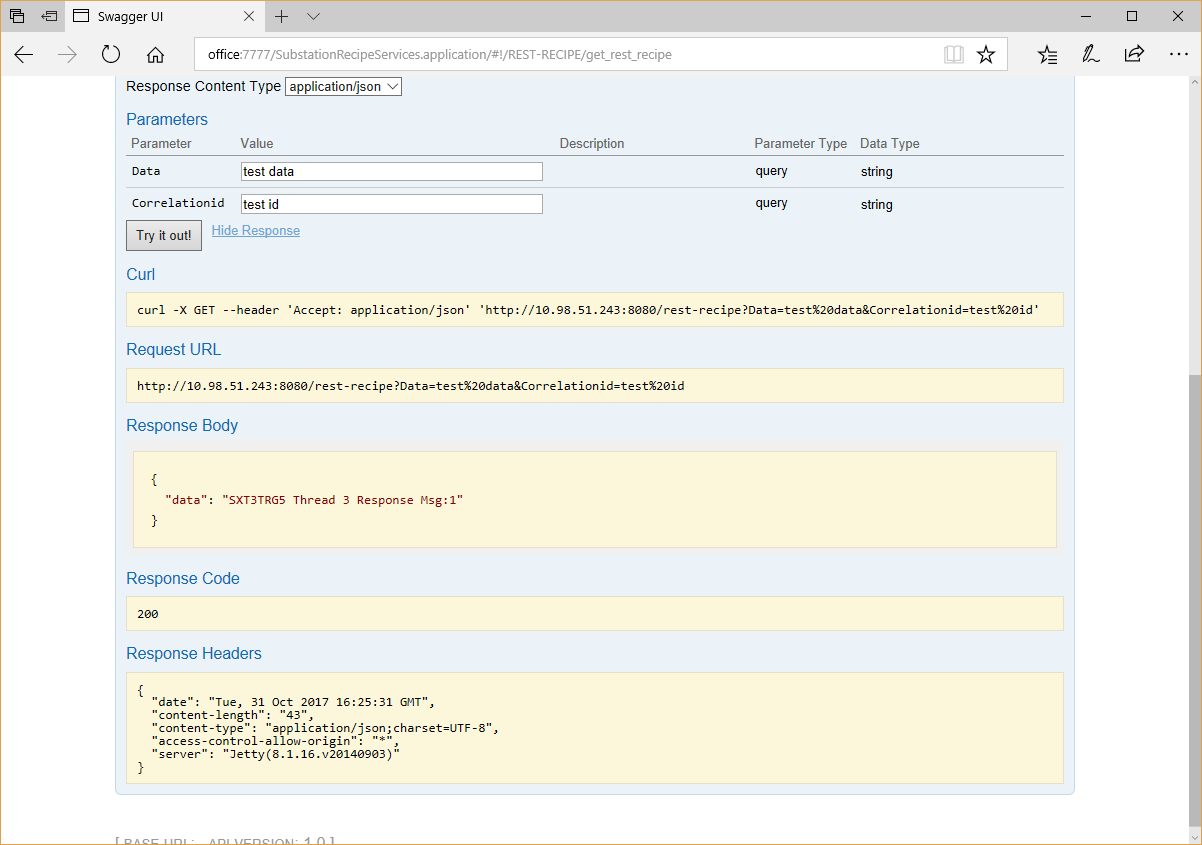

  5. Enter values in the Data and CorrelationId fields. Then, click Try it out!.

    This will initiate an HTTP-Rest get request to the BW process that will interface with Substation ES and return the response.
