Using JConsole

You can use any tool to view MBeans. The following is an example of using JConsole to monitor and manage ibi MDM.

Note: Before running JConsole, ensure that you start ibi MDM to view all MBeans.
    Procedure
  1. Navigate to $JDK_HOME/bin and double-click jconsole.bat.

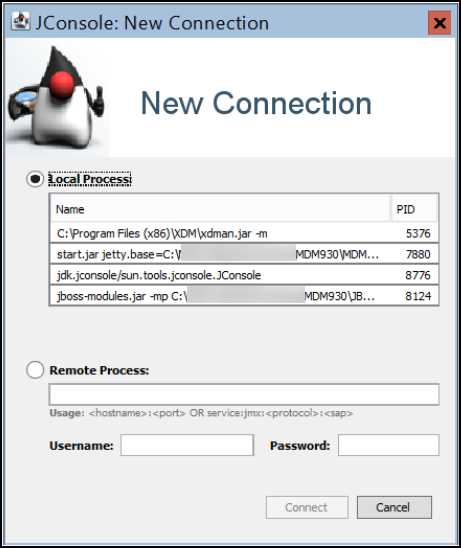

    The JConsole: New Connection window is displayed with the Local Process and Remote Process options.

    Local Process: If ibi MDM is running in on local Java Virtual Machine (JVM), it automatically establishes the connection and obtains information from the JVM MBeans in the connected JMX agent.
    Remote Process: Enter the host name and port or the JMX connection URL.

    Example for host name and port: localhost:57571/Member1. In this case, 57571 is the JMX port for the ibi MDM Server on localhost.

    Example for JMX connection URL: Type the following URL based on the configured application server:

    • For JBoss WildFly Application Server: service:jmx:remoting-jmx://IPAddress:9999
    • For WebLogic and WebSphere Application Servers: service:jmx:rmi:///jndi/rmi://hostname:portnumber/node_ID

    • Enter user name and password and click Connect.

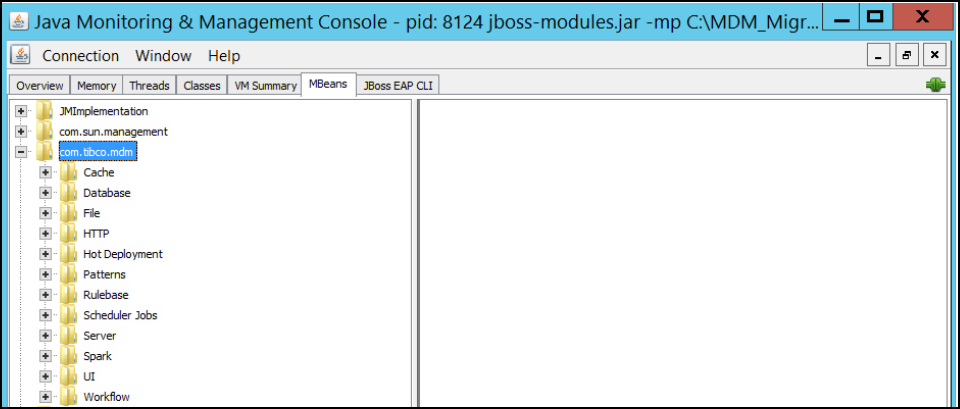

  2. In the Java Monitoring & Management Console window, click the MBeans tab.

    ResultAll MBeans names are located under com.tibco.mdm domain.
