Combining Two or More Attribute Groups into a Single Tab

Using this option, you can combine two or more attribute groups into a single tab and assign a tab name to the combined groups. Each group can be rendered within a collapsible section. You can also reorder the display of the groups.

1. To change the record UI rendering to combine two or more attribute groups into a single group tab, define the following XML in $MQ_COMMON_DIR/enterprise_name/htmlprops/recordui-render.xml.

   The sample XML is as follows:

   <recordui>

   <catalog id="123456">

   <grouptab>

   <group name="CombinedGroup">

   <item>AccoountDetail</item>

   <item>Location_Details</item>

   <item>Time_Details</item>

   <item>Availiability_Details</item>

   </group>

   </grouptab>

   </catalog>

   </recordui>

2. Save the XML file.

   The rendering definition file (recordui-render.xml) has the record UI rendering definition for each repository listed within the catalog element. Each combined group is listed within the <grouptab> element. Each attribute group listed within the <group> element is combined and displayed within a single tab. The order of item elements defines the order in which each group is displayed in the new tab.

   • The Record UI screen before combining the attributes groups.

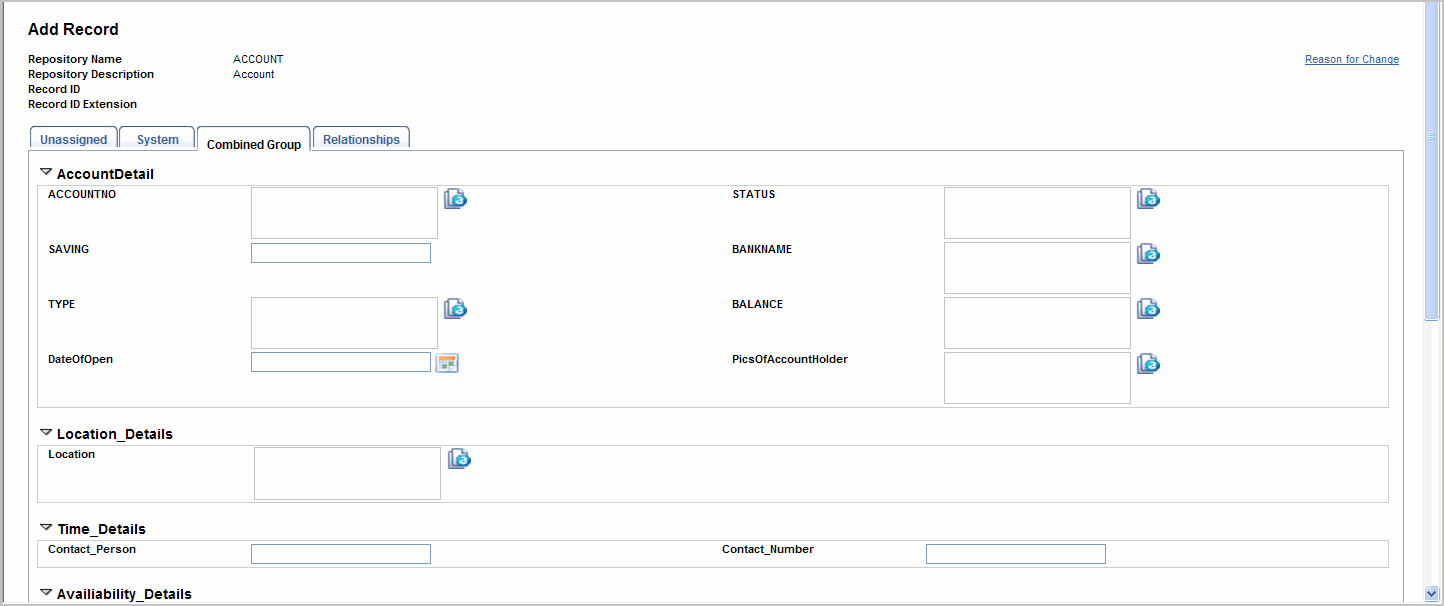

   • The Record UI screen after combining the attributes groups.
