Configuring ActiveMatrix BusinessWorks Project (Sample 1)

Before sending messages from the ActiveMatrix BusinessWorks project to TIBCO MDM, a few configurations are required.

Procedure

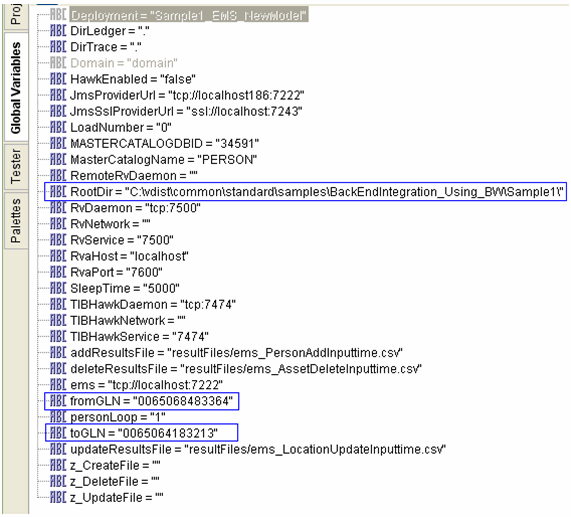

  1. Verify the global variables for the Sample1_EMS_NewModel project in the Designer window.
    1. Verify that the RootDir variable points to the directory where the ActiveMatrix BusinessWorks project is located. For example: $MQ_COMMON_DIR/standard/samples/BackEndIntegration_Using_BW/Sample1/
    2. Verify that the fromGLN and toGLN credentials match those provided in TIBCO MDM for the sender and trading partner.
    3. Verify that JmsProviderUrl points to the EMS on which TIBCO MDM is listening.
  2. Sending a Message
    1. In the Designer window, for the Sample1_EMS_NewModel project, click the Tester tab.
    2. Click Start testing viewed process.

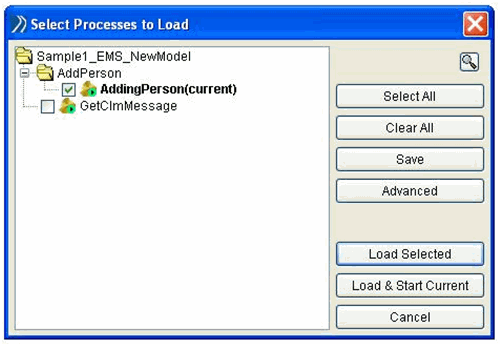

    3. Select the AddPerson process check box.
    4. Click Load Selected. A message to add a new record in the Person repository is sent on the preconfigured Q_CIM_CUSTOMIZATION_BK1_INBOUND_INTGR_MSG inbound queue. You can verify from the EMS admin console, that the message has been sent on the required queue.
  3. Processing Messages: the message sent by the ActiveMatrix BusinessWorks project is received by external queues. The external queues process the message using a chain of unmarshalers and marshalers, which is defined in the message processing pipeline. For more information, refer to Defining a New Pipeline for Incoming Integration Messages and Defining New Pipeline for Outgoing Integration Messages.

    Later, the external queues send the message to TIBCO MDM for further processing.

    1. The AddRecord event is executed.
    2. A Backend Record Add Notification event is created on the Event log screen.
    3. A new record is added to the Person repository.
    4. A response is sent on the Q_CIM_CUSTOMIZATION_BK1_OUTBOUND_INTGR_MSG preconfigured outbound queue after successful completion of the AddRecord event.
  4. Using workflow: the workflow file used for this implementation is: $MQ_COMMON_DIR/standard/workflow/wfin26BackEndIntegrationV1_Sample1.xml
