Starting the TIBCO MFT Command Center Service on Windows Automatically

You can set up an automatic start for the TIBCO MFT Command Center embedded application server on Windows systems.

Procedure

  1. Check whether the JAVA_HOME system environment variable is configured on your server.

    You can follow the following steps to set the variable:

    1. Open your System Properties window and click the Advanced tab.
    2. Click Environment Variables.
    3. In the Environment Variables window, search for the JAVA_HOME variable in the System variables panel.
    4. Set the JAVA_HOME variable to make it points to your Java JDK file. For example, C:\Program Files\Java\jdk1.8.0_66.

      If you cannot find the JAVA_HOME variable in the list, you must add the JAVA_HOME variable pointing to your Java JDK file.

      Note: If you created a new variable, you must restart the system before the new variable is recognized.
  2. Navigate to the MFTCC_Install\server\bin directory and stop your present TIBCO MFT Command Center application using the shutdown command.

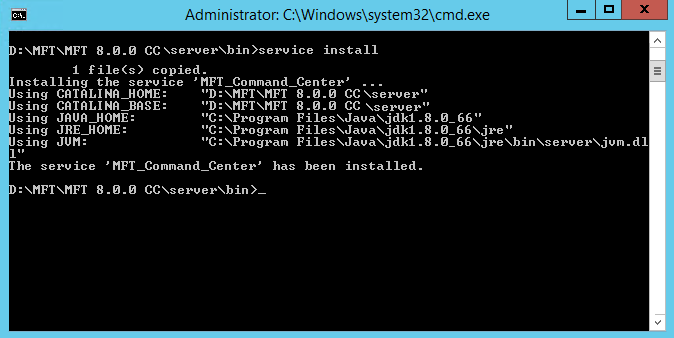

  3. Run the following install command from the same directory: service install.
  4. Choose the processor you are currently running with when you are prompted to do so.

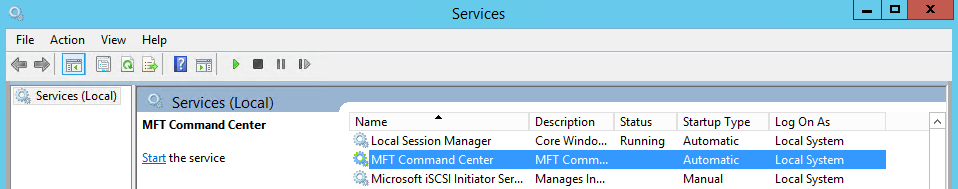

    After the script completes running, you can open your Services window and see the TIBCO MFT Command Center service listed as follows:

    Note: The TIBCO MFT Command Center service is installed by default using the Manual startup option.
  5. Restart Windows.
  6. Open the Services window, right-click TIBCO MFT Command Center and click Properties.
  7. Set Startup Type to Automatic and click OK.
    TIBCO MFT Command Center will start automatically at next startup of Windows.
