Server Status
The Server Status page displays status information about the servers that are monitored. The servers that can be monitored include Platform Servers, FTP servers, SSH servers, and AS2 servers.

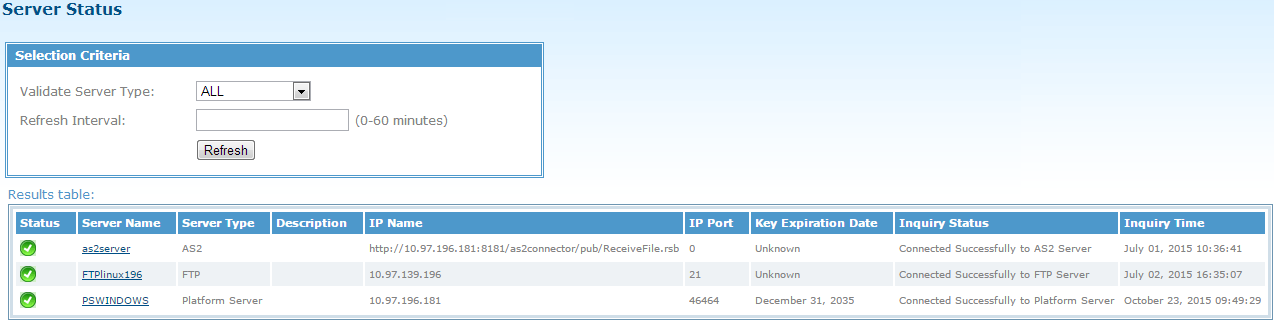

The following figure shows the Server Status page:
You can define selection criteria in the Selection Criteria section to limit the number of servers being monitored. By default, all servers that are not disabled are monitored.
The server status information of the server being monitored is displayed in the Results table. In the Status column of the Results table, the following four status colors are used to indicate different server status:
| Status Color | Description |
|---|---|
| Blue circle with a question mark | Indicates that server status requests are never attempted to this server. |
| Green | Indicates that the server is up and available.
For TIBCO MFT Platform Server, it also means that the server is at a level compatible with TIBCO MFT Command Center functions and is configured to accept the functions. |
| Yellow (only for TIBCO MFT Platform Server) | Indicates that the server is available, but the server is not at a level compatible with TIBCO MFT Command Center functions, or is not configured to accept TIBCO MFT Command Center functions (nodes defined in TIBCO MFT Platform Server for TIBCO MFT Command Center). |
| Red | Indicates that the server is down. MFT cannot connect to the IP name and port defined in the server definition. |
To view the details of a server, click the server name of the server and the Server Status Detail page is displayed.

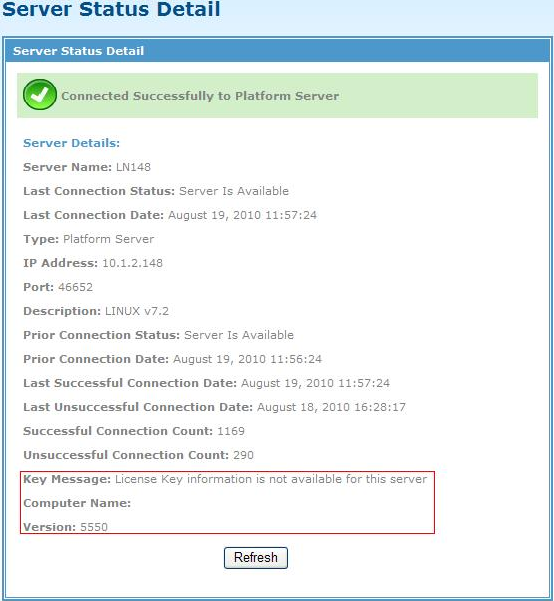

The following figure shows a sample Server Status Detail page:
One of the server status features is to display the license information of a Platform Server, the name of the computer on which the server is installed, and the current version of the Platform Server. If the license key of the Platform Server will expire in 30 days, an email will be sent to the recipient email address defined on the Configure Status Service page which can be accessed by clicking . As new versions of Platform Server are released, this information will be updated; and until that time these parameters might not display the correct information.
