Host Status

The Host Status page displays performance information for each Internet Server or Command Center host instance.

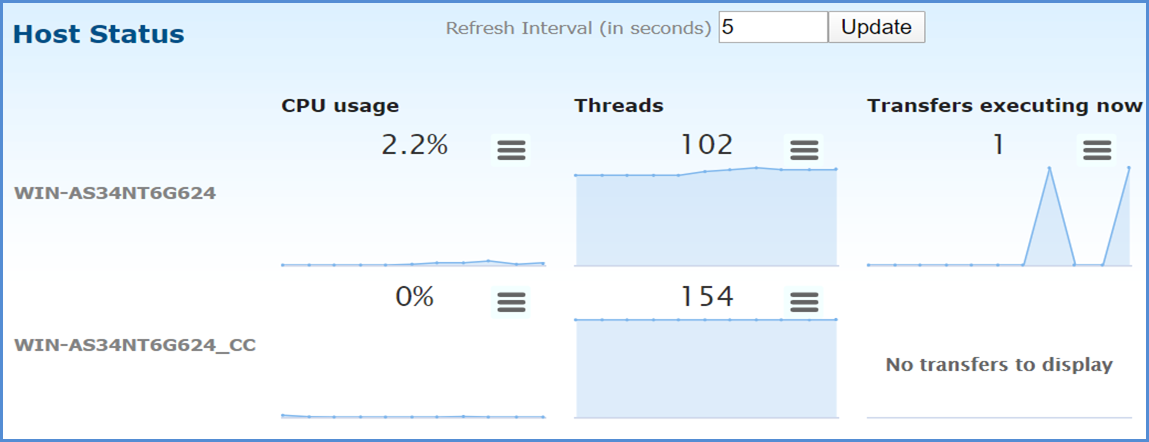

Three line charts are displayed for each host.
Chart Description
CPU Usage Defines the CPU % used by the Internet Server or Command Center host.
Threads Defines the number of threads used by the Internet Server or Command Center host.
Transfers executing now Defines the number of transfers executing on the Internet Server host. Since Command Center does not execute transfers, this line chart is not displayed for Command Center.

The Refresh Interval (in seconds) defines how frequently the dashboard is updated. This applies to all dashboards on this page. Set the interval and click the Update" button to change the refresh interval.

Each line chart in this dashboard has three lines in the upper right hand corner. If you click on this icon and select Zoom, a zoomed version of the dashboard is displayed. Clicking on the three lines in the zoomed chart allows you to do the following: Print the chart or download the chart as a PNG file, JPEG file, PDF file, or SVG file.
