Updating CMS Configuration Information

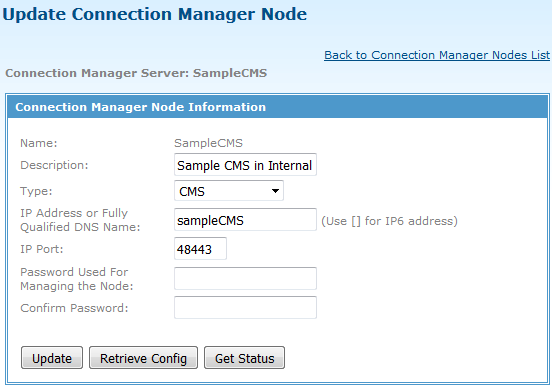

After clicking SampleCMS, the Update Connection Manager Node page is displayed with the information entered on the Add Connection Manager Node page.

You can click Update to update the connectivity information for this CMS.

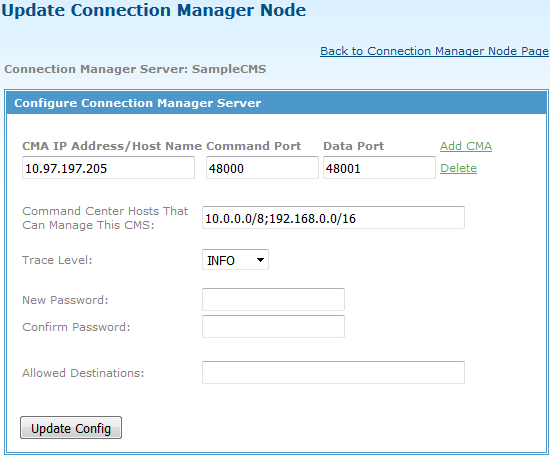

You can click Retrieve Config to retrieve the Connection Manager configuration parameters for this node. The following page is displayed.

This page displays the configuration information for the Connection Manager node. You can update parameters and click Update Config to update the configuration.

If you update the New Password field, make sure to update the password on the Update Connection Manager Node page.

Note: When updating the Command Center Hosts That Can Manage This CMS field, make sure that you correctly define the IP address or subnet of TIBCO MFT Command Center. Otherwise, you might be unable to manage the Connection Manager node through TIBCO MFT Command Center. If this happens, you need to update the configuration .xml file described in Connection Manager Configuration Files and then manually restart the CMS server.

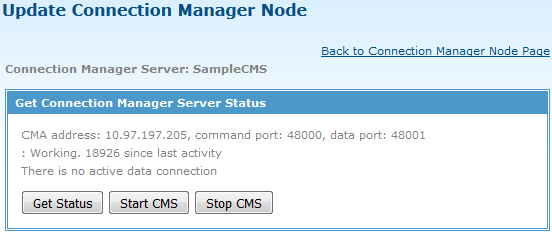

When you click Get Status, the following page is displayed showing the current status of the Connection Manager node.

In this page, you can perform the following functions:
  • Get Status: updates the CMS status.
  • Start CMS: starts the CMS server.
  • Stop CMS: stops the CMS server.
