Internet Server Transfers

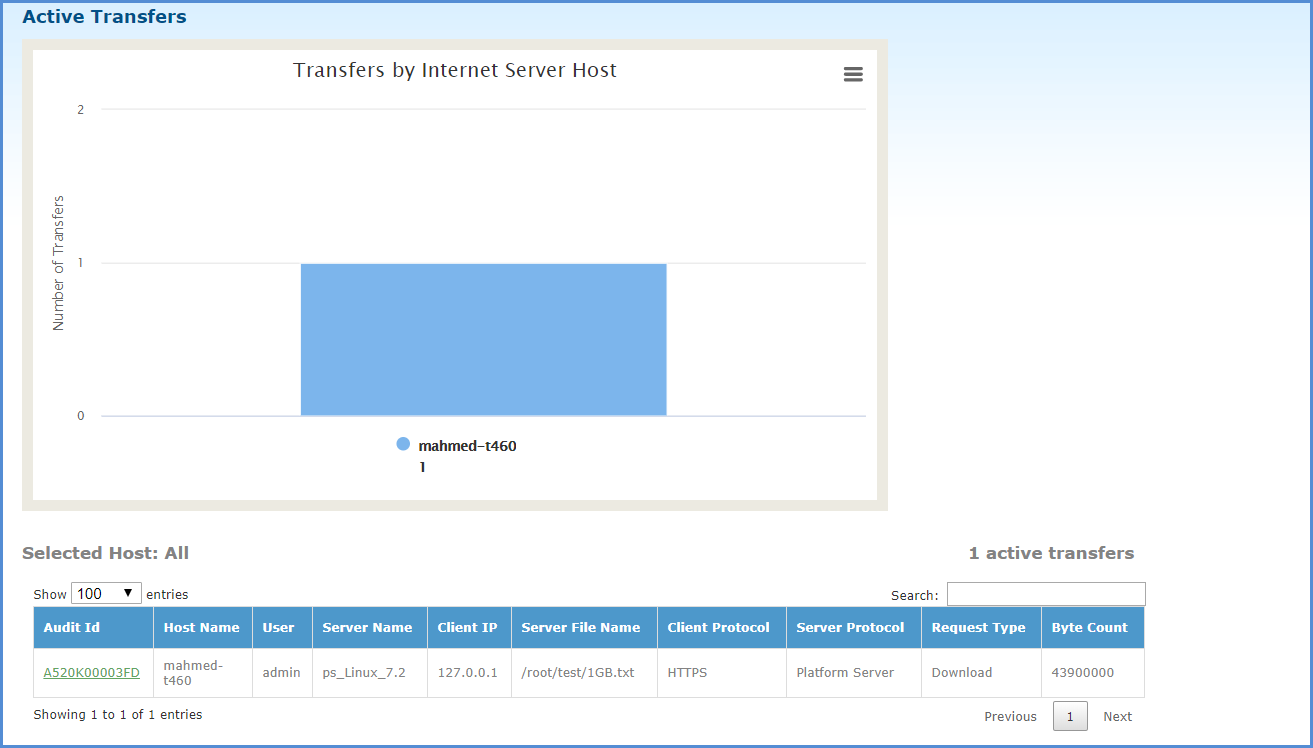

This page allows you to view transfers executing on all Internet Server instances. It displays a bar chart that consists of the number of active transfers on each Internet Server instance; one bar is displayed for each server instance. A list of all active transfers running on all servers is displayed in the "Active Transfers" table.

The Selected Host field shows the servers that are selected and the number of active transfers for these servers is shown on the right. By default, active transfers for all servers are displayed. If you click on a server's bar, the active transfers from that server are displayed. In addition, you can filter transfers by entering any text in the Search box. By default, up to 100 active transfers can be displayed. You can change this value in the "Show xx entries" box.

Summary information about currently executing transfers for the selected servers is displayed in a table at the bottom. To see detailed information about a transfer, click on the Audit Id of a transfer in the summary table. A pop-up page opens with details about the active transfer. When you click the Refresh link, you can track an active transfer until it completes.

The following fields are included in the summary table:
Field Description
Audit Id Displays the audit ID. When a transfer has completed, this field becomes a link. When you click on this link, the Audit Details page for this transfer opens.
Host Name Defines the host name.
User Defines the user.
Server Name Defines the MFT Server name associated with the transfer definition for the currently executing transfer. If you click on the server name, the Update Server page opens.
Client IP Defines the IP address of the client that initiates the transfer.
Server File Name Defines the server file name.
Client Protocol Defines the client protocol.
Server Protocol Defines the server protocol.
Transfer Id Displays the transfer ID associated with this transfer. When you click on this link, the Update Transfer page opens.
Start Time Defines the time when the transfer started.
End Time Defines the time when the transfer completed. For currently active transfers, this field is left blank.
Byte Count Defines the number of bytes transferred.
Bytes/Second Defines the bytes per second since the transfer started.
Request Type Defines whether the request is an upload or a download.
Client File Name Defines the client file name.
