Architecture

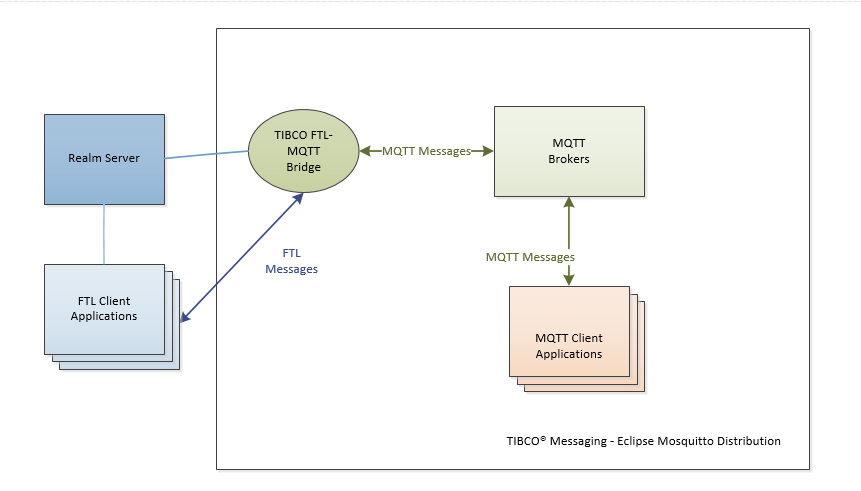

This diagram illustrates the interactions among the parts of TIBCO Messaging - Eclipse Mosquitto Distribution.

Message Flow

For more information, see Marshalling Messages from MQTT to FTL and Marshalling Messages from FTL to MQTT.

Components

The diagram shows the following components:

  • TIBCO FTL (6.0 or later)
    • TIBCO FTL Realm Server (also called FTL Server)
    • TIBCO FTL Client Applications

  • TIBCO Messaging - Eclipse Mosquitto Distribution Core package

    • Eclipse Mosquitto MQTT Broker
    • Eclipse Mosquitto sample programs
    Note: MQTT client libraries are not included in theTIBCO Messaging - Eclipse Mosquitto Distribution Core package.
  • TIBCO Messaging - Eclipse Mosquitto Distribution Bridge
    • TIBCO FTL-MQTT Bridge
    • FTL and MQTT Go sample programs
