Add a hint

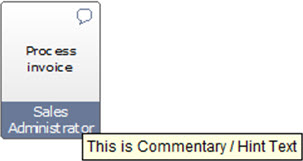

Hints can be added to free text, images, attachment logos, drill down icons and notes to provide extra information to users when they hover the mouse over specific object.

Note: If you do not want the hint to be displayed until a later date then clear the Show Hint check box. When text is highlighted you can embolden (Ctrl+B), italicize (Ctrl+I) or underline (Ctrl+U) it.

TIBCO Nimbus® allows processes to be created to support multiple languages by allowing diagram hint text to be defined in different languages (the available languages are set by an Administrator in the System Options). The object text that is displayed will depend on the user's PC locale; the default language will be displayed if a user's PC locale is set to a language that has not been defined for a particular object.

To specify text for an additional language select Show additional language text entry panel, then choose the language from the Language drop-down list and enter the text in the box below. Repeat this step for any other languages that you want to define.

Note: If a language appears in red then the language variant is not supported in the current process repository.

Hint: To test how a diagram looks in a different language, from the View menu choose Switch Language and then choose a language to display.
