Link from an activity

Diagram links provide links from an activity to another diagram within the same process map or a different process map.

1.	Right-click the activity and choose Link Diagram.

2.	From the Process Maps panel choose the process map that holds the diagram that you want to link to.

3.	From the Diagrams panel select the diagram that you want to link to.

Note: Choose from drafts, masters or scenarios from the Diagram drop-down list.

4.	Modify the text in the Link Text box, if required.

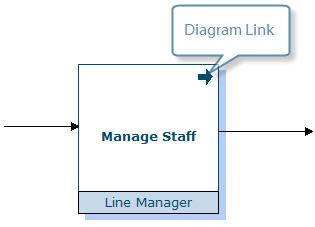

Note: This is the text that will appear when users hover their mouse over the icon on the activity.

Click OK.

Linking Tips

In the Diagram Selector dialog you can jump to a specific level in a map by entering the level number in the Level Select box and clicking Go.

You can cut, copy and paste diagram links between objects, or drag the link into a space to create a signpost.

To add multiple diagram links, right-click the activity and choose Attachments/Links. Click New and choose Diagram Link.
