Handle Plan Item In Error

The Handle Plan Item In Error marks failed plan-items with an ERROR state and allows the user to select an appropriate action for the failed plan-item.

The request message format is:

Handle Plan Item In Error Request Data Model
Element Name Element Type Description
orderID String (Mandatory) The ID of the order generated by Order Management Server. This must be an exact match.
planID String (optional) Plan ID of the plan generated for the order.
orderRef String (optional) The client order reference ID.
planItemID String Unique Id identifying the plan Item.
errorResolution String RETRY

RESUME

COMPLETE

MOPD

errorResolutionComment String (optional) Any String based user input.

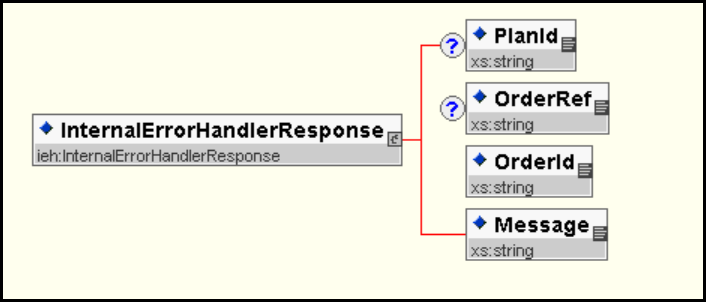

The reply message format is:

Handle Plan Item In Error Response Data Model
Element Name Element Type Description
orderID String The ID of the order generated by Order Management Server.
planID String Plan ID of the plan generated for the order.
orderRef String The client order reference ID.
message String Internal error handler service initiated.
