Feasibility Response

Feasibility Response is an event sent by Feasibility Provider back to the Orchestrator in response to a Feasibility Request event. It is a reply event to a JMS/REST.

The response for feasibility has completed and passed flags. Orchestrator routes the order lifecycle based on the returned value of these flags. The two flags can be used to distinguish between technical and business exceptions. For example, a failure to complete generally indicates a technical exception, so complete is false. A validation failure indicates a business exception, where complete is true, but passed is false.

Completed This flag indicates whether the feasibility call completed. If this is set to true, the passed flag becomes relevant.
Passed This flag indicates whether the order has passed feasibility.

Based on different scenarios, these flags must be set as follows:

Completed Passed Description
Technical Error False False True Orchestrator refers the order to the Pre-Qualification Failed Handler if error handling is enabled for feasibility, or the error is withdrawn if error handling is not enabled.
Business Error True False Orchestrator refers the order to the Pre-Qualification Failed Handler if error handling is enabled for feasibility, or the error is withdrawn if error handling is not enabled.
Success True True The processing continues as normal.
Event Type Reply event
Queue or Topic Queue
Destination tibco.aff.orchestrator.provider.order.feasibility.reply

The event has the following property:

Property Type Cardinality Description
originator String Optional The value of the originator property in the FeasibilityRequest message, received from the Orchestrator, which must be mapped and sent back in the response message.

The event has the following payload:

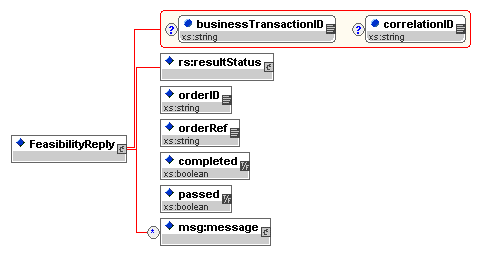

Feasibility Response

Feasibility Reply

The following table lists the details of the elements.

Element Type Cardinality Description
businessTransactionID String Optional Unique identifier for tracing purposes across function calls.
correlationID String Required Unique identifier to correlate the request message with a response message. Even though this field is marked as optional in the response schema, it is required for Orchestrator can correlate the response with the correct version of the submitted order. Populate this field the same as correlationID in the request message.
resultStatus Type Required

Result status type. See Appendix A for the specification of this type.

orderID String Required Order ID for the order that was feasibility checked.
orderRef String Required Order ref for the order that was feasibility checked.
completed Boolean Required Flag indicating whether the feasibility call completed.
passed Boolean Required Flag indicating whether the order has passed feasibility.
message Type 0-M Message type. See Appendix A for the specification of this type. This list of messages is passed to the Pre-Qualification Failed Handler if invoked.
