Receive grid events

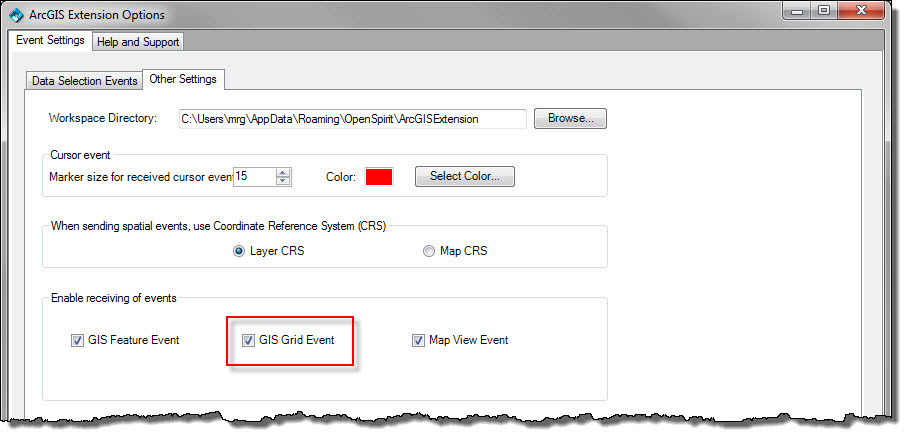

ArcGIS is enabled for listening to grid events An OpenSpirit event that contains a grid of values normally representing the time or depth of a geologic surface. A receiving application will display the received surface. as long as the lightening bolt is enabled on the OpenSprit toolbar and the "GIS Grid Event A message sent between OpenSpirit enabled applications. Events may be shared between applications running on different computers and operating systems." option is chosen in the options dialog:

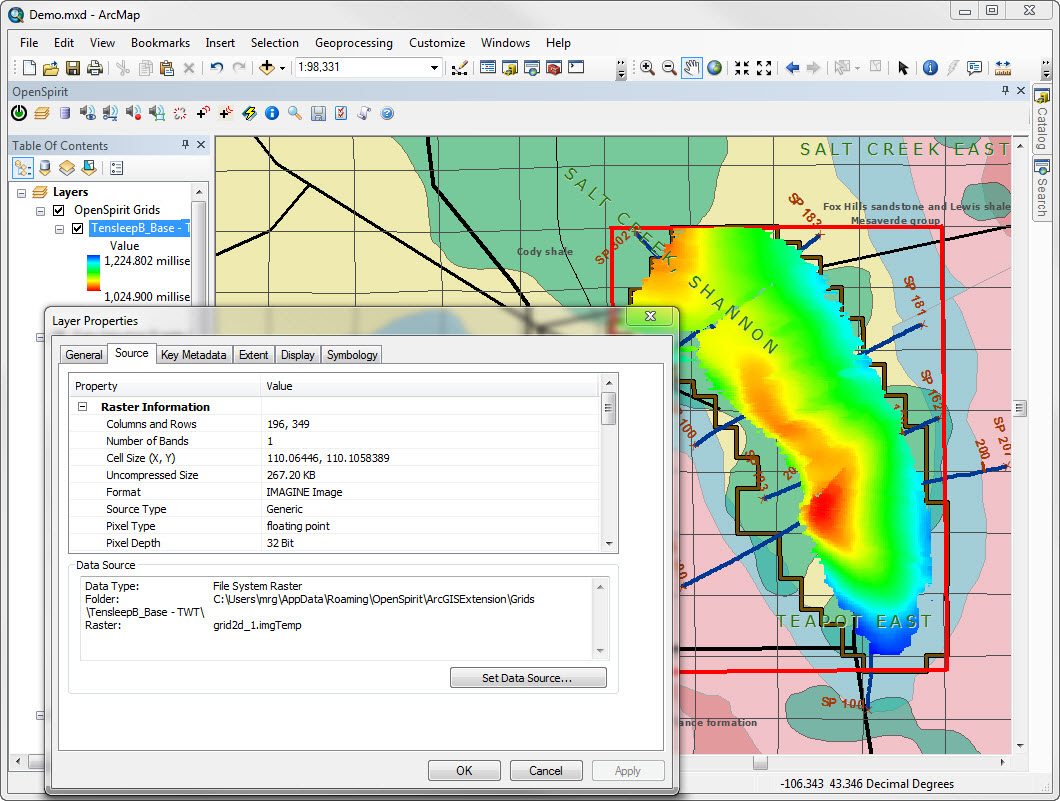

When a grid event An OpenSpirit event that contains a grid of values normally representing the time or depth of a geologic surface. A receiving application will display the received surface. is received a new raster feature will be created and added to the map with a default rainbow color scale:

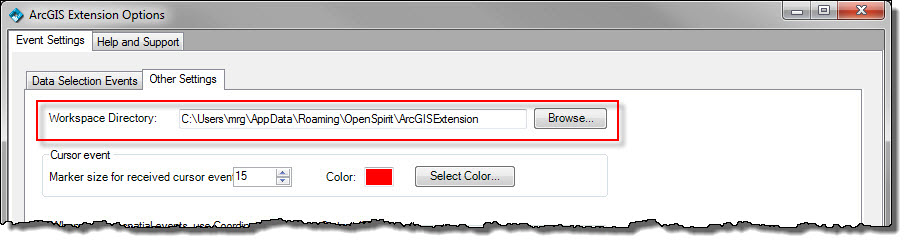

The raster feature will be written to disk as an IMAGINE image in a working directory specified in the OpenSpirit options dialog (default in the users home directory):

The created raster feature will have the CRS A Coordinate Reference System as set on the grid event An OpenSpirit event that contains a grid of values normally representing the time or depth of a geologic surface. A receiving application will display the received surface. by the sending application.  If the raster feature CRS A Coordinate Reference System has a datum that differs from the current map display CRS A Coordinate Reference System datum and a suitable transform is not already set in the ArcGIS project, the user is prompted to select a transform from a list based on the EPSG database used by the OpenSpirit coordinate service.  If the CRS A Coordinate Reference System has a list of fall-back transforms, the user will be prompted to select one to use; otherwise, the preferred transform on the CRS will be set on the ArcMap map. Tthe details of the EPSG parameters may be shown in order to help guide this transform selection.
