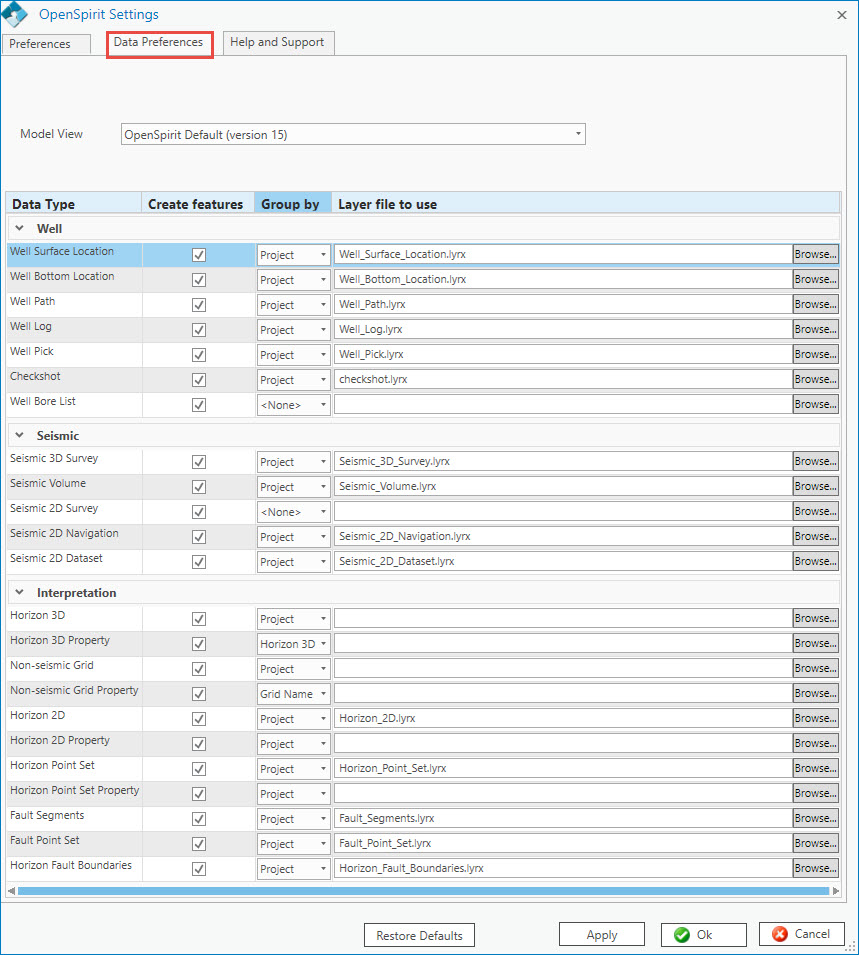

The Data Preferences tab controls if feature classes are created and how layers are grouped, when data is loaded via OpenSpirit Scan Utility output or via the Import from Data Source mechanism.
The contents of this tab is controlled by a pre-loaded Model View, that is installed when the plug-in is first installed. This model view can be customized using the Model View Manager available in the OpenSpirit Desktop.
This column describes the entity name in the model view.
This column consists of a toggle switch, toggling on p means a layer will be created when a datakey is received for that data type.
This column provides the option to add all the layers for the selected data type into a common folder. The selection menu is determined by the model view display parameter.
This column shows the symbology file that is being uses to draw the data objects on the map. The extension bundles a default set of files bases on the default ArcGIS model view.
