The ArcGIS Pro add-in for TIBCO OpenSpirit® requires ArcGIS Pro version 2.3 or higher and TIBCO OpenSpirit® Runtime version 4.3.0 with Runtime HotFix02. The add-in is supported on operating system platforms that are supported by ArcGIS Pro and the OpenSpirit Runtime. Both of these products must be installed prior to installing the add-in.

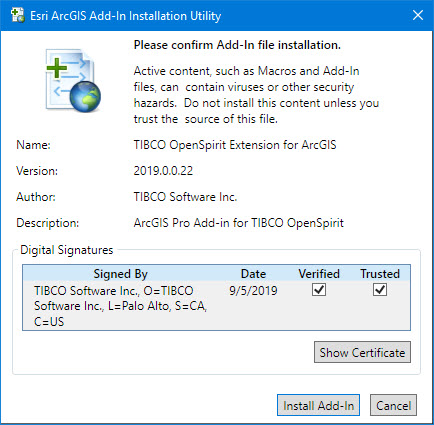

The ArcGIS Pro add-in for TIBCO OpenSpirit® is delivered as an ArcGIS Pro add-in file. Download the OspExtension.esriAddinX add-in file to a local file folder and double click on it to install the add-in. This will display the Esri ArcGIS Add-In Installation Utility window.
Click on the Install Add-In button to install the add-in. The OpenSpirit tab should appear in the ArcGIS Pro tool bar the next time ArcGIS Pro is run after installing the add-in.

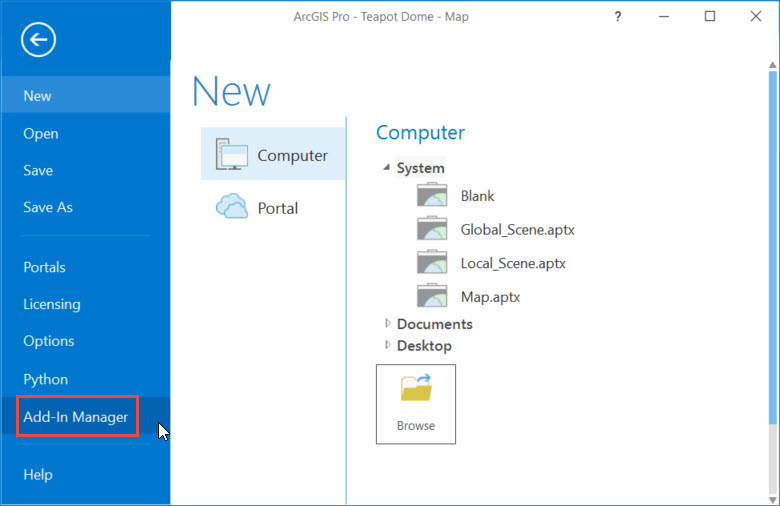

The ArcGIS Pro add-in for TIBCO OpenSpirit® is uninstalled using the ArcGIS Pro Add-In Manager. Click on the Project tab in the ArcGIS Pro tool bar, then click on the Add-In Manager option.

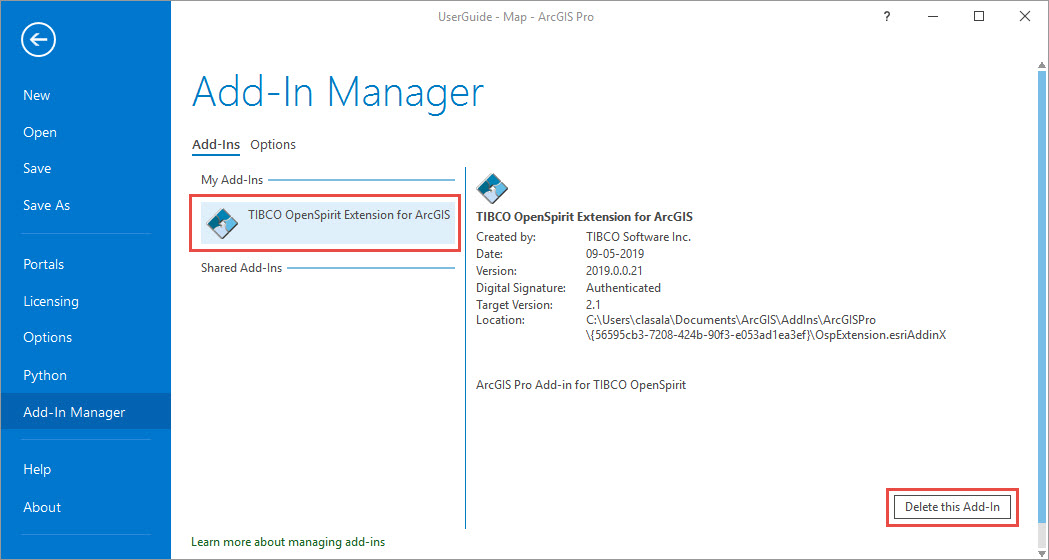

This will open the Add-In Manager window. Select the TIBCO OpenSpirit Extension for ArcGIS add-in and click on the Delete this Add-In button in the lower right corner of the window.
This will uninstall the add-in. ArcGIS Pro must be restarted after uninstalling the add-in.
