When the OpenSpirit Data Manager dialog is first opened it displays the summary tab which shows a summary of the Petrel object types that are supported by the OpenSpirit Adapter. As illustrated in the window below, you can see the total number of objects, by type, within the current Petrel project as well as the number which have OpenSpirit datakeys. An OpenSpirit datakey is a link between a Petrel object and an external project. A Petrel object will have an OpenSpirit datakey if:
It has been linked to an external project via the OpenSpirit Adapter.
A datakey is valid if the project that it links to is still available and the referenced data item is still in the external project. If the valid keys column contains "n/a" it means that no attempt has been made to query the linked project so it is not known whether the key is valid or not.

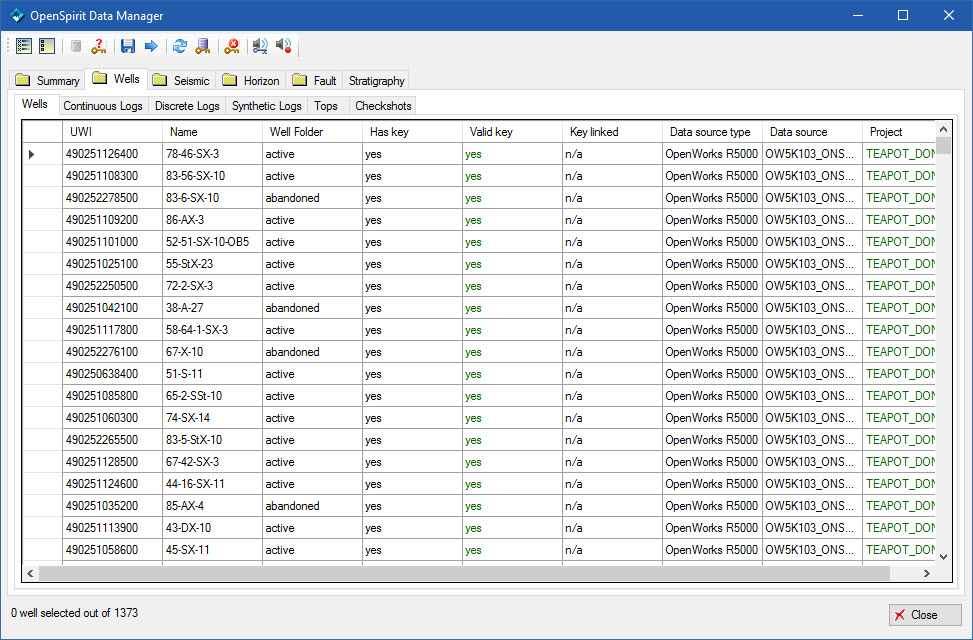

Clicking on the Wells, Seismic, Horizon, or Fault tab allows you to then see a detailed listing of individual objects of a given type:
