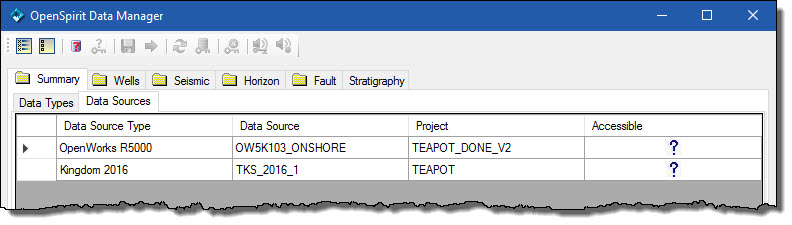

OpenSpirit datakeys contain a reference to the linked project and a reference to the individual data item within that project. In order to refresh or to export the Petrel object to the linked project, the external project must be accessible for the current Petrel user. This accessibility may be checked by clicking on the Summary-Data Sources Tab (illustrated below):

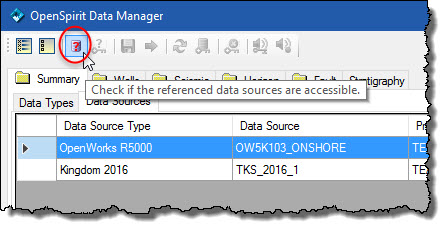

The "Accessible" column will initially show "?" until you verify the data source by selecting it and clicking on this icon:
When this icon is clicked, the OpenSpirit Adapter will make a simple query to the referenced project to verify that it is still accessible.
Note: It may take 10-60 seconds to execute this query if this is the first time this project has been accessed in this Petrel session as a remote OpenSpirit data connector process will need to be started.

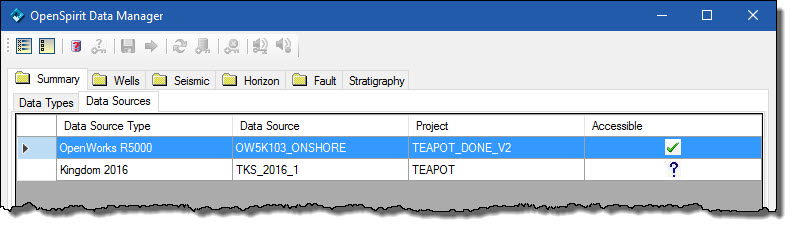

The project will be shown with a green check if it is verified as being accessible:

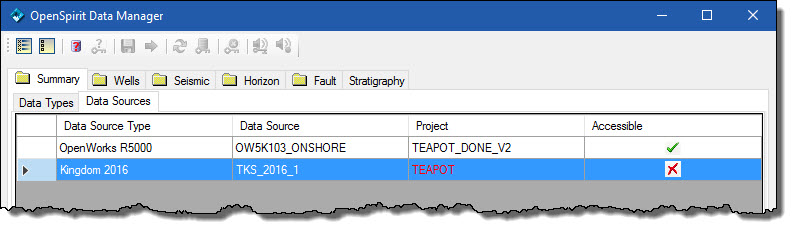

The project will be shown with a red X if it is not accessible:
The likely causes of this are listed in the tool tip as:
If the project is not accessible then you will not be able to refresh from, link to, or export to this data source.
