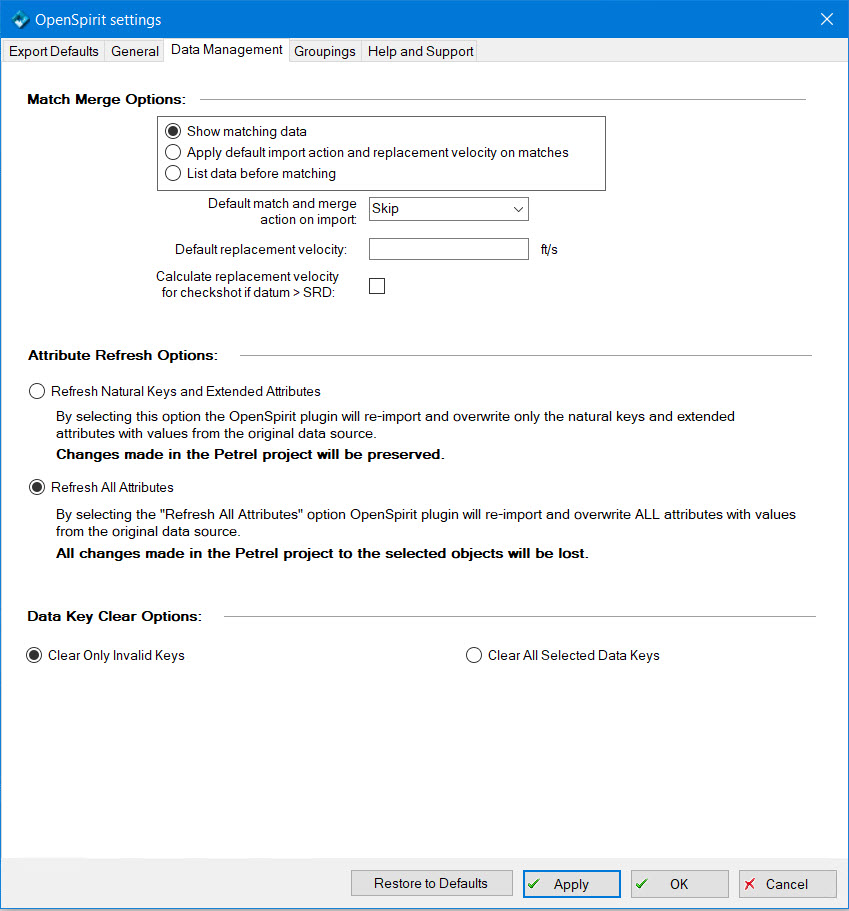

This tab controls the behavior of the OpenSpirit Data Manager.
The match merge options control the match merge behavior when processing received data selection events, drop events, or loads from a Studio Find index search result.
Selecting this option causes the Import Match and Merge window to display matches when attempting to import data that matches data that is already in the Petrel project.
Selecting this option prevents the Import Match and Merge window from appearing. The default match and merge action selected on this same panel is applied to all the imported data that matches data already in the project. The default replacement velocity entered on this same panel is also used to adjust any seismic reference datum mismatches.
Selecting this option causes the Import Match and Merge window to display all data to be imported. All data to be imported is displayed whether it matches data already in the project or not.
This option sets the action that will be pre-selected in the Import Match and Merge window for each matching row. The default can be set to Overwrite, Add as new, or Skip.
Default replace velocity is the velocity to use if the SRD of any imported time data is different from the Petrel project's SRD. This value will be used as the default in the replacement velocity prompt window that is displayed. The value is also used if the option "Apply default import action and replacement velocity on matches" is selected and the replacement velocity prompt window is not shown.
Selecting this option results in the replacement velocity value for imported checkshots having a datum greater than their SRD to be calculated using the checkshot's TVD and TWT. The "checkshot to seismic datum" value will be ignored, even if it is available. This option should be used if the checkshots are coming from GeoFrame and the checkshot's "elevation at time zero (ETZ)" is greater than the SRD.
The attribute refresh options control behavior of the refresh feature in the OpenSpirit Data Manager and in the context menus for data items in the Petrel input tree that were imported using the OpenSpirit adapter.
Selecting this option causes a refresh to only change the attributes of the Petrel objects that are used for import matching, and any OpenSpirit_Properties that are not part of the Petrel data model. Refresh can only be performed on 3D seismic volumes when this option is selected.
Selecting this option causes a refresh to change all the information maintained in the Petrel object, including any unsaved changes made to the Petrel object.
The data key clear options control the behavior of the Remove OpenSpirit Keys operation in the OpenSpirit Data Manager.
Selecting this option causes only invalid data keys to be removed even if data items with valid keys are selected when the remove icon is pressed. Keys are not removed from selected data items that have valid keys.
Selecting this option causes data keys to be removed from all selected data items without regard to the validity of the keys. Keys are removed from selected data items that have valid keys.
