Viewing Infrastructure Components Status

Infrastructure components are TIBCO components, which are required for connectivity between data plane and TIBCO Control Plane. Infrastructure components are also required to manage and monitor data plane by using TIBCO Control Plane. When you register a data plane, Infrastructure components get deployed in your Kubernetes cluster. The following statuses are applicable to only Kubernetes data planes and not non-kubernetes data planes.

    Procedure
  1. In TIBCO Control Plane Home page, on the Data Planes Running card, click View status in detail.
  2. Click the data plane card.

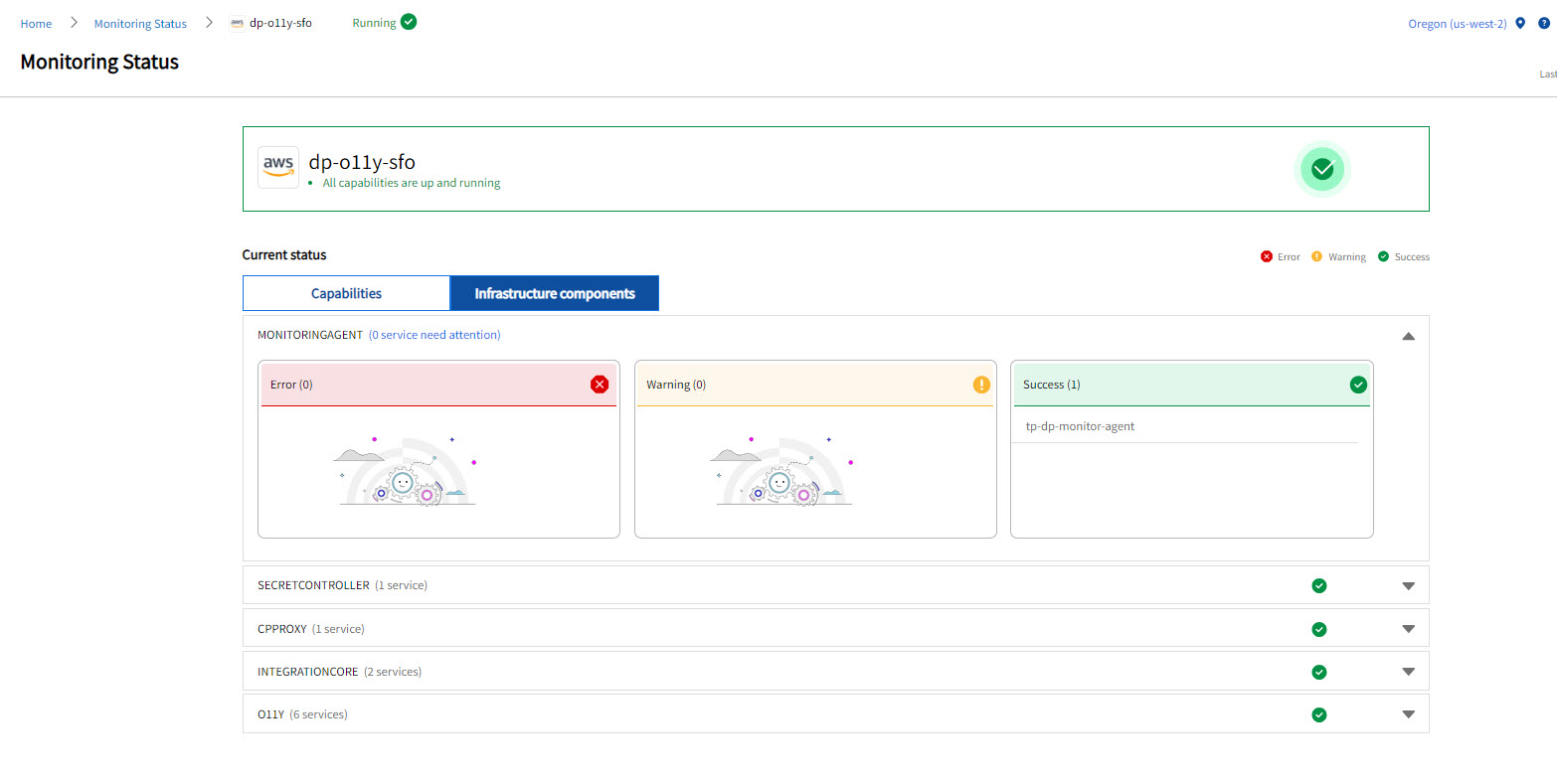

  3. Click the Infrastructure components tab.

Note: Do not remove the infrastructure components from your cluster. Infrastructure Components must be in running state to monitor and manage data plane by using TIBCO Control Plane.

The following table displays the possible health status values for infrastructure components:

Status Description
Success Infrastructure component is in running state with desired number of replicas.
Error If none of the Infrastructure component replica is in running state, the status is error.
