Registering a Bare-Metal Data Plane

You must register your Bare-Metal Data Plane before you start using the different TIBCO® Control Plane capabilities. Use the following steps to register your single micro-kubernetes cluster on the Bare-Metal Data Plane.

Procedure
1. In TIBCO Control Plane, click the Data Planes menu on the sidebar.
2. Click Register a Data Plane.
3. On the Bare-Metal Data Plane card, click Start.
4. On the Prerequisites screen, refer the workshop link for setting up a single Kubernetes cluster on MicroK8s and preparation for provisioning a Bare-Metal Data Plane on TIBCO Platform that supports Linux.

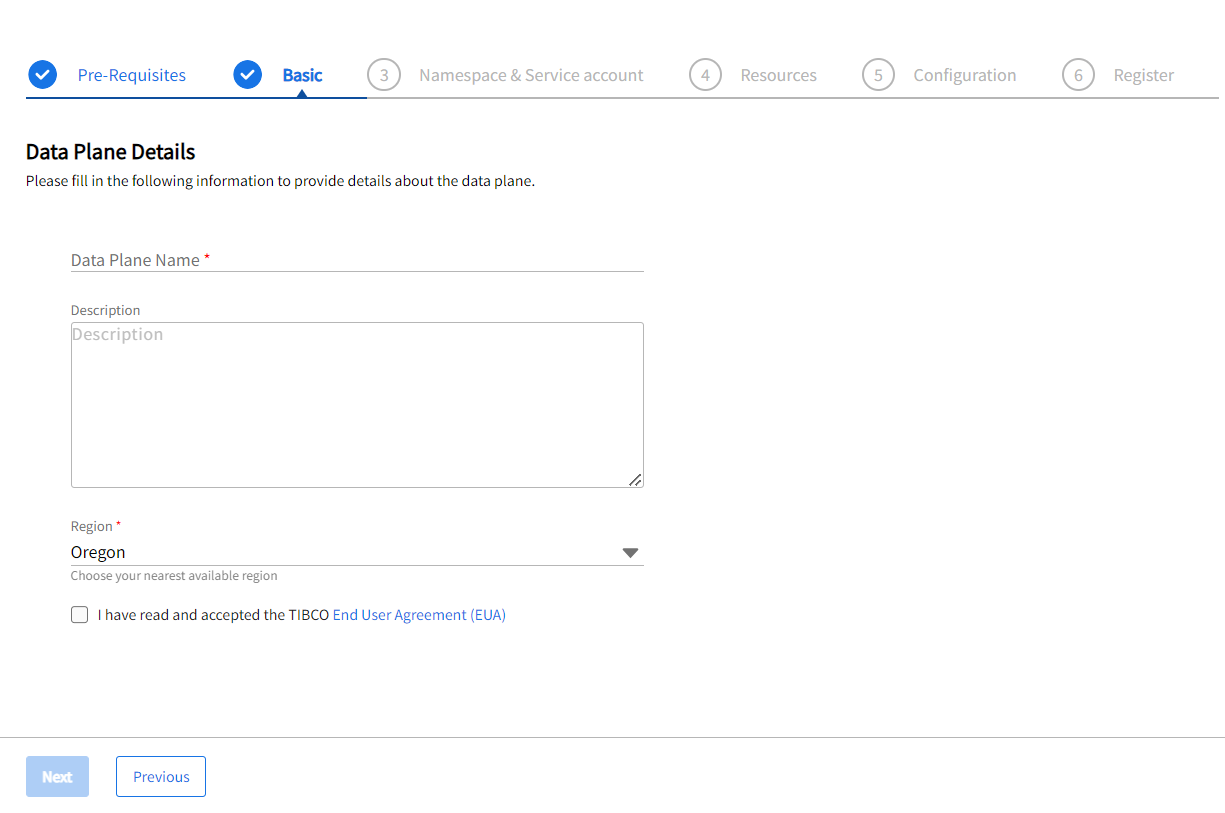

5. On the Basic screen, provide the Data Plane Name, the Description, the Region from the dropdown list.



6. You must select the EUA checkbox before proceeding.

7. On the Namespace & Service account page, specify the following details.

Field	Description
Namespace	Namespace in which you want to deploy infrastructure components and capabilities. If the namespace is not already created, you can create it by running the command on the last screen of the wizard.
Service Account	Specify the Kubernetes Service account name. The service account is used when deploying infrastructure components and capabilities. If the service account is not already created, you can create it by running the command on the last screen of the wizard.
Enable or disable the cluster scope permissions for RBAC	By default, the service account has cluster-scope permissions. If you do not want service account to have cluster-scope permissions, disable the Allow cluster scope permissions option. If cluster-scoped permissions are disabled, cluster-scoped RoleBindings are not created. It creates namespace scoped Role and RoleBindings, which only apply to resources in every namespace. For more information, see Data Plane RBACs.

8. On the Resources page, specify the following details:

   Storage Class: The host storage class provides persistence for TIBCO services running inside the bare-metal data plane.

   Field	Description
   Resource Name	The name of the resource.
   Description	The description of the resource.
   Storage Class Name	The name of the storage class that you want to use to provision file storage.

   Ingress Controller: An Ingress Controller acts as a reverse proxy and load balancer. It implements a Kubernetes to route and accept requests to send data or notifications from outside the Kubernetes system and load balancing to the TIBCO services running inside.

   Field	Description
   Resource Name	The name of the resource.
   FQDN	Fully qualified domain name (FQDN) configured for Ingress Controller. Note: You must use a unique FQDN and path prefix combination within a single cluster for the same Ingress Controller resource.
   Ingress Class Name	The Ingress class name used in the Ingress specification. Example: nginx
   Ingress Controller	Specify the type of ingress controller.

   Click Next. For more information, see Workshop link, which guides you through the installation of an Ingress Controller preparing for the provisioning of the Bare Metal Data Plane.

9. On the Configuration page, enter the following configurations.

   Field	Description
   Proxy	You can use a proxy server to route your outbound and inbound requests through the proxy server. By default, the proxy configuration is disabled.
   HTTP Proxy	A proxy URL to use for creating HTTP connections outside the data plane. The format for the HTTP proxy is: http://http_proxy:port/ Example: http://proxy.example.com:8080/
   HTTPS Proxy	A proxy URL to use for creating HTTPS connections outside the data plane. The format for the HTTPS proxy is: https://https_proxy:port/ Example: http://proxy.example.com:8084/
   No Proxy	NO_PROXY value defines a list of destination URLs to exclude from using the proxy. The format of NO_PROXY is: https://no_proxy1:port/, https://no_proxy2:port/
   Container Registry	By default, uses JFrog registry for all component Docker images.
   Registry URL	Username to access the container registry.
   Repository	Password to access the container registry.

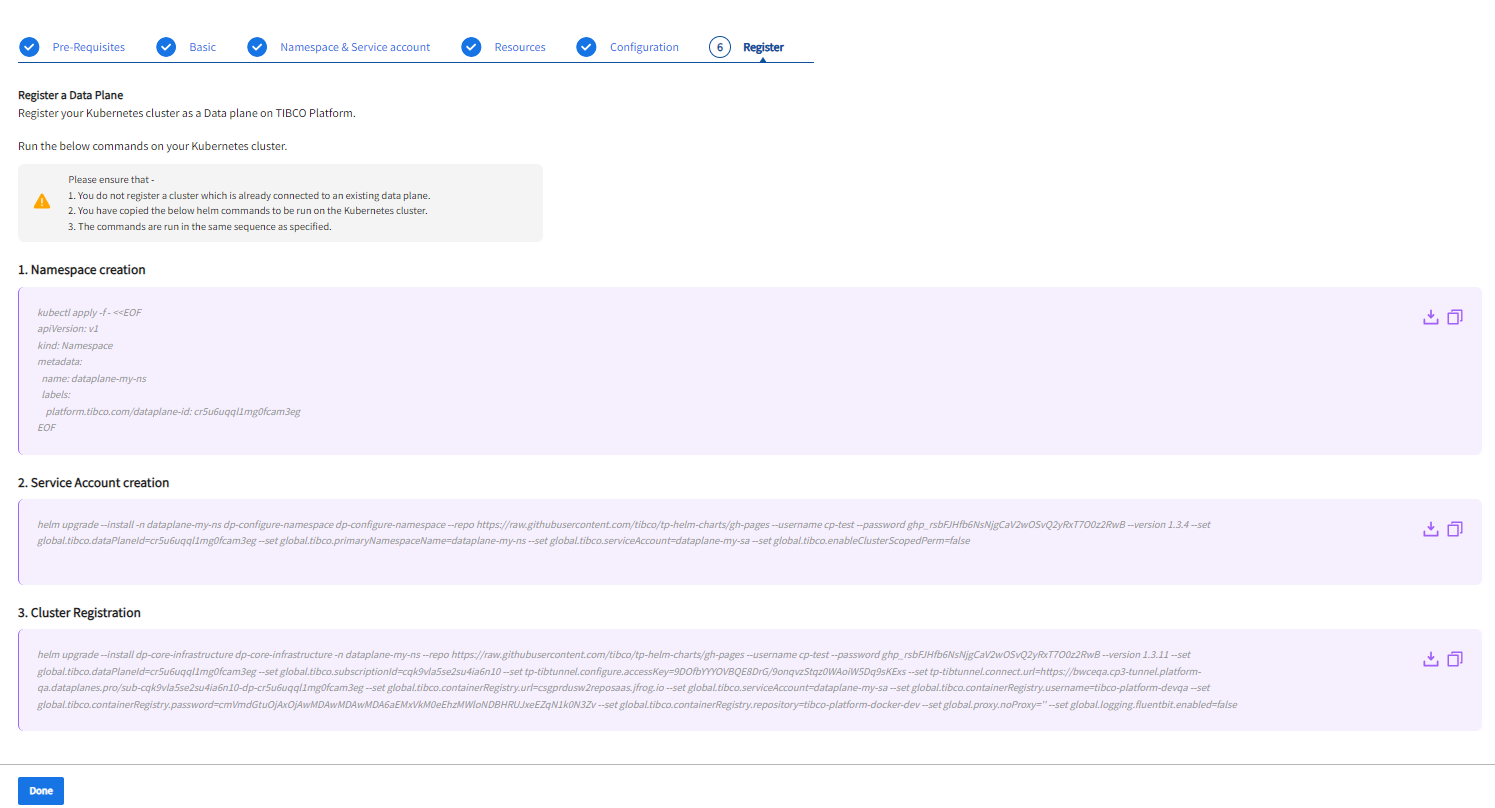

10. On the Register a Data Plane page, the helm commands for namespace creation, service account creation, and cluster registration are provided. Run the helm commands in your single micro-Kubernetes cluster in the sequence specified on the screen. It is mandatory to run all three commands whether you have an existing namespace and service account or you want to create a one. Cluster Registration command deploys TIBCO Control Plane Infrastructure components in your Kubernetes cluster, which is required to manage and monitor the data plane by using TIBCO Control Plane.



    Note: The Helm commands are unique for each data plane. Copy or download the commands before clicking Done. After you close this screen, you cannot access the Helm commands, and you need to follow the previous steps again.
