EMS Server CPU Utilization

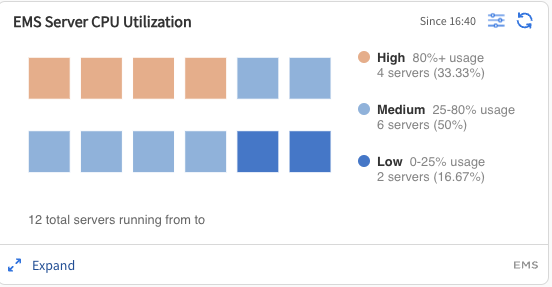

EMS Server CPU utilization card displays the average percentage CPU usage distribution of the EMS servers running in the selected time range.
EMS Server CPU Utilization Details Page

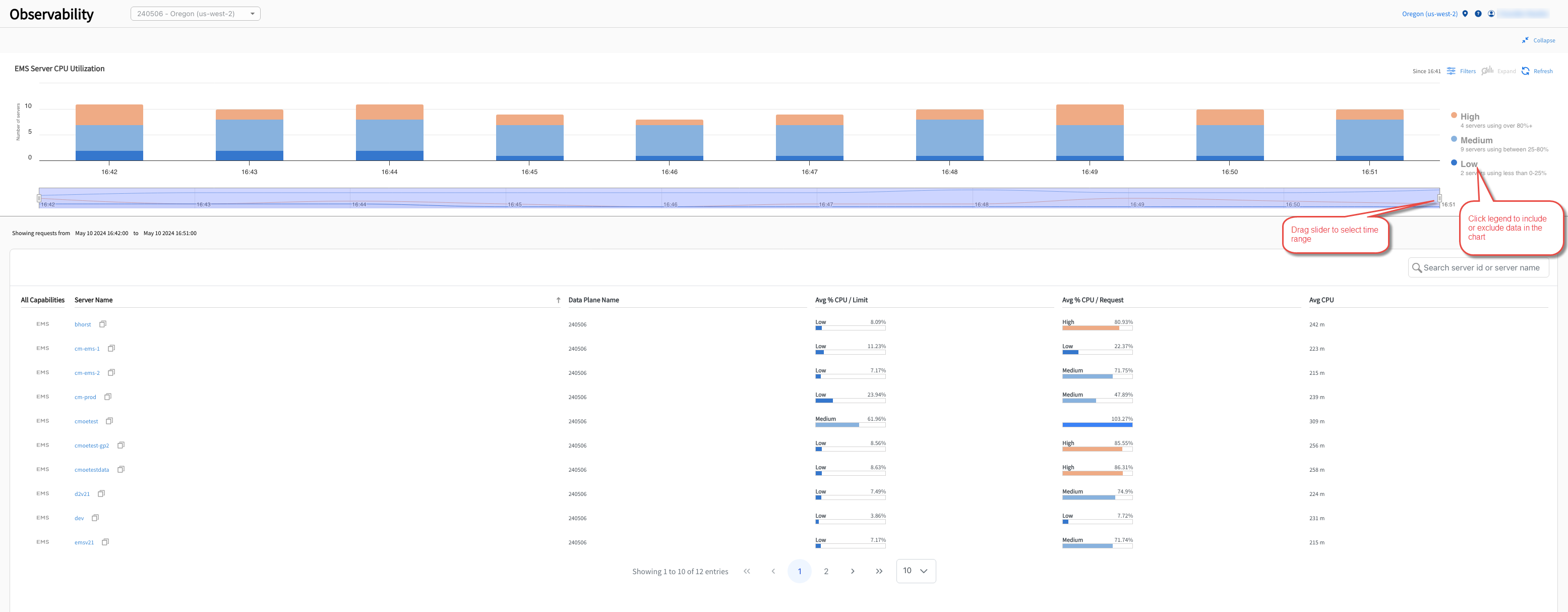

It displays a graphical view to analyze average CPU utilization by an EMS Server instance in the time period. The time graph gives an observability of the number of EMS server instances that are under CPU load recorded in the selected time window. By using the time range slider, you can narrow down to the exact participating EMS server instance in the bottom list to do further analysis of the cause of the high CPU load.
You can view the following information on the EMS Server CPU Utilization details page.
| Column | Description |
|---|---|
| All capabilities | The name of capability. |
| Server name | The name of the EMS server. Click the server name to view the server details page in a new window. |
| Data Plane name | The name of the data plane on which the EMS server is deployed. |
| Average % CPU / Limit | This is the ratio of CPU utilization and the allocated limit for the EMS server instance. |
| Average % CPU / Request | This is the ratio of CPU utilization and the allocated CPU requests for the EMS server instance. |
| Avg CPU | The overall average millicore utilized independent of the allocated limit. |
The data displayed in the table is updated based on the time range that you select in the graph.
