Registering a Control Tower Data Plane

You must register your Control Tower Data Plane before you start using the different TIBCO® Control Plane capabilities. Use the following steps to register your single micro-kubernetes cluster on the Control Tower Data Plane.

Procedure
1. In TIBCO Control Plane, click the Data Planes menu on the sidebar.
2. Click Register a Data Plane.
3. On the Control Tower Data Plane card, click Start.

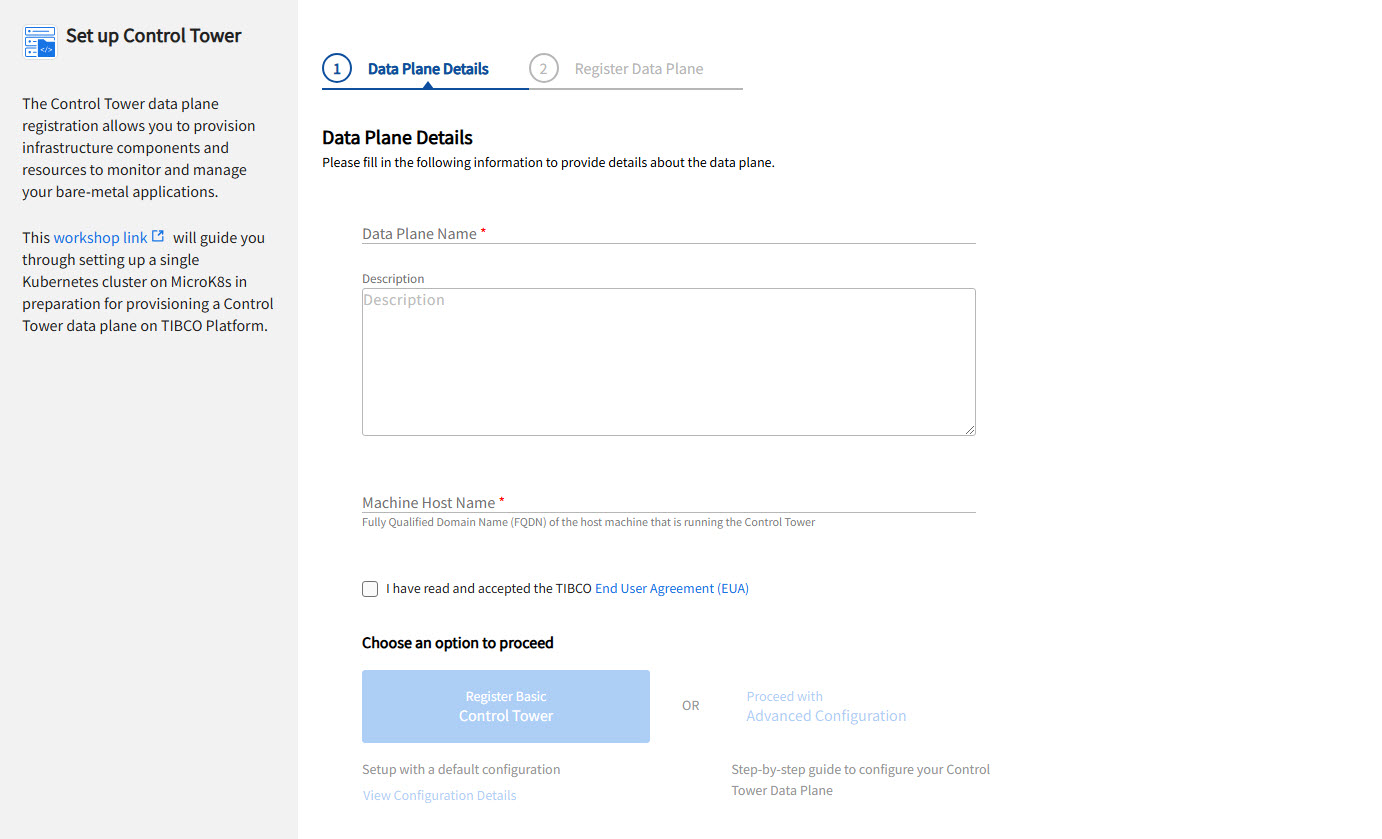

4. On the Data Plane Details screen, specify the Data Plane Name, Description, and Machine Host Name. Here, Machine Host Name is the Fully Qualified Domain Name (FQDN) of the host machine that is running the Control Tower.



5. You must select the EUA checkbox before proceeding.

6. Choose one of the following options to proceed:

   • Register Basic Control Tower: Register the data plane quickly with all default configuration.

   • Proceed with Advanced Configuration: Register the data plane by reviewing or editing all configuration options.

Registering Basic Control Tower

Procedure
1. To view default configuration, click the View Configuration Details link.
2. Click Register Basic Control Tower.

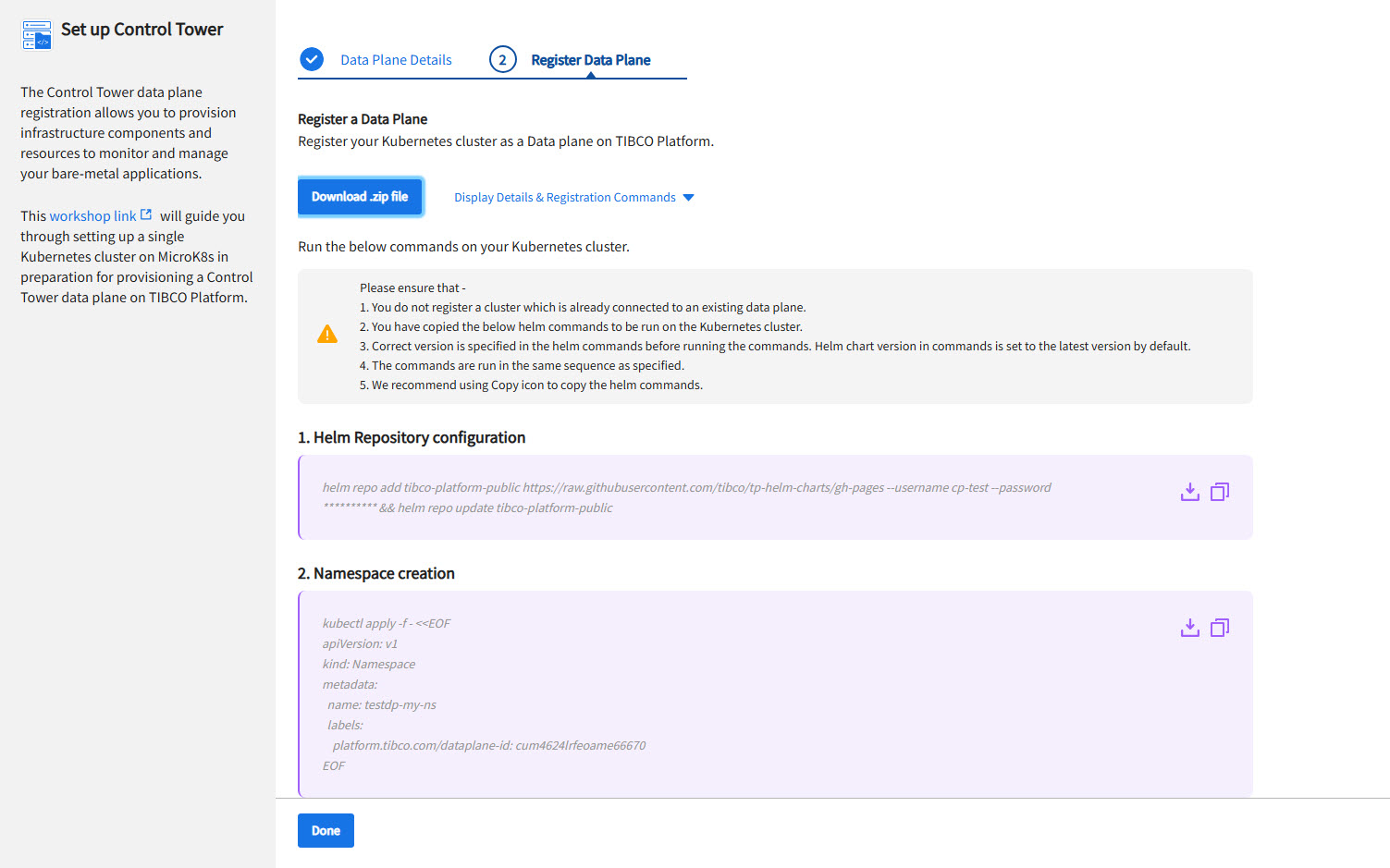

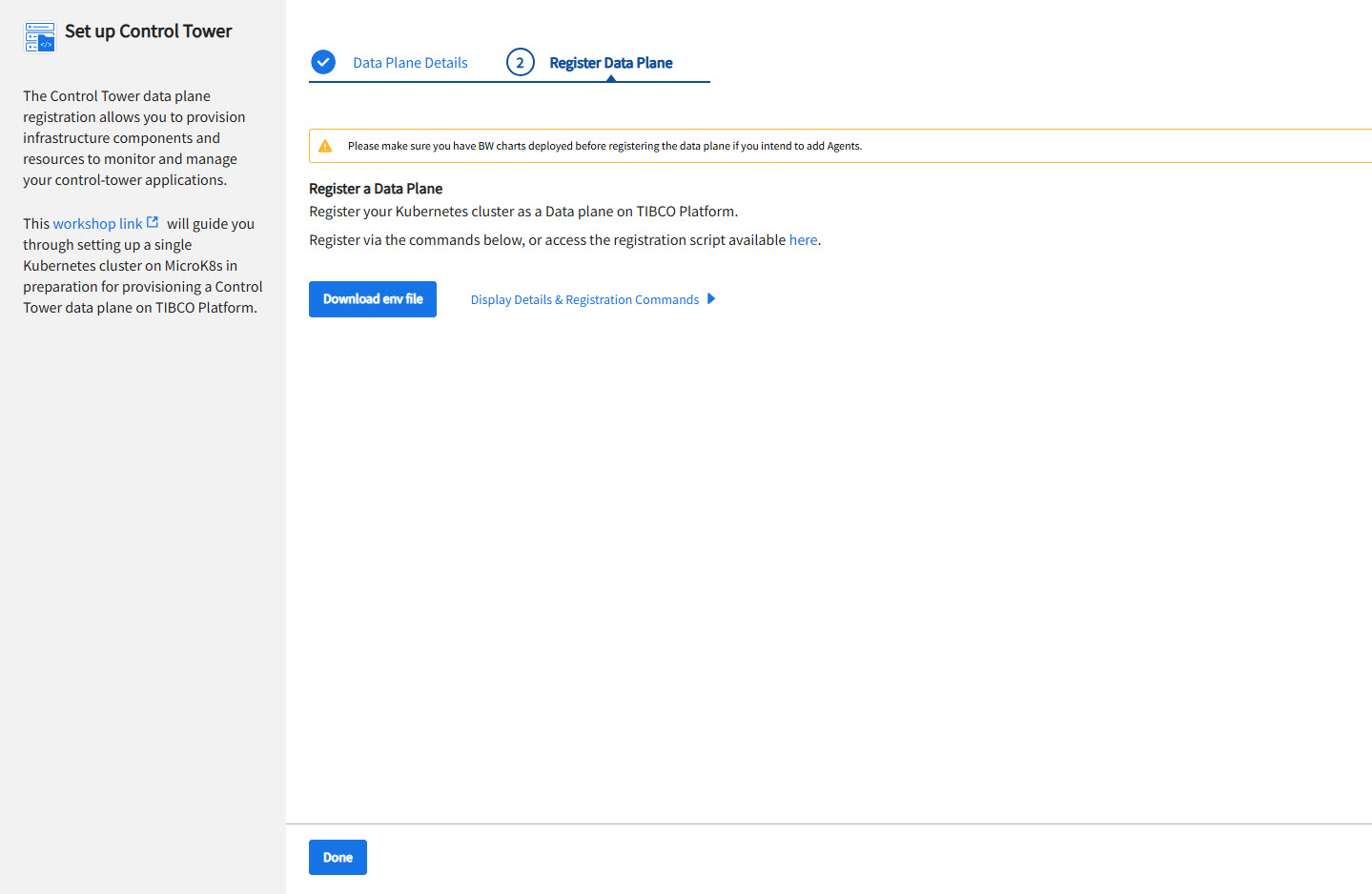

3. On the Register Data Plane page, you can either download a env file (use registration script) or display details and registration commands. You can copy and run the commands displayed on the screen in the same order specified.

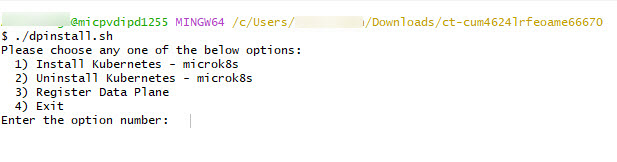

   Alternatively, you can download a env file and use script available in GitHub repository to register Control Tower data plane.



After the script has ran successfully, the data plane is registered in TIBCO Control Plane. You can verify from the Data Planes page in TIBCO Control Plane UI.

Registering Control Tower Data Plane with Advanced Configuration

Procedure
1. On the Namespace & Service account page, specify the following details.

Field	Description
Namespace	Namespace in which you want to deploy infrastructure components and capabilities. If the namespace is not already created, you can create it by running the command on the last screen of the wizard.
Service Account	Specify the Kubernetes Service account name. The service account is used when deploying infrastructure components and capabilities. If the service account is not already created, you can create it by running the command on the last screen of the wizard.
Enable or disable the cluster scope permissions for RBAC	By default, the service account has cluster-scope permissions. If you do not want service account to have cluster-scope permissions, disable the Allow cluster scope permissions option. If cluster-scoped permissions are disabled, cluster-scoped RoleBindings are not created. It creates namespace scoped Role and RoleBindings, which only apply to resources in every namespace. For more information, see Data Plane RBACs. Note: If cluster scoped permissions are disabled for data plane, ask the cluster admin to run cluster level commands. For more information, see Creating ClusterRole and ClusterRoleBinding.

2. On the Resources page, specify the details. For more information, see Managing Resources.

   Click Next. For more information, see Workshop link, which guides you through the installation of an Ingress Controller preparing for the provisioning of the Control Tower Data Plane.

3. On the Configuration page, enter the following configurations.

   Field	Description
   Proxy	You can use a proxy server to route your outbound and inbound requests through the proxy server. By default, the proxy configuration is disabled.
   HTTP Proxy	A proxy URL to use for creating HTTP connections outside the data plane. The format for the HTTP proxy is: http://http_proxy:port/ Example: http://proxy.example.com:8080/
   HTTPS Proxy	A proxy URL to use for creating HTTPS connections outside the data plane. The format for the HTTPS proxy is: https://https_proxy:port/ Example: http://proxy.example.com:8084/
   No Proxy	NO_PROXY value defines a list of destination URLs to exclude from using the proxy. The format of NO_PROXY is: https://no_proxy1:port/, https://no_proxy2:port/
   Container Registry	By default, uses JFrog registry for all component Docker images.
   Registry URL	Username to access the container registry.
   Repository	Password to access the container registry.
   Helm Chart Repository
   Global Repository	The default Helm chart repository configured at the global level is used by default for the data plane.
   Custom Helm Chart Repository	To configure a new Helm chart repository at the data plane level, click Add Helm Chart Repository to this data plane. Specify the details for the repository. For more information of the fields, see Configuring a Custom Helm Chart Repository.
   Link other/alternative Global Repository	To use a different Helm chart repository than the default one, click Link other / alternative Global Repository. Select the repository from the list.
   Custom Certificate (Optional)	You can use a custom certificate to secure the communication between TIBCO Control Plane and your data plane by providing a Kubernetes secret containing this custom certificate. For more information about how to generate and use the custom certificate, see Using Custom Certificate. This feature is applicable to self-hosted TIBCO Control Plane only. Custom certificate can be configured for new data planes created starting from TIBCO Control Plane 1.4.0.
   Custom Certificate Secret Name	Specify the custom certificate secret name.

4. Preview the configuration.

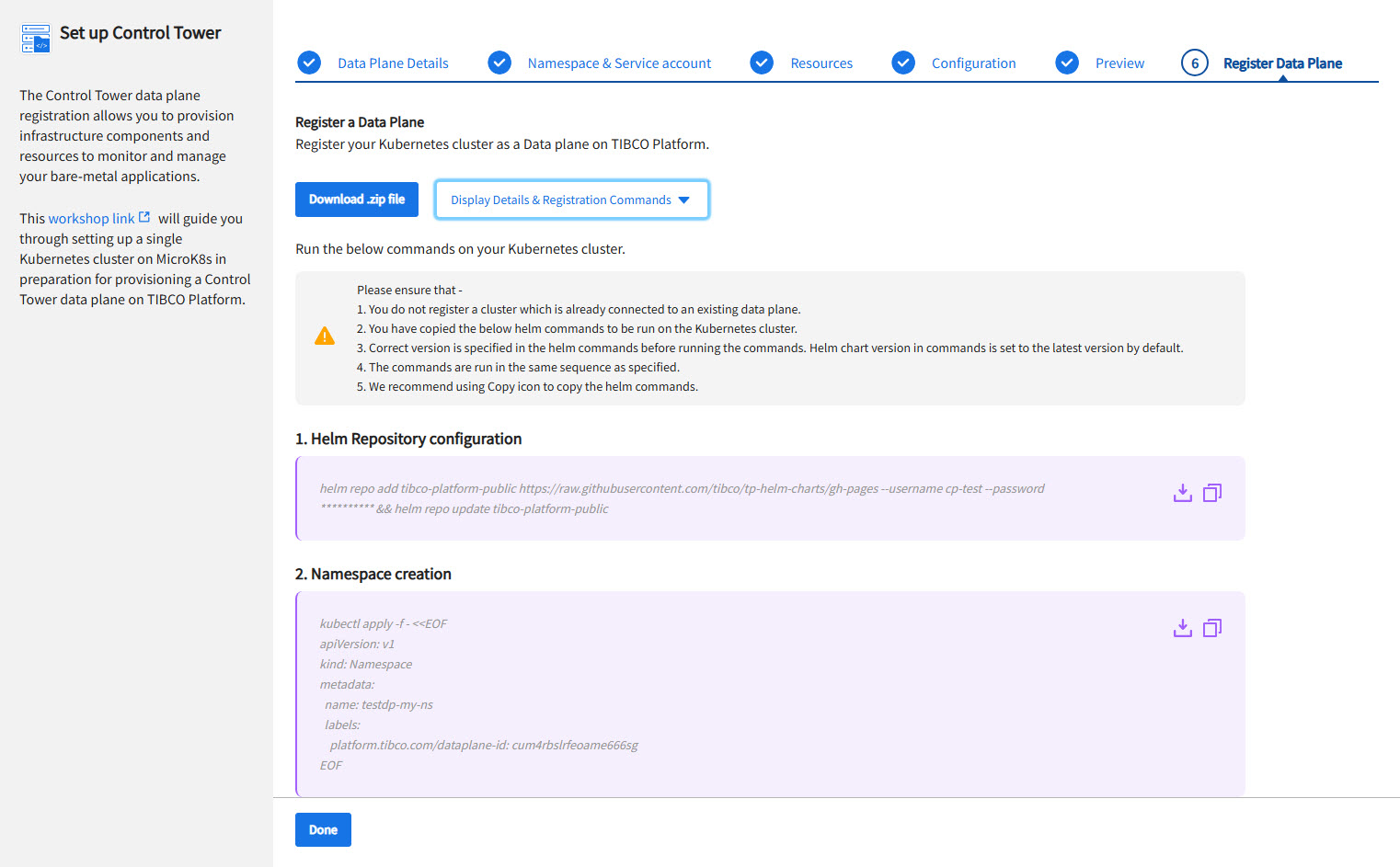

5. On the Register a Data Plane page, the helm commands for Helm repository configuration, namespace creation, service account creation, and cluster registration are provided. Run the helm commands in your single micro-Kubernetes cluster in the sequence specified on the screen. It is mandatory to run all four commands whether you have an existing namespace and service account or you want to create a one. Cluster Registration command deploys TIBCO Control Plane Infrastructure components in your Kubernetes cluster, which is required to manage and monitor the data plane by using TIBCO Control Plane.

   Alternatively, you can download a env file and use script available in GitHub repository to register Control Tower data plane.



   Note: The Helm commands are unique for each data plane. Copy or download the commands before clicking Done. After you close this screen, you cannot access the Helm commands, and you need to follow the previous steps again.
