Graphical View

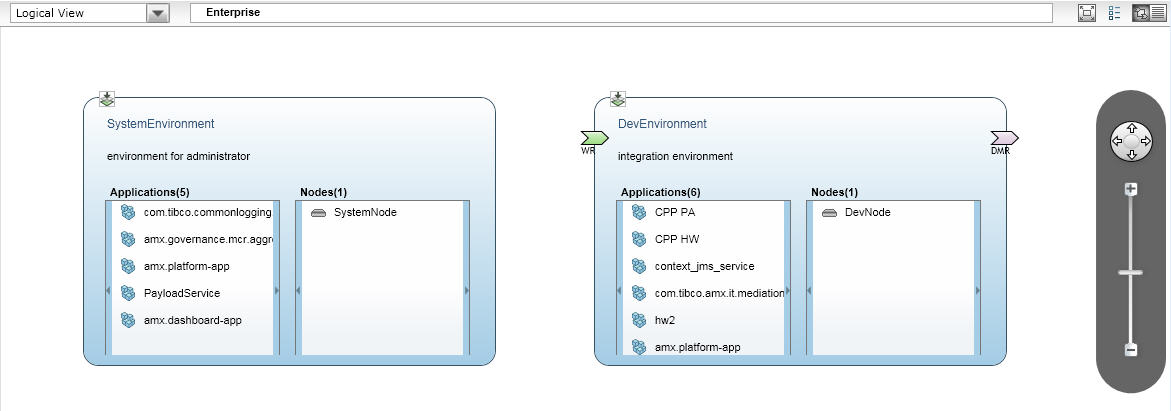

The graphical view displays Administrator objects in a graphical canvas. The graphical canvas can display a logical or physical view of the objects. The logical view displays the enterprise from the perspective of the logical administrative entities maintained by Administrator: environments and applications.

Note: Microsoft Silverlight is required to view the graphical view and the monitoring dashboards. Refer to the readme file for the supported versions.

At a higher level, the graphical view displays a wide view of your enterprise. You can zoom in on a particular object to view more details. Using the graphical view, you can visualize associations between objects in your enterprise.

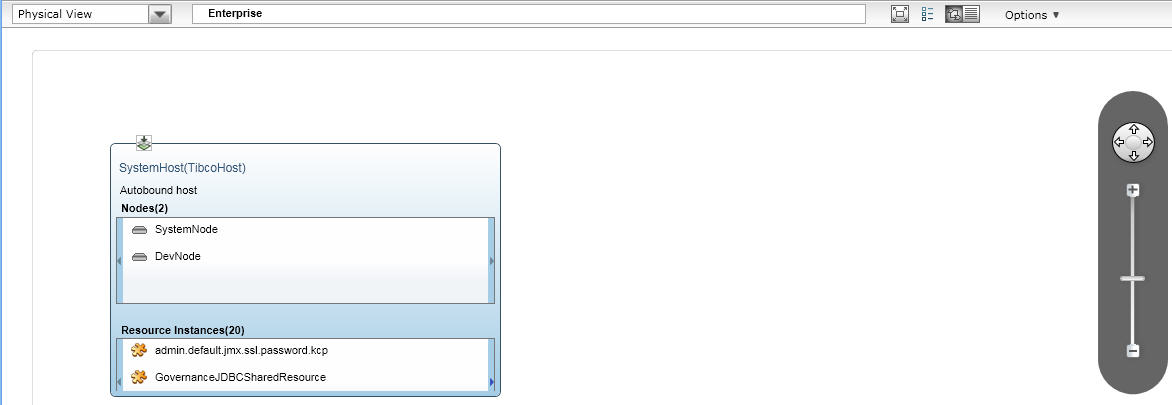

The physical view displays the enterprise from the perspective of the physical processes managed by Administrator: hosts and nodes.
