tibrvMsgData_Encoder
Function Type
Declaration
typedef tibrv_status (*tibrvMsgData_Encoder)(
char** wire_buffer,
tibrv_u32 mem_available,
tibrvMsgField* field);
Purpose
Encode a local format field to wire format.
Remarks
Programs define encoders for custom datatypes. Layer 2 encoder functions translate custom datatypes into Rendezvous wire format.
Each encoder must fulfill these responsibilities:
| • | Check that the field contains valid data of the appropriate type. |
| • | Check that the data will fit in the available space; if not, return the error status TIBRV_NO_MEMORY. |
The encoder can use tibrvMsgData_ByteSize() to compute the wire size of the data.
| • | Write the data into wire buffer of the message. Do not overwrite space that is not available. |
| • | Advance *wire_buffer to the end of the destination data (in the message). tibrvMsgData_CopyBytes() automatically advances this buffer pointer. |
| • | Check consistency, and properly address byte order and endian issues. |
|
Note |
If your encoder implementation allocates process storage, it must call tibrvMsgData_Malloc() rather than |
|
Parameter |
Description |
|
|
This parameter receives the location of an address within the wire buffer of the destination message. The encoder must write the wire-format encoded data to this destination. We strongly recommend using tibrvMsgData_CopyBytes() to transfer the data. |
|
|
This parameter receives the size of the available storage in the message’s wire buffer. |
|
|
This parameter receives a field object, with self-describing data in local format. This source field determines the data to place into the destination |

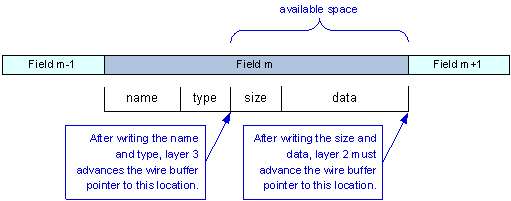

Figure 196: Advancing the Wire Buffer Pointer
