tibrvMsgData_GetBytes()

Function

Declaration

tibrv_status tibrvMsgData_GetBytes(
    char**          buffer,
    const void**    src,
    tibrv_u32*      size);

Purpose

Get data pointer and size from a wire buffer for a decoder.

Remarks

This layer 1 function helps decoders extract data from a message’s wire buffer. It does these steps (see tibrvMsgData_GetBytes):

Procedure

1.

Read the size information from the wire buffer (starting at the position *buffer) and store it in the size parameter.

2.

Store the start position of the actual data in the src parameter.

3.

Advance *buffer to point to the end of the actual data.

4.

Return.

After tibrvMsgData_GetBytes() returns, the decoder can obtain the data by copying *size bytes from the location *src.

Parameter	Description
buffer	The decoder supplies the location of an address within the wire buffer of a source message. After reading the size information, this function advances *buffer to point to the location at the end of the data.
src	The decoder supplies the location of a buffer pointer. This function stores the address of the actual data in that pointer.
size	The decoder supplies a location. This function stores the size of the actual data in that location.

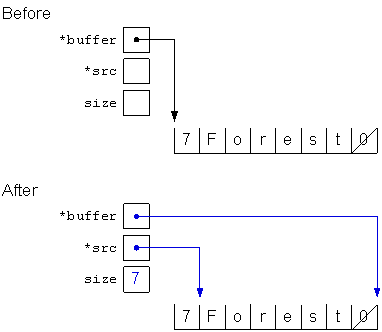

Figure 198: tibrvMsgData_GetBytes

See Also

tibrvMsgData_Decoder
