Clients
rvd displays information about its clients on this page.
To display this page, click Clients in the left margin of any page of the rvd browser administration interface.

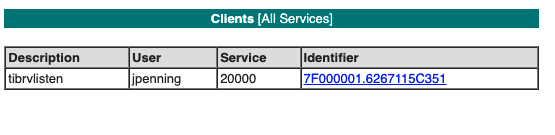

Figure 43: rvd Clients Page
|
Item |
Description |
|
table rows |
Each row of the table describes one client transport. |
|
Description |
The description string of the transport object. Client programs set this string using an API call. |
|
User |
The user name of the user that started the client program process. |
|
Service |
The UDP service on which the client transport communicates. |
|
Identifier |
A globally unique identifier for the transport object. Click this identifier to view Client Information page. |
Client Information
This page displays additional detail about a particular client transport.
To display this page, click any transport identifier in the Clients page.

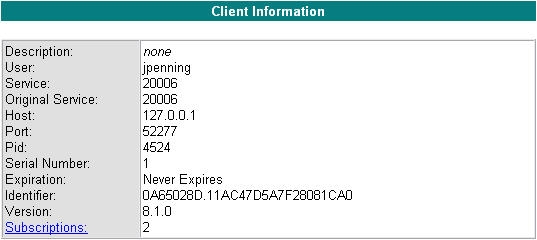

Figure 44: rvd Client Information Page
|
Item |
Description |
|
Description |
The description string of the transport object. Client programs set this string using an API call. |
|
User |
The user name string of the user that started the client program process. |
|
Service |
The UDP service on which the client transport communicates. |
|
Original Service |
Not applicable. |
|
Host |
IP address of the client’s host computer. |
|
Port |
TCP port number that the daemon uses to communicate with this client. |
|
Pid |
Process ID of the client (on its host computer). (This information requires that both client and daemon be of release 7.5 or later.) |
|
Serial Number |
Not applicable |
|
Expiration |
Not applicable. |
|
Identifier |
A globally unique identifier for the transport object. |
|
Version |
Version number of the Rendezvous API library that this client uses. |
|
Subscriptions |
Number of subscriptions that this client transport has registered with Click this link to view a list of the subscription subjects; see Subscription List. |
