Local Networks
rvrd displays information about its local networks on this page.
To display this page, click Local Networks in the left margin of any page of the rvrd browser administration interface.

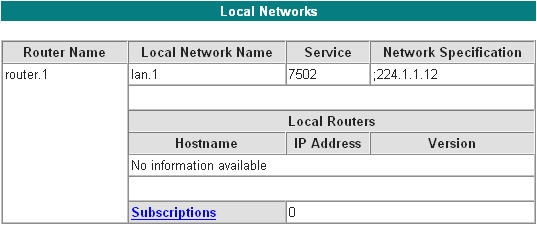

Figure 92: rvrd Local Networks Page
|
Item |
Description |
|
Router Name |
This page groups local networks by router name (routing table entry). A box in this column indicates the name of the routing table entry that serves the local networks shown to its right. See also Routing Table Entry. |
|
Local Network Name |
The name of a local network. |
|
Service |
The UDP service for communication on the local network. |
|
Network Specification |
The network specification (as specified by the routing table entry). |
|
Local Routers |
This subtable lists other routers that serve this local network. |
|
Hostname |
The name of the host computer where the other routing daemon runs. Click here to view the browser administration interface for the other routing daemon process. |
|
IP Address |
The IP address of the host computer where the other routing daemon runs. |
|
Version |
The version of the other routing daemon executable. |
|
Subscriptions |
Total number of subscriptions over all transports within the local network, for which clients have registered interest. Click this link to view a list of the subscription subjects; see Subscription List. |
