Motivation

Deploy secure daemons when clients must connect securely over a non-secure network. This section illustrates example situations involving remote clients.

rvsd

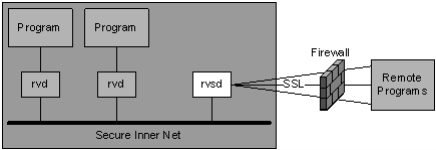

rvsd—Secure Connections across Single Firewall depicts a hub and spoke architecture. An rvsd hub runs on a firewall computer, and remote programs access the hub through secure TLS connections. This arrangement lets trusted remote programs communicate with servers and other programs inside the secure inner network. rvsd bars untrusted programs from connecting to it.

Figure 117: rvsd—Secure Connections across Single Firewall

rvsrd

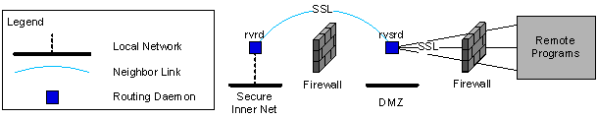

Figure 118: rvsrd—Secure Connections across Double Firewall

rvsrd—Secure Connections across Double Firewall depicts a situation with two Rendezvous routing daemons configured to cross a double firewall. Remote programs initiate secure TLS connections to a secure routing daemon hub (rvsrd) within the outer firewall (DMZ network). A secure TLS neighbor link connects that secure routing daemon with an ordinary routing daemon (rvrd) in the secure inner network.

To configure secure neighbor links, see SSL Connection with Compression.

To prevent rvsrd from multicasting client messages within the DMZ network, start rvsrd with the -no-multicast option. For background information, see Disabling Multicast.

-no-multicast is available starting with Rendezvous release 7.2. This feature replaces the following procedure, which was required in earlier releases: • Configure rvsrd so that in all of its local networks, the network specification is the loopback address (IP address 127.0.0.1). To configure, see Local Network Interfaces Configuration. • Similarly limit the access of client transports to network and service pairs in which the network is the loopback address (IP address 127.0.0.1). To configure, see Authorize Network and Service Pairs.
