Creating an Enterprise Archive

To Create an Enterprise Archive

1.	In TIBCO Designer, select a folder and find the Enterprise Archive resource.

In palette mode, this resource is in the General palette.

2.	Drag an Enterprise Archive into the design panel.

The archive is displayed in the design panel, and the configuration panel now allows you to supply information about the archive.

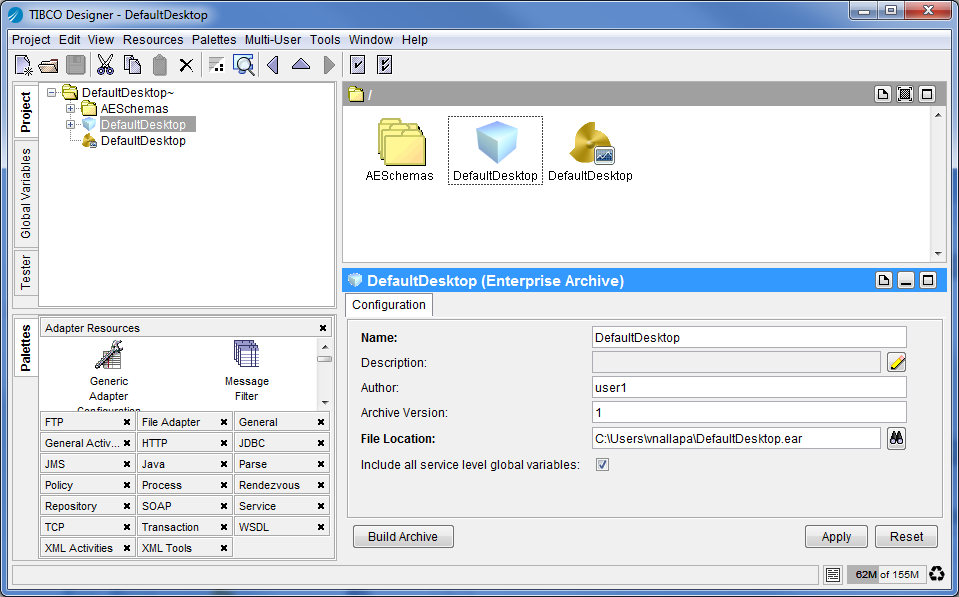

Figure 43 Adding an Enterprise Archive to Your Project

3.	Provide the following information:

Table 5 Fields in Configuration Tab

Field	Description
Name	Name of the Enterprise Archive you are creating.
Description	Description of the archive content.
Author	Person creating the archive.
Archive Version	Version of the archive. Note: The user assigns this number. TIBCO Designer does not use this number.
File Location	Location where this archive will be saved. Click Browse to select a different file location than the default. An absolute or relative path can be given. A relative path is resolved relative to the directory containing the project.
Include all service level global variables	Includes all global variables that have the Service checkbox selected. Some adapters don't properly report all their properties, so TIBCO Designer cannot tell if they are using service level global variables or not. This checkbox explicitly forces inclusion of all service-level variables.

4.	If you wish to build the archive now, you can do so by clicking the Build Archive button. When you click the button, TIBCO Designer creates an enterprise archive (.ear) file that you can then deploy from TIBCO Administrator.

Otherwise, you can add one or more Adapter Archives and Process Archives to the Enterprise Archive, then build it. See Creating an Adapter Archive and Creating a Process Archive
