Creating a Stack

Components are deployed within a stack. A stack for TIBCO Silver Fabric Enabler for TIBCO BusinessEvents normally contains a single TIBCO Administrator component or TIBCO Enterprise Administrator component, and one or more TIBCO BusinessEvents components. A stack can be created with a single component and it could be run in stand alone configurations. After creating and publishing the TIBCO Administrator or TIBCO Enterprise Administrator, and BusinessEvents components, you can create a complete stack for TIBCO Silver Fabric Enabler for TIBCO BusinessEvents.

After initially defining a stack, you can still update it by adding or removing TIBCO BusinessEvents components.

Procedure

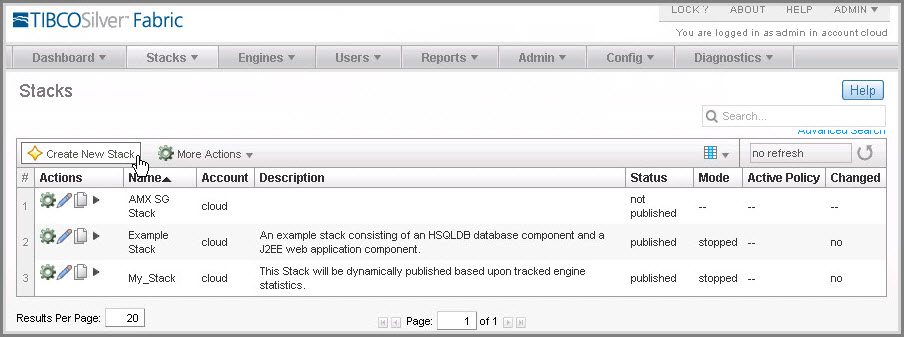

  1. In the TIBCO Silver® Fabric Administration Tool, select Stacks > Stacks.
  2. Click Create New Stack.
    Creating a Stack
  3. Enter a name for the stack in the Stack Builder page.
  4. In the Components area, add one TIBCO Administrator component and one or more TIBCO BusinessEvents components when you use BusinessEvents Deployment with TIBCO Administrator mode, or add one TIBCO Enterprise Administrator component and one or more BusinessEvents component, when you use BusinessEvents deployment with TIBCO Enterprise Administrator mode. Other components (EMS, and so on) must be added to the stack according to your implementation.
  5. In the Policies area, expand the component you just added to view the details of the component.

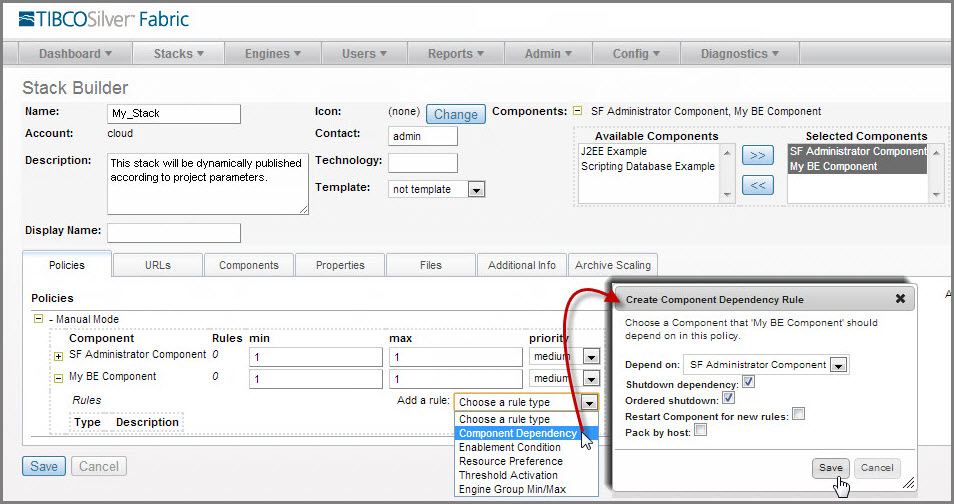

    Stack Builder Page
