Group Provider Technology for the Engine

On the enviornment configuration page if you select the Engine Persistence mode as Group or FTGroup, then you need to select the The group provider technology for the engine from the drop-down: EMS or FTL .

  • If you select EMS as the group provider technology then the EMS as the Group Provider Configuration page is displayed.

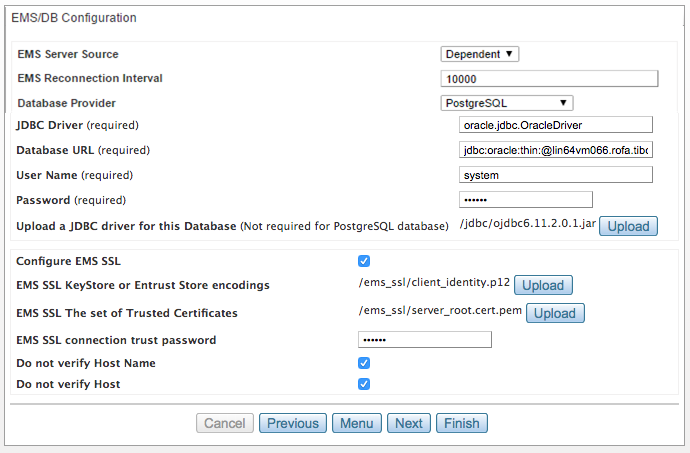

EMS as the Group Provider Configuration

If you select EMS Server Source as Dependent, then a TIBCO EMS dependent component is needed. The EMS Reconnection Interval specifies the interval, the bwagent tries to reconnect with the EMS server in case the connection is lost. The default time interval is 10 seconds, or 10000 milliseconds.

If you select the EMS Server Source as Specified from the drop-down, then you must specify the EMS Server URL , EMS User Name, EMS Password.

Also, if you select the Configure EMS SSL check box, then you upload EMS SSL KeyStore or Entrust Store encodings, EMS SSL The set of Trusted Certificates, and provide values for EMS SSL connection trust password, Do not verify Host Name, Do not verify Host

TIBCO ActiveMatrix BusinessWorks Certificates

TIBCO EMS Certificates

  • If you select FTL as the group provider technology then the FTL as the Group Provider Configuration page is displayed.

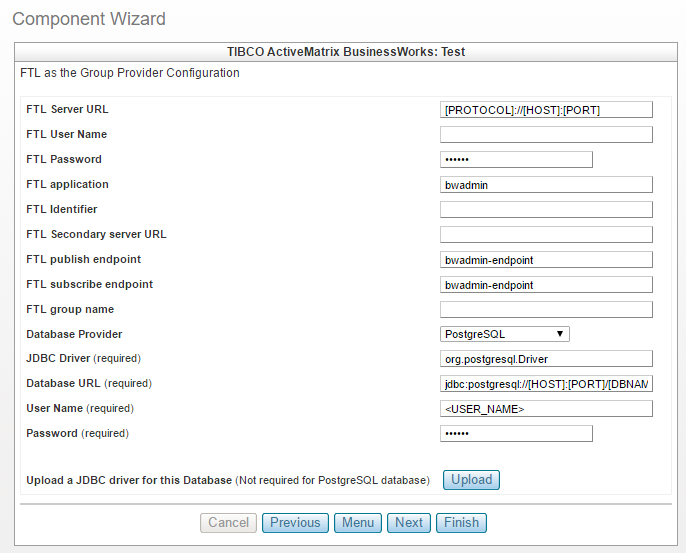

FTL as the Group Provider Configuration

Procedure

  1. Specify details such as FTL Server URL, FTL User Name, FTL Password, and so on to use the new FTL server.
  2. For the Database Provider option, select PostgreSQL, MySQL, Oracle, Microsoft SQL Server or DB2.
  3. In the Database URL field, enter the URL path of an external database.
  4. In the User Name field, enter the user name for the database.
  5. In the Password field, enter the password for the database.
  6. Unless the database provider is PostgreSQL, click Upload to upload a JDBC driver for the database.
  7. Click Next.
