The Tile Map Service (TMS) is a widely supported map protocol.
Use it to show a map background from a third party provider or to change the
default map layer.
Before you begin
To add a TMS layer,
you must have a URL to a valid TMS map.
To authenticate with an identity provider, your Spotfire environment
and the external system (the TMS service) from which you want to access data
must be configured to use your identity provider. See
Authentication with an identity provider (OAuth2) to access external systems
for more information.
Tip: You can
find many TMS resources on the internet. The article
GeoAnalytics Resources on the
Community site lists many TMS resources, both free and
paid. The lists include the complete URL, copyright text, and if available,
copyright URL to specify in the TMS layer. (The Community site is free to use;
however, you must register an account to gain access to the information.)
Procedure
-
Follow the steps in
Adding layers.
Tip: You
can reuse the settings of an already existing layer instead of adding a
completely new layer. See
Duplicating a layer for detailed
instructions.
-
From the list, click
TMS layer.
- Required:
Provide the
URL to a valid service.
Note: The URL must be
in the format
http://base/url/{z}/{x}/{y}.
{z} specifies zoom level,
{x} specifies the column number, and
{y} specifies the row number. You do not need
to provide values for the three variables
{z}/{x}/{y} for the map to work.
-
If the specified TMS service requires login, under
Authentication method select
Identity provider (OAuth).
Select your
Identity provider from the drop-down list and
specify the
Scopes. Scopes determine which permissions
Spotfire requests on your behalf when you log in to the server. Select
Default to use the scopes specified for your
identity provider in the
OAuth2IdentityProviders preference. Select
Custom to define other scopes by entering them
manually in the text box. Separate values with a space.
Click
Log in to be redirected to your identity
provider to log in.
Tip: Under
you can see all identity providers
used to log in to an external map service and whose map data is used in
visualizations. Here you can also log in again, for example, after starting a
new session. See also
Managing
external logins.
-
Optionally,
move the layer to a new position on the
list.
-
Review and update map chart properties.
Note that it is mandatory to include copyright information for
the vast majority of third-party map providers. Open the
Properties and locate the
Copyright text and
Copyright link fields. In the visualization
properties panel, the Copyright card is located on the top level for the map
chart, or in the General section if you are looking at a layer. Paste the
required copyright information in the fields. The information is then available
in the lower right corner of the map layer (either directly as text or as a
collapsed copyright icon which you can click on to expand it).

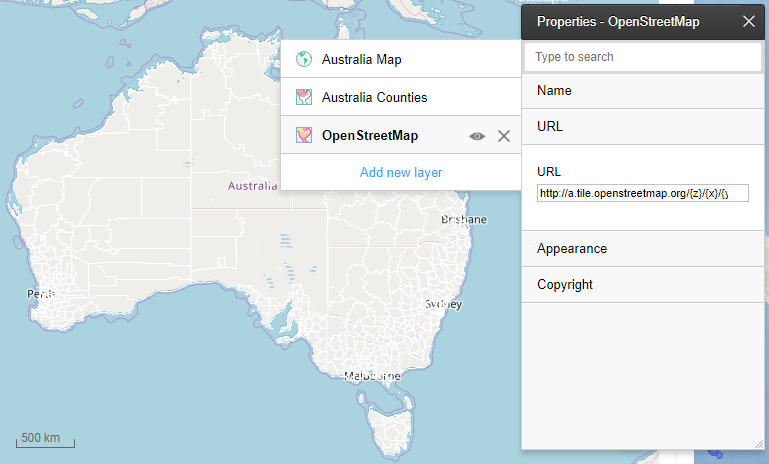

TMS layer
example
In this example, the map chart has a feature layer showing the
outlines of Australia counties on top of a TMS layer.
- The data table used in the
feature layer (Australia Counties) is available in the
geocoding data tables provided in the
library. The transparency is set to a high degree to show outline and shading.
The feature layer is the top layer of the map chart.
- The standard map layer is
removed. The TMS layer replaces the standard map.
- The TMS layer is drawn
from a map from OpenStreetMap, so the
Title property of the layer is set to
OpenStreetMap.
- The
URL is set to
http://a.tile.openstreetmap.org/{z}/{x}/{y}.png.
