Displaying actual values in the parallel coordinate plot
In the parallel coordinate plot, the values are normalized and expressed as a percentage. The percentage scale is shown to the left in the visualization. However, it is possible to also show a scale for the actual values. The scale can be displayed to the right in the visualization for one column at a time.
Procedure
On the horizontal axis in the parallel coordinate plot, click the
label for the column whose actual scale you want to show.
Example

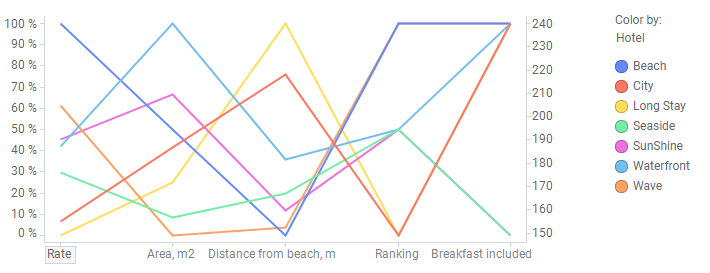

In the parallel coordinate plot below, the 'Rate' label has been clicked. The actual scale for the rates is shown to the right of the lines.

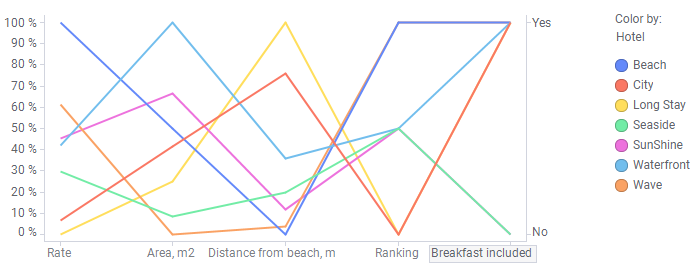

Clicking the 'Breakfast included' label instead shows the actual values in the column.
