The actual values of the data rows that are included in
visualization items (like bars in a bar chart or sectors in a pie chart) can be
viewed in the
Details-on-Demand panel.
About this task
To select which
items the row values should be displayed for, you mark them. If you mark, for
example, a bar in a bar chart, all the data rows included in that bar are
listed in

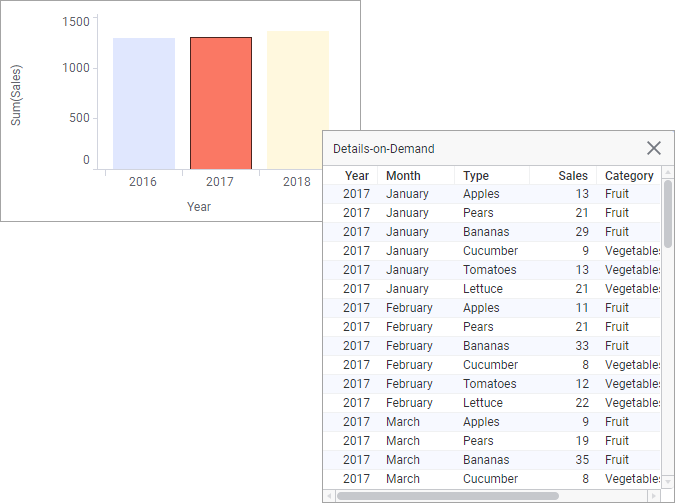

Details-on-Demand panel as shown below.
Before you begin
A visualization is
created.
Procedure
-
If the
Details-on-Demand panel is not visible, select
on the menu bar.
The
Details-on-Demand panel is shown on the
right-hand side of the page.
-
In the visualization,
mark the
items which you want to display row details for.
The data rows included in the marked items are listed in
the panel.
You can specify whether the columns should be shown side-by-side
(Vertical) in the Details-on-Demand or stacked
(Horizontal) so that each column forms a row in the
Details-on-Demand. The
Automatic option will display the result
vertically ("stacked") if a single row is marked, otherwise the columns are
oriented side-by-side.
Note: When a visualization combines data from more than one
visualization, the Details-on-Demand will show data from the
main data table only. For analyses with
multiple data tables, settings for the Details-on-Demand must be defined for
each data table.
Tip: As long as you work with imported data and you use
the Details-on-Demand to view information about more than one row, you can also
use the Details-on-Demand as a starting point when
replacing values in a data table.
