Spotfire® User Guide

Pinning items to the f(x) flyout

The f(x) flyout is used to provide easy access to commonly used data functions. As an analysis author with the Pin data functions and the f(x) flyout license feature, you can pin your own selection of data functions from the library to the flyout. You can also pin or unpin built-in data functions or tools (if you have access). An administrator can predefine selected data functions using a preference.

Before you begin

You are an analysis author with the Pin data functions license feature. If an analysis is open, it must be in Editing mode.

Procedure

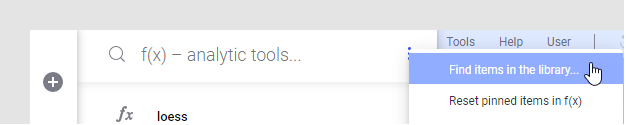

  1. Either look for tools or built-in data functions to pin under More, or, in the f(x) flyout, click the menu at the top right of the flyout and select Find items in the library.


    A search is performed against the library to show all available data functions that you can pin to the flyout (type::datafunction).
  2. If desired, you can add more information to the search expression, for example, the first letter in the name of the data function you are looking for.
    See Searching the library for more information.
  3. When you have located the item of interest, click the menu next to the item and select Pin to f(x).
    The item is pinned to the flyout. You can also pin and unpin data functions when searching the library for data functions in the Files and data flyout , either using the menu, in the details, or, using right-click.

    See also Unpinning items from the f(x) flyout.

Pinning data functions to the f(x) flyout using administrator preferences

As an administrator with access to the Administration Manager, you can pin data functions and help users in different groups finding their tools.

Before you begin

You are an administrator with access to the installed Spotfire client.

Procedure

  1. As an administrator, follow the steps above to pin or unpin data functions from your current f(x) flyout, so that the selection of data functions in your flyout is as you want it to be for the group.

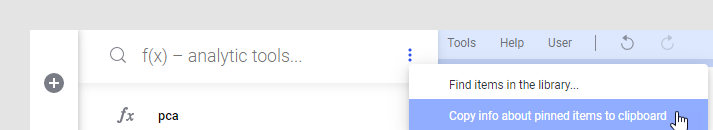

  2. When you are satisfied, in the f(x) flyout, click the menu at the top right of the flyout and select Copy info about pinned items to clipboard.


    This action copies the current layout of the f(x) flyout to the clipboard in a format that is directly suited to be pasted into the preference as described in the next steps.
  3. In the installed client, click Tools > Administration manager, and go to the Preferences tab.
  4. Select the group for which to change the preferences and, in the lower right part of the Administration Manager, click Edit.
  5. Expand DataFunctions, click DataFunctionsPreferences and, next to PinnedFunctionDefinitions, paste the previously copied string.
    See the DataFunctions preferences for more information about preferences.
  6. Click OK and Close the Administration Manager.
